ZZ-00016
Zhongzheng or as per your demand
7308900000
Hot Galvanized Railing Ball Joint Handrail and Stanchion
General Introduction
Guardrail Handrail standards can be manufacured in tubular or solid materials with varying outside diameters, tube wall thickness, ball sizes, ball types in a multiple of material grades in Mild Steel, Stainless Steel and Aluminium.
Many different heights, ball centres and tail lengths can be accommodated but to meet current regulations.

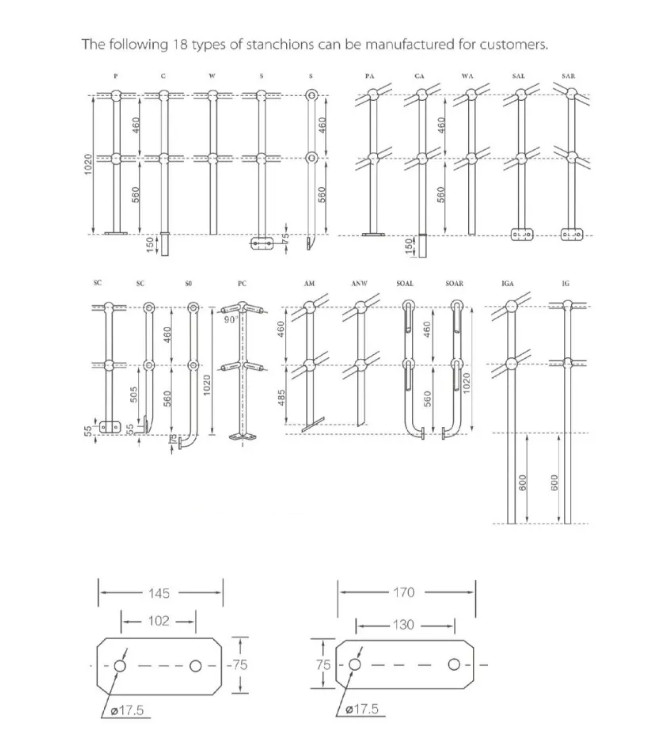

Handrail stanchions have a sleek appearance, are easy to transport and install. They are widely used in steel structure platfor-ms, ladders, and city construction projects. The stanchions can be fixed by welding or bolts. We produce various standard stanchions as well as customized ones.
Product Parameter
| Stanchion (mm) | Railing | ||
| Joint Ball Dia | Stanchion Dia | Type of Handrail | Type of Transverse Lever |
| 66 | 42.3 | 33.5*3.25((Dia.*Wall Thickness) Length=6000mm | 26.8*2.75(Dia.*Wall Thickness) Length=6000mm |
| 78 | 48 | 42.3*3.25(Dia.*Wall Thickness) Length=6000mm | 33.5*3.25(Dia.*Wall Thickness) Length=6000mm |
| 100 | 60 | 60*3.0 (Dia.*Wall Thickness) Length=6000mm | 42.3*3.25(Dia.*Wall Thickness) Length=6000mm |
· The height of a handrail above the floor or the nosing of a stair tread, shall be between 900mm and 1100mm. Where fall from height is significant it is recommended to increase the height of the guardrail to at least 1000 mm.
· Where circular metal handrails are provided, external diameter shall be 30mm to 65mm.
· Where square or rectangular handrails are provided, the sum of height and width shall be 70 mm to 100mm.
· Unrestricted movement of the user's hand along the upper surface with a minimum hand clearance of 50mm, with no sharp edges or other features that could cause injury to the user.
· Guardrailing shall consist of a top rail and a knee rail both parallel to the floor, walkway or platform. Distance between the knee rail and the floor to be ≤ 560mm. Where toeboards are used the distance between the knee rail and top of the toeboard to be ≤ 450mm
Application
Company Profile
Ningbo Zhongzheng steel grating Co. Ltd. is a professional enterprise in R & D., design, steel grating, SMC grating field. With innovative and pragmatic, scientific developing philosophy, following the criterion of ISO9001, it provides steel grating, stair tread, compound steel grating, fiberglass grating, drainage pit/trench cover, railing & stanchion, etc. It products are widely used in petroleum, chemical industry, environmental protection, power plants, pharmaceutical, printing and dyeing, brewing water supply and drainage, transportation and other industries.
With its ten years of professional management experience and production in press welding steel grating, it is one of the few enterprises who have the technology of flat steel and galvanized steel grating in the industry. The plentiful resources, skilled team, and high level of management, make it be the fastest developed, most potential grating products supplier.
Ningbo Zhongzheng steel grating Co., Ltd strictly followed the brand management of “quality making value, innovation leading the future”, to provide clients high quality assurance, drawing, mechanics calculation, data collation service. With high-quality products and services combined, it has been well recognized by clients all over the world. The products have been exported to different countries and regions, such as South Korea, Singapore, Thailand, Australia, France, Kenya, etc.
