ZZ-00003
Zhongzheng or as per your demand
7308900000

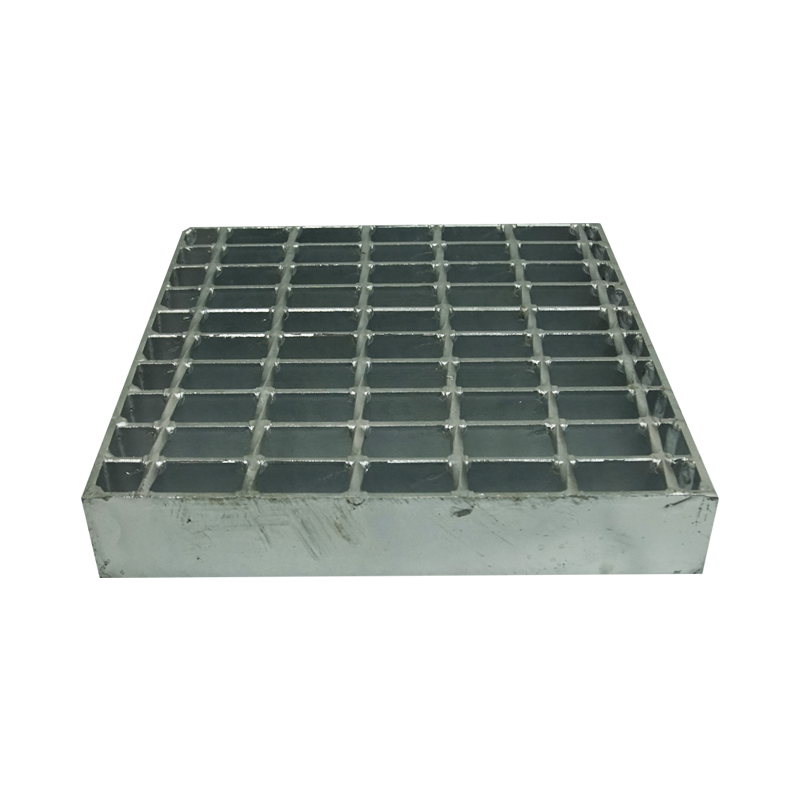

Plain/Flat Steel Grating
General Introducion
Plain steel grating, also called flat or smooth surface grating, is a type of grating made of plain steel bars. The smooth surface contrast with serrated steel grating, which has a serrated surface. plain steel grating is the most widely used grating type, which is used in almost all of the applications.
Plain steel grating can be made of carbon steel bar, aluminum steel bars and stainless steel bars. Cross bars of plain steel grating can be crimped bars, which are known as riveted steel gratings, flat square bars which are the press-locked gratings. The round bars is welded to the bearing bar is welded steel grating and the bars are placed into the pre-holes on the bearing bars to form the swage-locked grating.
· Materials: low carbon steel, stainless steel.
· Surface treatment: galvanized, powder coating, painted color.
· Standard Mesh size: 30*50mm, 30*100mm, 40*50mm, 40*100mm etc
| Table 1: Specifications of Serrated Steel Grating | |||
Bearing Bar Specification mm | Cross Bar Diamter mm | Bearing Bar Pitch mm | Cross Bar Pitch mm |
| 20*3 | 6 | 30 | 100 |
| 20*5 | 6 | 30 | 100 |
| 30*3 | 6 | 30 | 100 |
| 30*4 | 6 | 30 | 100 |
| 30*5 | 6 | 30 | 100 |
| 32*3 | 6 | 30 | 100 |
| 32*5 | 6 | 40 | 100 |
| 35*3 | 6 | 40 | 100 |
| 35*5 | 6 | 40 | 100 |
| 40*3 | 6 | 40 | 50 |
| 40*4 | 6 | 40 | 50 |
| 45*5 | 10 | 60 | 50 |
| 50*5 | 10 | 60 | 50 |
| 55*5 | 10 | 60 | 50 |
| 60*5 | 10 | 60 | 50 |
| 65*5 | 10 | 60 | 50 |
| 70*5 | 10 | 60 | 50 |
Quality Standard
Steel Grating Standard:
China YB/T4001-1998 USA ANSI/NAAMM (MBG531-88) Britain BS4592-1987 Australia AS1657-1992
Steel Standard:
China GB700-88 USA ASTM (A36) Britain BS4306 (43A)
Hot Dip Galvanizing Standard:
China GB/T13912-92 USA ASTM (A123) Britain BS729
Applications of plain/flat steel grating
· Serrated steel grating features outstanding slip resistance, it is widely used in the environments filled with water, oil and other elements may cause slipping.
· It is widely used as stair tread grating to secure pedestrians safely go up and down.
· The serrated steel grating is widely used as platform walkway grating in pedestrian street, balcony and factories for anti-slip application.
· The serrated steel grating can be installed on the drainage and trench as drainage trench cover to drain water and keep ground dry.
Packaging:
Strap packing: Generally used for neat press locked steel grating.
Pallet packing: Generally for the press-locked steel grating which need to export and load in container.
Screw rod fixation: Use four screw rods through the mesh and fixed with screws.
Company Profile
Ningbo Zhongzheng steel grating Co. Ltd. is a professional enterprise in R & D., design, steel grating, SMC grating field. With innovative and pragmatic, scientific developing philosophy, following the criterion of ISO9001, it provides steel grating, stair tread, compound steel grating, fiberglass grating, drainage pit/trench cover, railing & stanchion, etc. It products are widely used in petroleum, chemical industry, environmental protection, power plants, pharmaceutical, printing and dyeing, brewing water supply and drainage, transportation and other industries.
With its ten years of professional management experience and production in press welding steel grating, it is one of the few enterprises who have the technology of flat steel and galvanized steel grating in the industry. The plentiful resources, skilled team, and high level of management, make it be the fastest developed, most potential grating products supplier.
Ningbo Zhongzheng steel grating Co., Ltd strictly followed the brand management of "quality making value, innovation leading the future", to provide clients high quality assurance, drawing, mechanics calculation, data collation service. With high-quality products and services combined, it has been well recognized by clients all over the world. The products have been exported to different countries and regions, such as South Korea, Singapore, Thailand, Australia, France, Kenya, etc.
WEBSITE: WWW.CNSTELLGRATING.COM
SALES DEPT. FOREIGN BUSINESS:
TEL.: 86-574 8388 8317
FAX: 86-574 8388 8317
ATTN.: Bruce
