Pultruded FRP Beam I

Availability:
  • ZZ-00041
  • Zhongzheng or as per your demand
  • 3916909000

                                                                                               Pultruded FRP Beam I

General Introduction
Pultruded FRP beam I are manufactured from glass reinforced isophthalic polyester resin with E glass fibre, suitable for heavily industrial applications due to their extremely high load bearing capabilities. Sold in 6 metre lengths.

FRP/GRP beams have excellent bearing capacity and they are widely used in bridges, roof bracing structures and industrial platforms.


Beam I Specification

Legend

Beam I

Dimension(mm)

A*b*T1*T2

Weight(kg/m)

Beam I

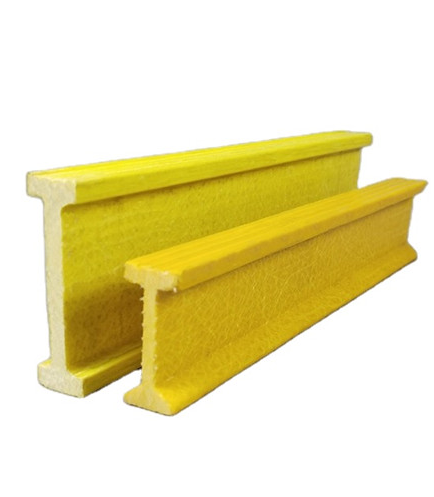

QQ图片20210811102041




IB25 15*25*6.4*4.0 0.40
IB32 15*32*6.4*4.0 0.44
IB38A
15*38*4.0*6.4 0.51
IB38B 15*38*3.0*3.0 0.53
IB45A 45*180*12.0*9.0 5.20
IB45B 45*180*12.7*12.7 6.00
IB50A 50*102*6.4*6.4 2.40
IB50B
50*102*8.0*8.0 3.00
IB60B 60*180*6.4*6.4 3.60
IB76A 76*152*6.4*6.4 3.59
IB76B 76*152*9.5*9.5 5.32
IB102A 102*203*9.5*9.5 7.20
IB102B 102*203*12.7*12.7 9.50
IB120 120*240*12*12 10.50
IB127A 127*254*9.5*9.5 9.00
IB127B 127*254*12.7*12.7 11.90
IB127C 127*152*9.5*9.5 7.10
IB127D 127*152*12.7*12.7 9.20
IB152A 152*305*9.5*9.5 10.74
IB152B 152*305*12.7*12.7 14.30



Features

  • Good bearing capacity.

  • Superior shear and bending capacity.

  • Easy fabrication.

  • Corrosion resistance.

  • Anti-slipping performance.

  • Lightweight.

  • Wide range of applications.

  • Good looking, corrosion-resistant.

  • Free maintenance, fire retardant, anti-UV.

  • Excellent insulation, magnetic permeability.

  • Any color, length, and specification.


Pultrusion Technique
Pultrusion is a continuous process using fiber reinforcements with thermosetting resin matrices. Pre-selected reinforcement materials, such as fiberglass roving, mat, woven fabrics or stitched fabric, are drawn through a resin bath in which all material is thorougly impregnated with a liquid thermosetting resin. Typical resins include polyesters, vinyl esters and phenolics. The wet-out fiber is formed to the desired geometric shape and pulled into a heated steel die. Once inside the die, the resin cure is initiated by controlling precise elevated temperature. The laminate solidifies in the exact cavity shape of the die, as it is continuously pulled by the pultrusion machine. Most any constant cross-section part can be pultruded.

Pultrusion Process
process_meitu_1
Application

  • Beam structure of bridge.

  • Roof support structure.

  • Industrial platform.

  • FRP/GRP beam support stair.

  • Cooling tower structure.

  • Variety of cable management systems and support.

  • Grating structure component.

  • Platforms and walkways where non electrical and thermal insulating properties are required.



Company Profile
Ningbo Zhongzheng steel grating Co. Ltd. is a professional enterprise in R & D., design, steel grating, SMC grating field. With innovative and pragmatic, scientific developing philosophy, following the criterion of ISO9001, it provides steel grating, stair tread, compound steel grating, fiberglass grating, drainage pit/trench cover, railing & stanchion, etc. It products are widely used in petroleum, chemical industry, environmental protection, power plants, pharmaceutical, printing and dyeing, brewing water supply and drainage, transportation and other industries.
With its ten years of professional management experience and production in press welding steel grating, it is one of the few enterprises who have the technology of flat steel and galvanized steel grating in the industry. The plentiful resources, skilled team, and high level of management, make it be the fastest developed, most potential grating products supplier.
Ningbo Zhongzheng steel grating Co., Ltd strictly followed the brand management of "quality making value, innovation leading the future", to provide clients high quality assurance, drawing, mechanics calculation, data collation service. With high-quality products and services combined, it has been well recognized by clients all over the world. The products have been exported to different countries and regions, such as South Korea, Singapore, Thailand, Australia, France, Kenya, etc.
