Pultruded FRP Channel C

Availability:
  • ZZ-00033
  • Zhongzheng or as per your demand
  • 3916909000

                                                  Pultruded FRP Channel C
General Introduction

FRP C Profile is one of Pultruded FRP profiles, they are with the constant cross-section structure by a continuous pultrusion process using fiberglass reinforcements with thermosetting resin matrixes. We are offering wide range of pultrusion products for the pultrusion process.


Specifications

Lengend Specification Weight(kg/m) Specification Weight(kg/m) Specification Weight(kg/m)
QQ图片20210810112108 18*10*2.5 0.16 20*15 0.39 50*32*5 0.98
55*25*3.5 0.61 55*28*4 0.79 63*30*3 0.65
70*30*3.8 0.87 70*30*4.5 1.02 80*30*3.5 0.87
80*25*3 0.67 80*30*4.5 1.1 84*30*3.8*4.5 1.02
94.5*20*2.8 0.67 100*65*4.6 1.83 180*50*6 2.85
180*50*8 4.05 200*100*4.6 3.35 210*30*4.6 2.26
300*150*5.6 6.43 312*50*5.6 4.26 810*20*5 8.38


Advantages

  • High strength

  • Corrosion resistance

  • Lightweight

  • Rust and rot proof

  • Non Conductive

  • Fire retardant


Pultrusion Technique
Pultrusion is a continuous process using fiber reinforcements with thermosetting resin matrices. Pre-selected reinforcement materials, such as fiberglass roving, mat, woven fabrics or stitched fabric, are drawn through a resin bath in which all material is thorougly impregnated with a liquid thermosetting resin. Typical resins include polyesters, vinyl esters and phenolics. The wet-out fiber is formed to the desired geometric shape and pulled into a heated steel die. Once inside the die, the resin cure is initiated by controlling precise elevated temperature. The laminate solidifies in the exact cavity shape of the die, as it is continuously pulled by the pultrusion machine. Most any constant cross-section part can be pultruded.

Pultrusion Process

process_meitu_1

Properties of pultrusion profiles
1. Corrosion resistant
2. Light weight and high strength
3. Anti-ageing
4. Easy maintenance
5. Excellent electromagnetism property
6. Excellent insulation property

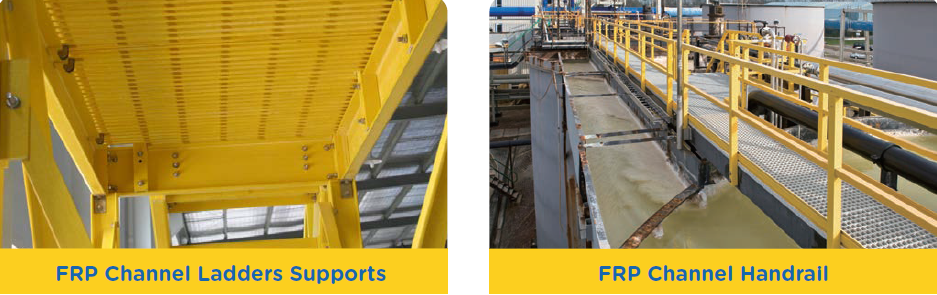

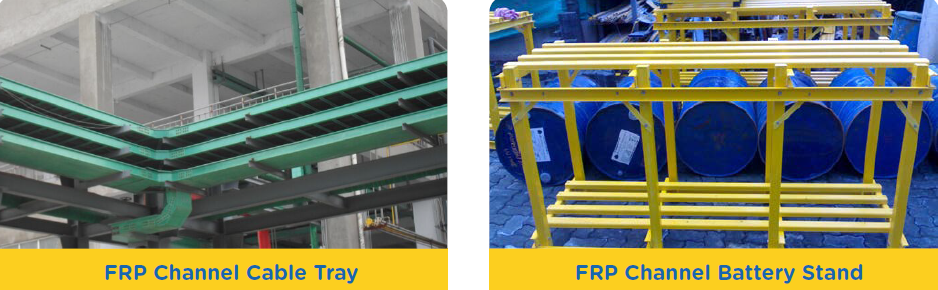

Applications

  • Ladder supports

  • Handrails

  • FRP battery stands

  • Cable tray

937 225

QQ图片20210810113639
