ZZ-000040
Zhongzheng or as per your demand
3916909000
General Introduction
Pultruded Solid Fiberglass Rod is a composite material with unique characteristics making it useful in a wide variety of applications.
Most rods are composed of polyester resin and fiberglass. These composites can be formed into practically any shape by using the pultrusion process.
FRP Pultrusion Rod can be manufactured in several standard, stocked grades or developed as a custom pultrusion.
Through the pultrusion process, it is possible to vary the resin system and enhance the glass content properties in order to meet a wide range of demanding requirements for specific designs and applications. This flexibility with the resin mix makes pultrusion material easier to work with, longer lasting and a safer product for the end user than other materials. The composite matrices determine the characteristics of each grade.
Because pultrusion material is lightweight and strong, it is often much more efficient than steel, aluminum or structural timber. Pultrusion is up to 75% lighter than steel but just as strong.
Features
Corrosion resistant
Non-conductive (thermally & electrically)
Lightweight
High-strenth
Non-magnetic electromagnetic transparency
Dimensional stability
Long life cycle
Lower long-term cost
Low maintenance
Specifications
| Lengend | Model | Dimension(mm) | Weight(kg/m) |
| Solid Round Rod SRR60 | 6.0 | 0.08 |
| Solid Round Rod SRR95 | 9.5 | 0.14 | |
| Solid Round Rod SRR127 | 12.7 | 0.26 | |
| Solid Round Rod SRR254 | 25.4 | 1.00 | |
| Solid Round Rod SRR328 | 31.8 | 1.51 | |
| Solid Round Rod SRR380 | 38.0 | 2.15 | |
| Solid Round Rod SRR42 | 4.2 | 0.03 | |
| Solid Round Rod SRR80 | 8.0 | 0.10 | |
| Solid Round Rod SRR16 | 16 | 0.41 | |
| Solid Round Rod SRR19 | 19 | 0.55 | |
| Solid Round Rod SRR20 | 20 | 0.62 | |
| Solid Round Rod SRR22 | 22 | 0.72 |

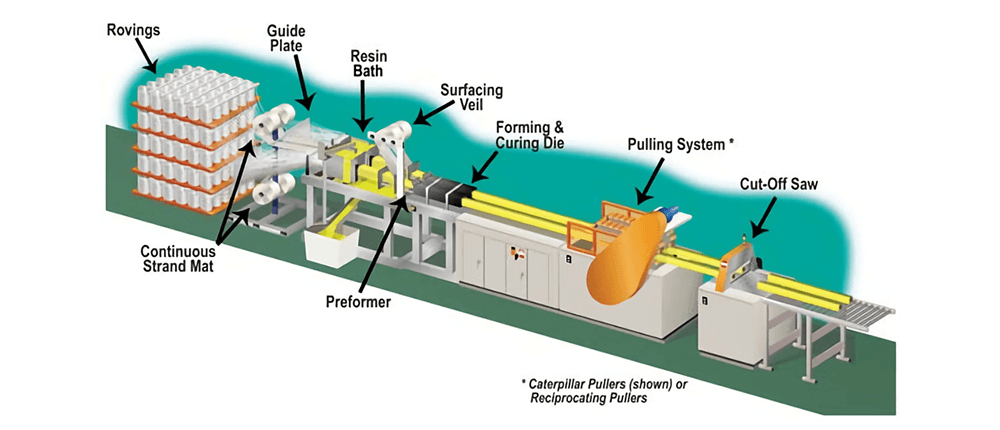

Pultrusion Process
Dry Type Transformer Spacers
Snow Poles
Flag Sticks
Yard Markers
Axels
Gripper Rods
Tool Handles
Utility Poles
Marketing Sign Poles
Golf Flags
Motor Wedges
Awning Stiffeners
Oil Field Sucker Rods
Sports Equipment
Tent Poles
Fence Post Stiffeners
Standoff Insulators
Company Profile
Ningbo Zhongzheng steel grating Co. Ltd. is a professional enterprise in R & D., design, steel grating, SMC grating field. With innovative and pragmatic, scientific developing philosophy, following the criterion of ISO9001, it provides steel grating, stair tread, compound steel grating, fiberglass grating, drainage pit/trench cover, railing & stanchion, etc. It products are widely used in petroleum, chemical industry, environmental protection, power plants, pharmaceutical, printing and dyeing, brewing water supply and drainage, transportation and other industries.
With its ten years of professional management experience and production in press welding steel grating, it is one of the few enterprises who have the technology of flat steel and galvanized steel grating in the industry. The plentiful resources, skilled team, and high level of management, make it be the fastest developed, most potential grating products supplier.
Ningbo Zhongzheng steel grating Co., Ltd strictly followed the brand management of "quality making value, innovation leading the future", to provide clients high quality assurance, drawing, mechanics calculation, data collation service. With high-quality products and services combined, it has been well recognized by clients all over the world. The products have been exported to different countries and regions, such as South Korea, Singapore, Thailand, Australia, France, Kenya, etc.
WEBSITE: WWW.CNSTELLGRATING.COM
SALES DEPT. FOREIGN BUSINESS:
TEL.: 86-574 8388 8317
FAX: 86-574 8388 8317
ATTN.: Bruce
