ZZ-000035
Zhongzheng or as per your demand
3916909000
General Introduction
Pultruded T-bar/I -bar Grating can supply heavier loads and longer spans than comparably sized molded FRP Grating.
I bar, T bar or High-Load bars are supplied for demanding applications ranging from ADA-compliant walkways to heavy duty vehicle traffic decking.

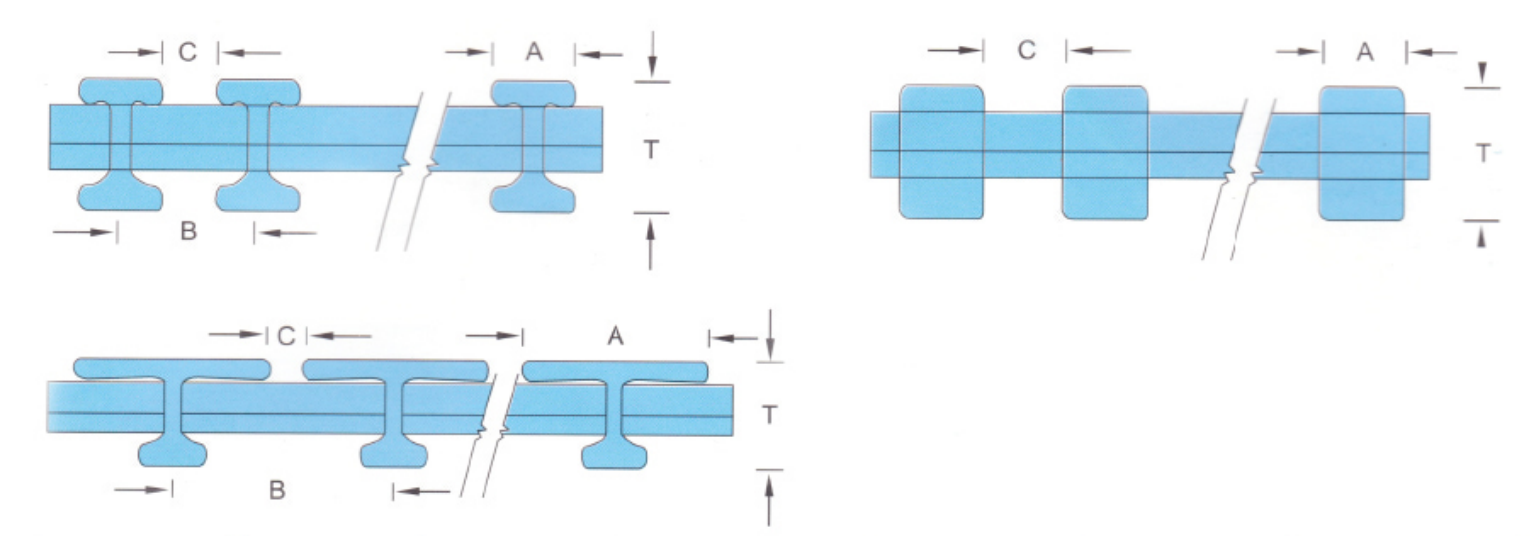

T-bar/I-bar Grating Specification
| Type | Height (mm) | Top Edge Width(mm) | Space Between (mm) | Clearance Width (mm) | Open Area (%) | Estimated Weight kg/m2 |
| I-4010 | 25 | 15 | 25 | 10 | 40 | 17.8 |
| I-5010 | 25 | 15 | 30 | 15 | 50 | 15.1 |
| I-6010A | 25 | 15 | 38 | 23 | 60 | 12.2 |
| I-6010B | 25 | 8 | 19.8 | 11.8 | 60 | 13.7 |
| I-4015 | 38 | 15 | 25 | 10 | 40 | 22 |
| I-5015 | 38 | 8 | 30 | 15 | 50 | 19.1 |
| I-6015 | 38 | 15 | 38 | 23 | 60 | 16.2 |
| I-4012 | 30 | 15 | 25 | 10 | 40 | 19.1 |
| I-5012 | 30 | 15 | 30 | 15 | 50 | 16.1 |
| I-6012 | 30 | 15 | 38 | 23 | 60 | 13.1 |
| I-40125 | 32 | 15 | 25 | 10 | 40 | 19.8 |
| I-50125 | 32 | 15 | 30 | 15 | 50 | 17.4 |
| I-60125 | 32 | 15 | 38 | 23 | 60 | 13.5 |
| I-4020 | 50 | 15 | 25 | 10 | 40 | 28.5 |
| I-5020 | 50 | 15 | 30 | 15 | 50 | 24.2 |
| I-6020 | 50 | 15 | 38 | 23 | 60 | 20.1 |
| T-1210 | 25 | 38 | 43.4 | 5.4 | 12 | 17.9 |
| T-1810 | 25 | 38 | 50.8 | 9.5 | 18 | 13.8 |
| T-2510 | 25 | 38 | 50.8 | 12.7 | 25 | 13.6 |
| T-3310 | 25 | 41.3 | 19.7 | 61 | 33 | 11.2 |
| T-3810 | 25 | 38 | 61 | 23 | 38 | 11.8 |
| T-1215 | 38 | 38 | 43.3 | 5.2 | 12 | 19.6 |
| T-2515 | 50 | 38 | 50.8 | 12.7 | 25 | 16.7 |
| T-3815 | 50 | 38 | 61 | 23 | 38 | 14.2 |
| T-3320 | 50 | 25.4 | 38.1 | 12.7 | 33 | 21.7 |
| T-5020 | 50 | 25.4 | 50.8 | 25.4 | 50 | 17.2 |
| HL-4020 | 50 | 15 | 10 | 10 | 40 | 62.8 |
| HL-5020 | 50 | 15 | 15 | 15 | 50 | 52.2 |
| HL-6020 | 50 | 15 | 23 | 23 | 60 | 43.5 |
Features
Higher loads.
Lightweight.
Anti-slipping.
Flame retardant.
Corrosion resistance.
Extended life.
Easy fabrication.
Stability.

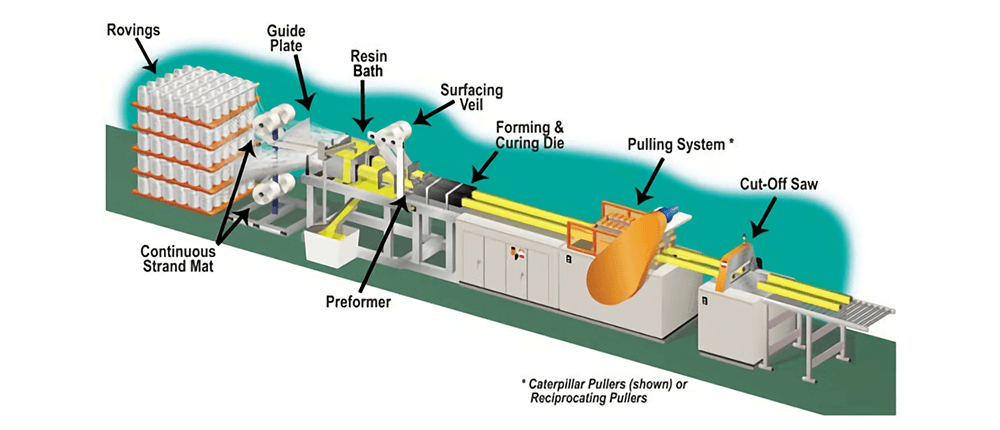

Pultrusion Process

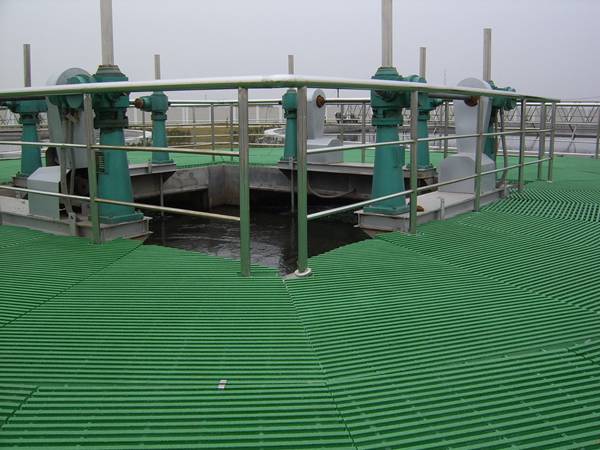

Platform.

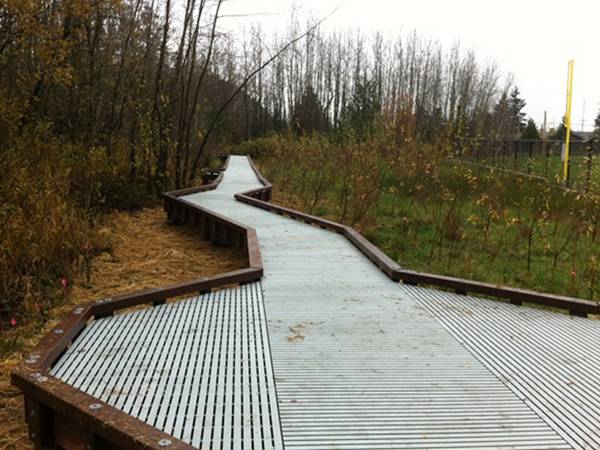

Walkway.

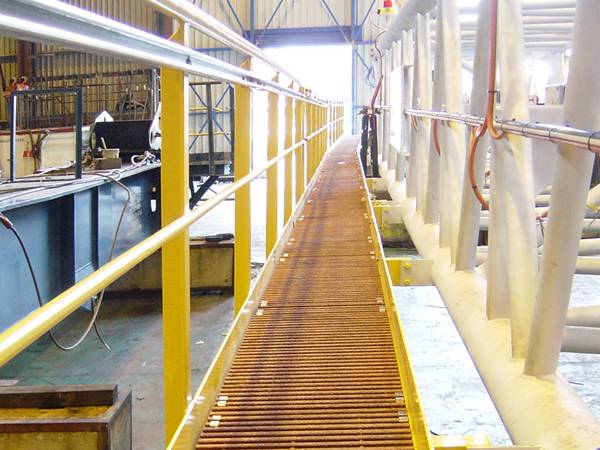

Catwalk.

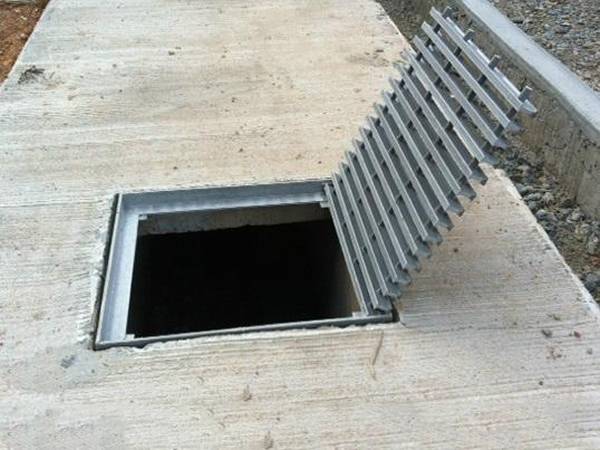

Trench cover.

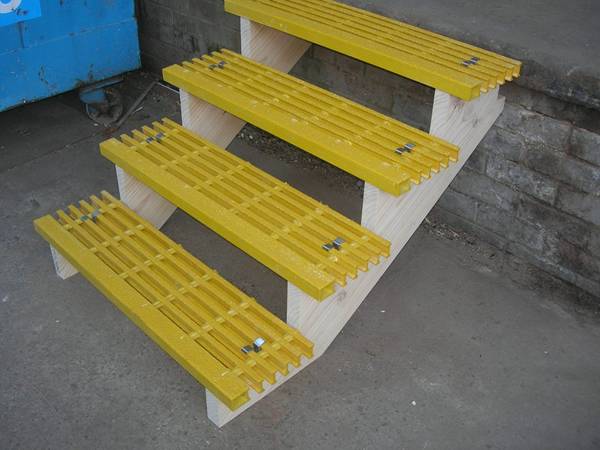

Stair treads.
Security fence.
Boat deck.

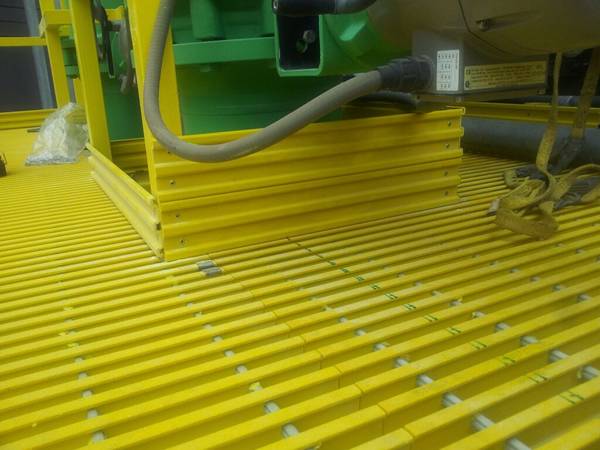

Transformer grating.
Company Profile
Ningbo Zhongzheng steel grating Co. Ltd. is a professional enterprise in R & D., design, steel grating, SMC grating field. With innovative and pragmatic, scientific developing philosophy, following the criterion of ISO9001, it provides steel grating, stair tread, compound steel grating, fiberglass grating, drainage pit/trench cover, railing & stanchion, etc. It products are widely used in petroleum, chemical industry, environmental protection, power plants, pharmaceutical, printing and dyeing, brewing water supply and drainage, transportation and other industries.
With its ten years of professional management experience and production in press welding steel grating, it is one of the few enterprises who have the technology of flat steel and galvanized steel grating in the industry. The plentiful resources, skilled team, and high level of management, make it be the fastest developed, most potential grating products supplier.
Ningbo Zhongzheng steel grating Co., Ltd strictly followed the brand management of "quality making value, innovation leading the future", to provide clients high quality assurance, drawing, mechanics calculation, data collation service. With high-quality products and services combined, it has been well recognized by clients all over the world. The products have been exported to different countries and regions, such as South Korea, Singapore, Thailand, Australia, France, Kenya, etc.
WEBSITE: WWW.CNSTELLGRATING.COM
SALES DEPT. FOREIGN BUSINESS:
TEL.: 86-574 8388 8317
FAX: 86-574 8388 8317
ATTN.: Bruce
