Type M Saddle Grating Clip
General Introduction

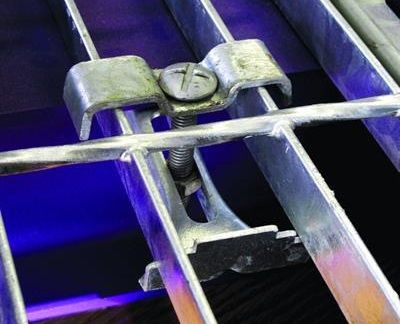

A popular method of attaching grating to structures involves formed metal pieces, variously called saddle clips, butterfly clips, and M-Clips, placed onto the grating top surface and attached with a suitable screw, bolt, or pin to the structure. All of our saddle clips are designed for use with a 0.25" diameter fastener.
Technical Data
Material: Available in both galvanized carbon steel and 304/316-series stainless steel
Screw diameter: M8
Min grating width: 30 mm; (for bearing bar center-to-center distance)
Max grating width: 40mm; (for bearing bar center-to-center distance)
Max grating depth: 50 mm, (for bearing bar height)
Thickness: Custom:3-10mm Routine use:3mm 4mm 5mm
Galvanized saddle clip: The most common saddle clip, this clip is used to fasten 19-space grating to structures. It has an oval-shaped hole, which will accommodate either a screw or a carriage bolt.
Stainless saddle clip: It is resistant to corrosion in most environments, due to its 304/316SS stainless steel material.
Installation
The Saddle Grating Clip can be installed with a flat head screwdriver and can be easily removed allowing the grating to be re-positioned or removed for maintenance purposes. It will suit grating bar widths from 1-3⁄16'' to 1-5⁄8'' and grating bar depths up to 2'' deep to ensure that most standard grating sections can be accommodated.
Application
Industrial platform
Corridor laying
Ditch cover plate
Fence
