ZZ-00008
Zhongzheng or as per your demand
7610900000
Swaged Alumnim Grating
General Introduction
Aluminum grating has excellent corrosion resistance, light weight and beautiful appearance. It’s widely used in marine engineering, ships, machinery, decoration, etc.
Swagged Aluminum Grating is light weight, yet strong and durable for all load bearing applications that need high corrosion resistance. Aluminum Grating is available in a variety of bearing bar spacing, thicknesses and heights depending on applications and load requirements. Available in either smooth top or serrated for added slip resistance.
Technical Data
•Material: T6061, 6063 alloy, ASTM B221•Bar grating made up of interlocking perpendicular bars.
•Bearing bar sizes range from 1" x 1/8" through 2-1/2" x 3/16" in 1/4" increments.
•Bearing bar spacing of 1-3/16", 15/16", 11/16" and 7/16" c.c. with cross bar spacing of 4" or 2".
•Hydraulic pressure is used to bond the slotted bars together, locking the deep cross bar into the notched bearing bar.
•Smooth, clean look due to a flush top rectangular cross bar.
•Offers strong lateral stability.
•Used in architectural design because of clean look and tight spacing.
•1/4" and 1/2" openings.
| Table 1 | ||
Bearing Bar Size mm | Bearing Bar Pitch mm | Cross Bar Pitch mm |
| 25*3 | 30 | 50/100 |
| 25*5 | 30 | 50/100 |
| 32*3 | 30 | 50/100 |
| 32*5 | 30 | 50/100 |
| 40*3 | 30 | 50/100 |
| 40*5 | 30 | 50/100 |
| 45*5 | 30 | 50/100 |
| 50*5 | 30 | 50/100 |
| 55*5 | 30 | 50/100 |
| 65*5 | 30 | 50/100 |
Surface Options
plain surface |
serrated surface |
I bar surface |

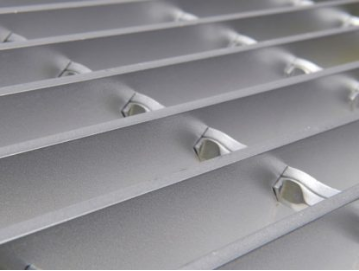

Plain Surface
Standard surface for rectangular bar products with excellent self-cleaning characteristics. Suitable for most applications.

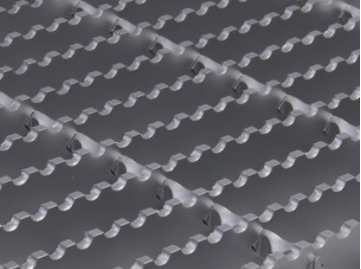

Serrated Surface
Notched rectangular bearing bars provide increased slip resistance. Ideal for applications where moisture or fluids may be present on or near the walking surface.

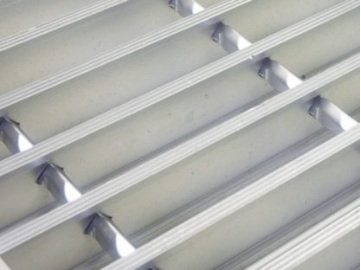

“I” Bar Surface
Striated flanges of the “I” bar provide enhanced slip resistance without the added cost of serration.
Finish Options
Mill Finish |
Anodized |
Other Finishes |
Mill Finish
Mill finish aluminum bars without additional coating. May show discoloration from welding and fabrication.
Anodized
An electrochemical process that produces an oxide coating which provides additional corrosion resistance and a decorative finish. Clear or colored finishes available.
Other Finishes
Specialty coatings may be specified in a wide range of colors. Some options include powder coating, vinyl coating, enamel, or epoxy paints.
Feature of Swaged Aluminum Grating
Non-toxic
Lightweight
Resilient & durable
Corrosion resistant
High strength-to-weight ratio
Can be fabricated and customized
Easily recycled
Versatile
Application
Security screens in commercial buildings
Municipal engineering as tree covers, trench covers and drainage covers
Platforms
Walkways in industrial factories or parks
Bridges for vehicles and pedestrians
Marine industries as working platform
Package
Strap packing: Generally used for neat press locked steel grating.
Pallet packing: Generally for the press-locked steel grating which need to export and load in container.
Screw rod fixation: Use four screw rods through the mesh and fixed with screws.
Company Profile
Ningbo Zhongzheng steel grating Co. Ltd. is a professional enterprise in R & D., design, steel grating, SMC grating field. With innovative and pragmatic, scientific developing philosophy, following the criterion of ISO9001, it provides steel grating, stair tread, compound steel grating, fiberglass grating, drainage pit/trench cover, railing & stanchion, etc. It products are widely used in petroleum, chemical industry, environmental protection, power plants, pharmaceutical, printing and dyeing, brewing water supply and drainage, transportation and other industries.
With its ten years of professional management experience and production in press welding steel grating, it is one of the few enterprises who have the technology of flat steel and galvanized steel grating in the industry. The plentiful resources, skilled team, and high level of management, make it be the fastest developed, most potential grating products supplier.
Ningbo Zhongzheng steel grating Co., Ltd strictly followed the brand management of "quality making value, innovation leading the future", to provide clients high quality assurance, drawing, mechanics calculation, data collation service. With high-quality products and services combined, it has been well recognized by clients all over the world. The products have been exported to different countries and regions, such as South Korea, Singapore, Thailand, Australia, France, Kenya, etc.
WEBSITE: WWW.CNSTELLGRATING.COM
SALES DEPT. FOREIGN BUSINESS:
TEL.: 86-574 8388 8317
FAX: 86-574 8388 8317
ATTN.: Bruce
