Type C Clip For FRP/GRP Grating

Availability:
  • ZZ-00009
  • Zhongzheng or as per your demand
  • 7326901900

                                                                                      Type C Clip For FRP/GRP Grating


General Introduction

Made of 316 stainless steel used for fastening and joining grating panels.

The C Clip connects two adjacent grating bars.

Size: 25mm, 38mm, 50mm thickness for Open Mesh Grating panels,

Size: 30mm thickness for Mini Mesh Grating panels.

Pack of 10 C Clips with an integrated nut.

Clip Type
Length Width  Depth Hole Size Bolt Type
25mm C Clip 38mm
25mm
30mm 6mm hole with integrated thread M6 x35mm s/s Socket cap screw & washer
 30mm C Clip  (Mini Mesh) 32mm
12mm
35mm
6mm hole with integrated thread M6 x35mm s/s Socket cap screw & washer
38mm C Clip 38mm 25mm
45mm
6mm hole with integrated thread M6 x 50mm s/s Socket cap screw & washer
50mm C Clip 42mm 25mm 55mm 6mm hole with integrated thread M6 x 50mm s/s Socket cap screw & washer

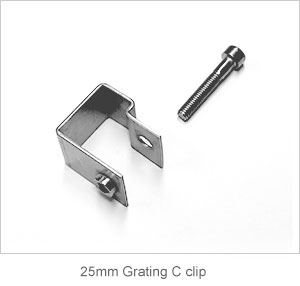

             25mm_grating_c_clip                                  30mm_grating_c_clip

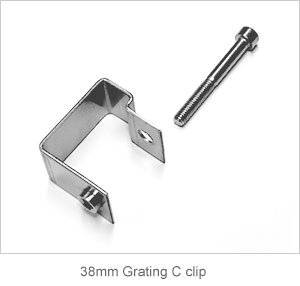

            38mm_grating_c_clip                                   50mm_grating_c_clip


ApplicationIndustrial Platform

Corridor laying

Ditch cover plate

Fence

Platform
