Type M Grating Clip for FRP/GRP Grating

Availability:
  • ZZ-00009
  • Zhongzheng or as per your demand
  • 7326901900

                                                                 Type M Grating Clip for FRP/GRP Grating


General Introduction

Made of 304/316 stainless steel used for fastening and joining grating panels.

M Clips – hold down clips; designed to locate grating on a support structure & prevent it from turning in all 4 directions.

Size: 25mm, 38mm, 50mm thickness for Open Mesh Grating panels,

Size: 30mm thickness for Mini Mesh Grating panels.

Pack of 10 M Clips with an integrated nut.


Clip Type Length Width Depth Hole Size Bolt Type
25mm M clip 55mm 25mm 20mm 9mm M8 x 40mm s/s Bolt with washer & hex nut
30mm M Clip(Mini Mesh) 35mm 12mm 18mm 6mm M5 x 35mm s/s Socket cap screw & washer
38mm M Clip 55mm 25mm 35mm 9mm M8 x 40mm s/s Bolt with washer & hex nut
50mm M Clip 65mm 30mm 45mm 9mm M8 x 40mm s/s Bolt with washer & hex nut

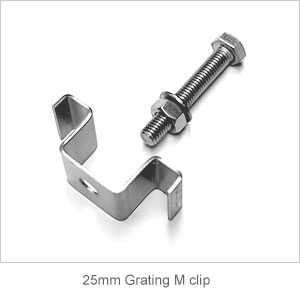

                    25mm_grating_m_clip                30mm_grating_m_clip

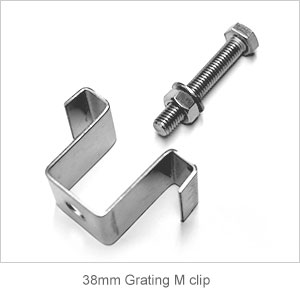

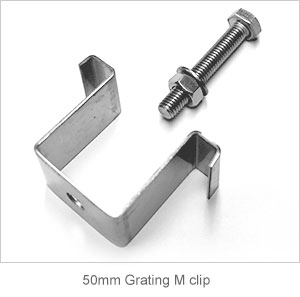

                    38mm_grating_m_clip                 50mm_grating_m_clip


Application

Corridor laying

Ditch cover plate

Fence

Platform
