Wire Mesh Cable Tray
General Introduction
Wire basket cable tray is a welded wire mesh cable management system produced from high strength steel wires. Wire basket tray is produced by first welding a net, forming the channel, and then finishing after fabrication. The 2" x 4" mesh permits continuous airflow to help prevent heat buildup. In addition, this unique open design prevents the buildup of dust, contaminants and bacterial proliferation.
Quick Details
| Type | Wire Mesh | Side Rail Height | 12-200 mm |
| Material | Steel | Max. Working Load | 300 kg |
| Width | 50-1000 mm | Color | sliver or the others like orange or white |
| Length | 1000/2440/3000/5800/6000mm | Diameter | 4mm,5mm,6mm |
| surface | HDG, Electro zinc plated, Electrolytic Polishing, SS316,SS304, | Accessories | bracket, splice bar, connector |
| Package | 1. no packing for trays, and carton for accessories; 2Two ends bubble film wrapped, and carton for accessories; 3. Completely bubble film wrapped, and carton for accessories. | ||
Technical Parameters
| Material &Surface Finish | |||
| Material | Surface Finishing | Thickness of Coating | Application Environment |
| Carbon Steel | Electro-galvanized | ≥12μm | Indoor |
| Hot Dip Galvanized | 60μm - 100μm | Indoor, Outdoor | |
| Powder Coating | 60μm - 100μm | Indoor, Outdoor | |
| SS304(L) | Pickled & Passivated | N/A | Indoor, Outdoor |
| SS316(L) | Pickled & Passivated | N/A | High corrosion occasions |

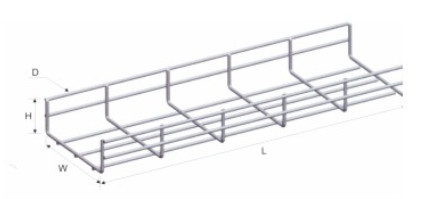

Dimension
Height (H): 25mm, 50mm, 75mm, 100mm, 125mm, 150mm…
Width(W): 50mm – 1000mm
Length(L): 300mm – 3000mm
Diameter(D): 3.5mm – 6.0mm
Installations
Bends, Risers, T junctions, Crosses and Reducers can be made from wire mesh cable tray straight sections flexibly in projects.
Trays shall be supported at normally span 1.5m by bracket(maximum span is 2.5m).
Wire mesh cable tray systems can be safely used in places where the temperature ranges between -40℃ and + 150℃ without any change to their characteristics.
| CM25 Series Wire Mesh Cable Tray (Height = 25mm) | ||||||||
| Part Number | Height | Width | Length | Dia | ||||
Name Rules CM(H)-(W)-(L)-(Dia)-(Material & Surface) | mm | inch | mm | inch | mm | inch | mm | inch |
| CM25-50-3000-5-EZ | 25 | 1 | 50 | 2 | 3000 | 118 | 5 | 0.2 |
| CM25-75-3000-5-EZ | 25 | 1 | 75 | 3 | 3000 | 118 | 5 | 0.2 |
| CM25-100-3000-5-EZ | 25 | 1 | 100 | 4 | 3000 | 118 | 5 | 0.2 |
| CM25-150-3000-5-EZ | 25 | 1 | 150 | 6 | 3000 | 118 | 5 | 0.2 |
| CM25-200-3000-5-EZ | 25 | 1 | 200 | 8 | 3000 | 118 | 5 | 0.2 |
| CM25-300-3000-5-EZ | 25 | 1 | 300 | 12 | 3000 | 118 | 5 | 0.2 |
| CM25-400-3000-5-EZ | 25 | 1 | 400 | 16 | 3000 | 118 | 5 | 0.2 |
| CM25-450-3000-5-EZ | 25 | 1 | 450 | 18 | 3000 | 118 | 5 | 0.2 |
| CM25-500-3000-5-EZ | 25 | 1 | 500 | 20 | 3000 | 118 | 5 | 0.2 |
| CM25-600-3000-5-EZ | 25 | 1 | 600 | 24 | 3000 | 118 | 5 | 0.2 |
Instructions for CM(H)-(W)-(L)-(Dia)-(Material):
CM25: 25mm height cable tray
Width: Cable tray width, from 50mm to 400mm
Length: Cable tray length, from 300mm to 3000mm
Dia: from 3.5mm to 6.0mm
The distance between 2 bottom wires for CM25-50 and CM25-75 cable trays is 25mm.
Material and surface:
There’re several options for cable tray material and surface:
EZ (Cold galvanized carbon steel surface, zinc thickness ≥12μm)
HDG(Hot dip galvanized, zinc thickness ≥60μm)
PC (Cold galvanized carbon steel surface, then spray, color is chosen by the customer)
SS304 (Stainless steel 304, surface pickled and polished)
SS316 (Stainless steel 316, surface pickled and polished)
SS316L (Stainless steel 316L, surface pickled and polished)
| CM100 Series Wire Mesh Cable Tray (Height = 100mm) | ||||||||
| Part Number | Height | Width | Length | Dia | ||||
Name Rules CM(H)-(W)-(L)-(Dia)-(Material & Surface) | mm | inch | mm | inch | mm | inch | mm | inch |
| CM100-100-3000-5-EZ | 100 | 4 | 100 | 4 | 3000 | 118 | 5 | 0.2 |
| CM100-150-3000-5-EZ | 100 | 4 | 150 | 6 | 3000 | 118 | 5 | 0.2 |
| CM100-200-3000-5-EZ | 100 | 4 | 200 | 8 | 3000 | 118 | 5 | 0.2 |
| CM100-300-3000-5-EZ | 100 | 4 | 300 | 12 | 3000 | 118 | 5 | 0.2 |
| CM100-400-3000-5-EZ | 100 | 4 | 400 | 16 | 3000 | 118 | 5 | 0.2 |
| CM100-450-3000-5-EZ | 100 | 4 | 450 | 18 | 3000 | 118 | 5 | 0.2 |
| CM100-500-3000-5-EZ | 100 | 4 | 500 | 20 | 3000 | 118 | 5 | 0.2 |
| CM100-600-3000-5-EZ | 100 | 4 | 600 | 24 | 3000 | 118 | 5 | 0.2 |
Instructions for CM(H)-(W)-(L)-(Dia)-(Material):
CM100: 100mm height cable tray
Width: Cable tray width, from 100mm to 900mm
Length: Cable tray length, from 300mm to 3000mm
Dia: from 3.5mm to 6.0mm
Company Profile
Ningbo Zhongzheng steel grating Co. Ltd. is a professional enterprise in R & D., design, steel grating, SMC grating field. With innovative and pragmatic, scientific developing philosophy, following the criterion of ISO9001, it provides steel grating, stair tread, compound steel grating, fiberglass grating, drainage pit/trench cover, railing & stanchion, etc. It products are widely used in petroleum, chemical industry, environmental protection, power plants, pharmaceutical, printing and dyeing, brewing water supply and drainage, transportation and other industries.
With its ten years of professional management experience and production in press welding steel grating, it is one of the few enterprises who have the technology of flat steel and galvanized steel grating in the industry. The plentiful resources, skilled team, and high level of management, make it be the fastest developed, most potential grating products supplier.
Ningbo Zhongzheng steel grating Co., Ltd strictly followed the brand management of "quality making value, innovation leading the future", to provide clients high quality assurance, drawing, mechanics calculation, data collation service. With high-quality products and services combined, it has been well recognized by clients all over the world. The products have been exported to different countries and regions, such as South Korea, Singapore, Thailand, Australia, France, Kenya, etc.
Contact Way
Contact Person: Sally
Email: sales1@cnsteelgrating.com
Tel: + 86 574 8388 8317
Whatsapp/Wechat: + 86 183 9580 1297
