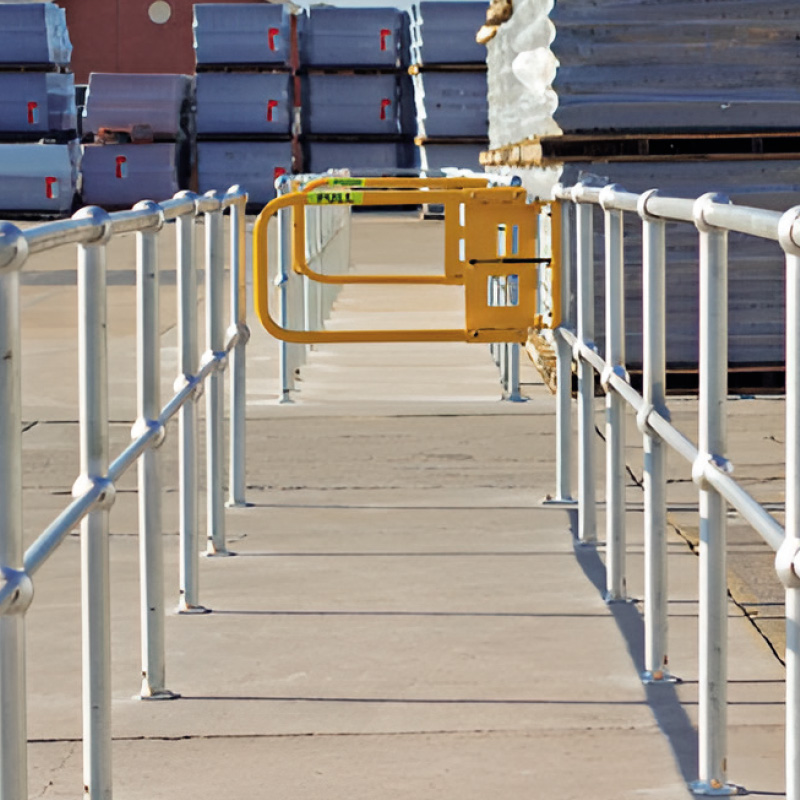

Railing
Zhongzheng railings are produced under the Chinese Standard YB/T 4001.2-2007, which is adopting ball type connecting way, railings are using ordinary steel and making hot-dip galvanizing surface treatment. The railings made by Zhongzheng are solid and durable, easy for installation and artistic with originality. Widely used in the shipyard, bridge engineering, power plant, petrochemical, steel mill, sewage treatment plant, waterworks, landscape architecture, municipal roads, airport and wharf, other industrial and architectural engineering.
Surface Treatment
For the surface treatment of railings, normally we have three methods of surface treatment: hot-dip galvanizing, painting, or non-treatment. We recommend making hot-dip galvanizing surface treatment due to the excellent anticorrosion performance of it.

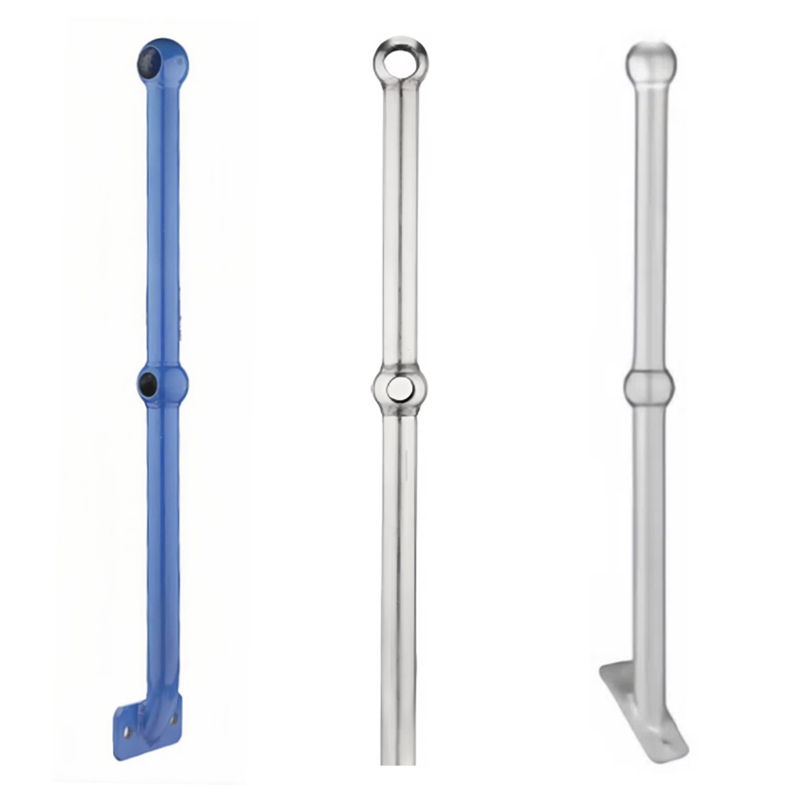

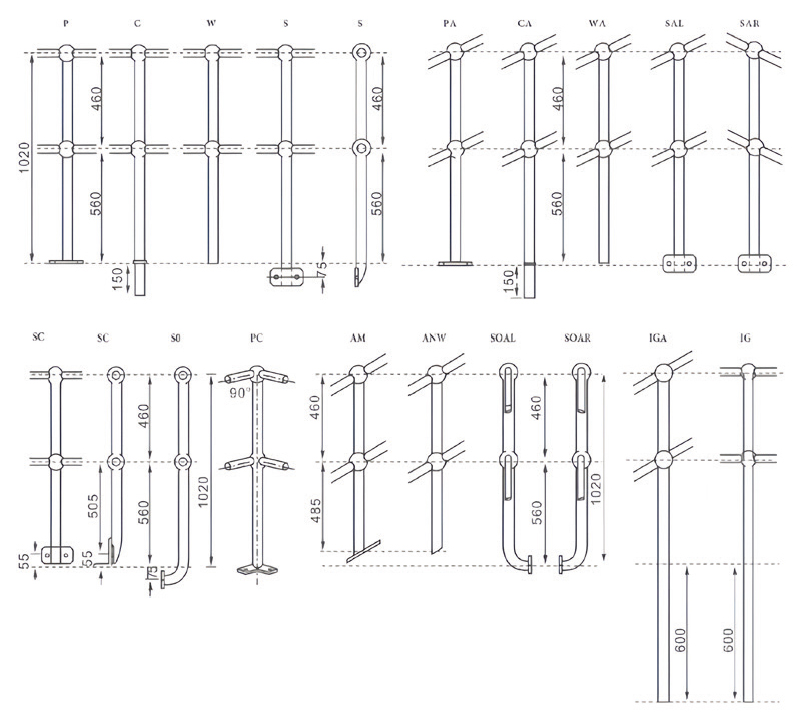

Models of Zhongzheng Upright Post
We can produce and provide you the following 18 kinds of railing upright posts; we also can produce the railings according to your special requirements.
The correlativity between railing model and upright post
| Upright Post | Railing | ||
| Diameter of Tee | Diameter of Upright Post | Specification of Handrail | Specification of Cross Bar |
| 66 | 42.3 | 33.5×3.25 L=6000mm | 26.8×2.75 L=6000mm |
| 78 | 48 | 42.3×3.25 L=6000mm | 33.5×3.25 L=6000mm |

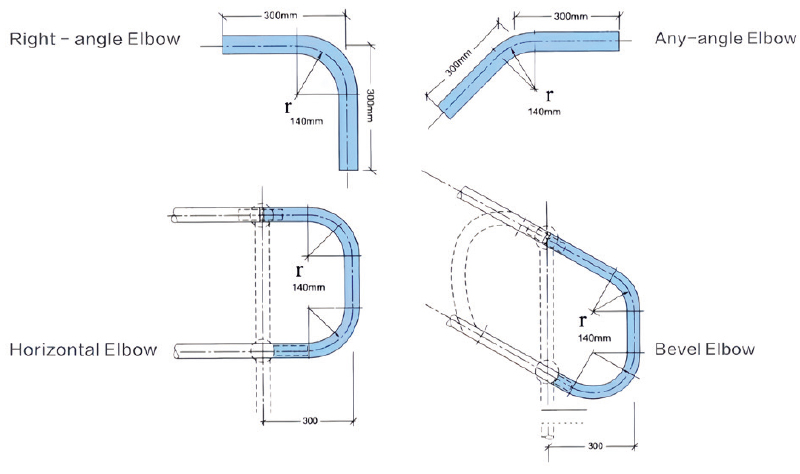

Bend
