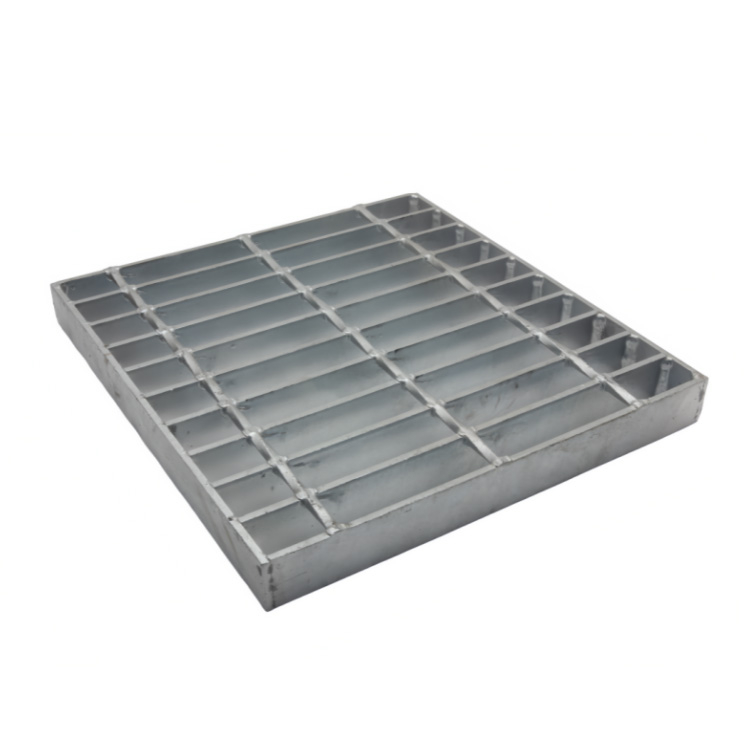

Plain welded steel grating is the most popular steel grating solution for industrial flooring, platforms, walkways, and drainage systems. Manufactured by automatic resistance welding, it combines high load capacity, excellent drainage, and long service life in a durable one-piece structure. The smooth bearing bar surface is ideal for applications where slip resistance is not the primary requirement. Zhongzheng offers custom sizes, materials, bearing bar spacing, and surface treatments to meet ANSI, AS, EN, and other international standards for projects worldwide.
Features & Characteristics
- High Load Capacity. Engineered to support heavy pedestrian and equipment loads with excellent structural performance.
- Efficient Drainage. The open-grid design ensures fast drainage while allowing air circulation and debris to pass through.
- Long Service Life. Hot-dip galvanized coating provides outstanding corrosion resistance for indoor and outdoor applications.
Low Maintenance. The durable welded structure requires minimal maintenance, reducing long-term operating costs.
- Custom Manufacturing. Available in various bearing bar sizes, spacings, panel dimensions, and surface treatments to meet project requirements.
- Wide Applications. Ideal for industrial platforms, walkways, stair treads, trench covers, power plants, wastewater treatment facilities, and petrochemical projects.
Specifications
Item | Specification |
Manufacturing Method | Resistance Welded |
Bearing Bar Type | Plain Flat Bar |
Material | Carbon Steel (e.g., Q235, Q355, S275JR, S235JR, ASTM A36) |
Bearing Bar Size | 20 × 3 mm – 100 × 10 mm |
Bearing Bar Pitch | 20, 25, 30, 40 mm (Custom Available) |
Cross Bar Type | Twisted Square Bar / Round Bar |
Cross Bar Pitch | 50 mm, 100 mm (Custom Available) |
Surface Treatment | Hot-dip Galvanized, Painted, Black Finish |
Panel Size | Standard and Custom Sizes Available (Max. 7400 × 1000 mm) |
Standards | ASTM、ANSI/NAAMM (MBG531)、BS4592、AS1657、YB/T 4001 |
Customization Options
✔ Bearing Bar Size & Pitch
✔ Cross Bar Type & Pitch
✔ Surface Treatment
✔ Panel Size
✔ Banding & Edge Treatment
✔ Cut-outs & Special Fabrication

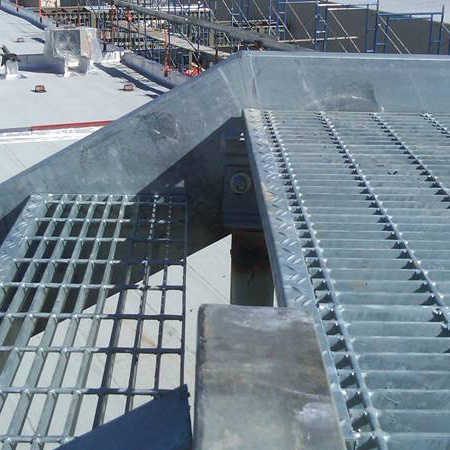

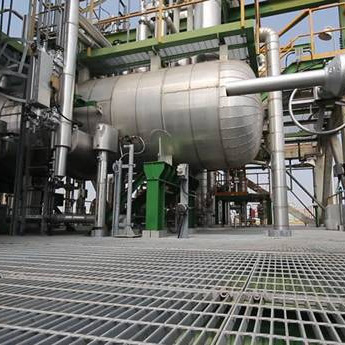

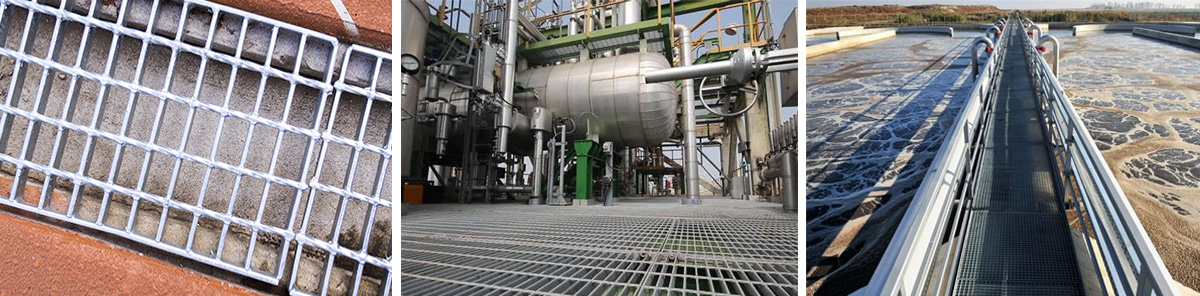

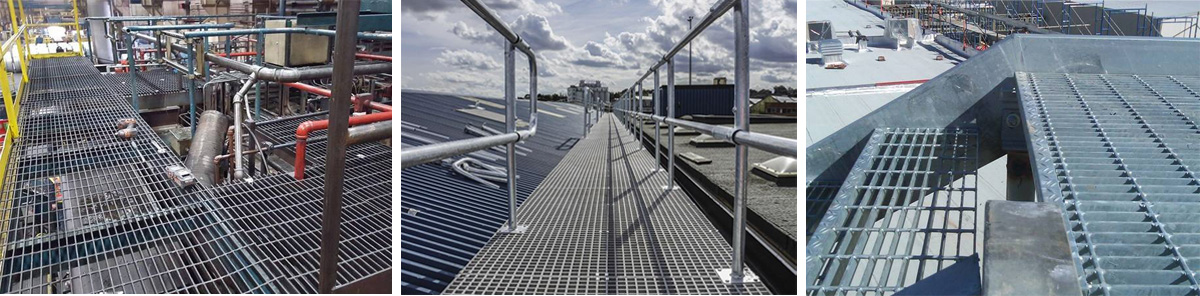

Project Applications
 | ||

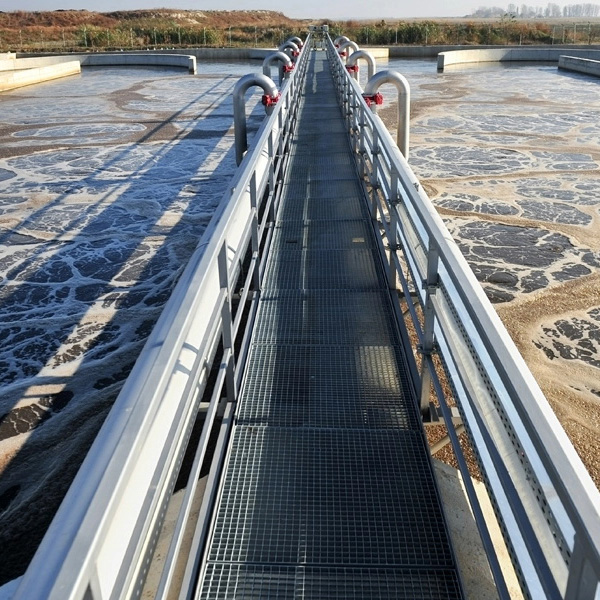

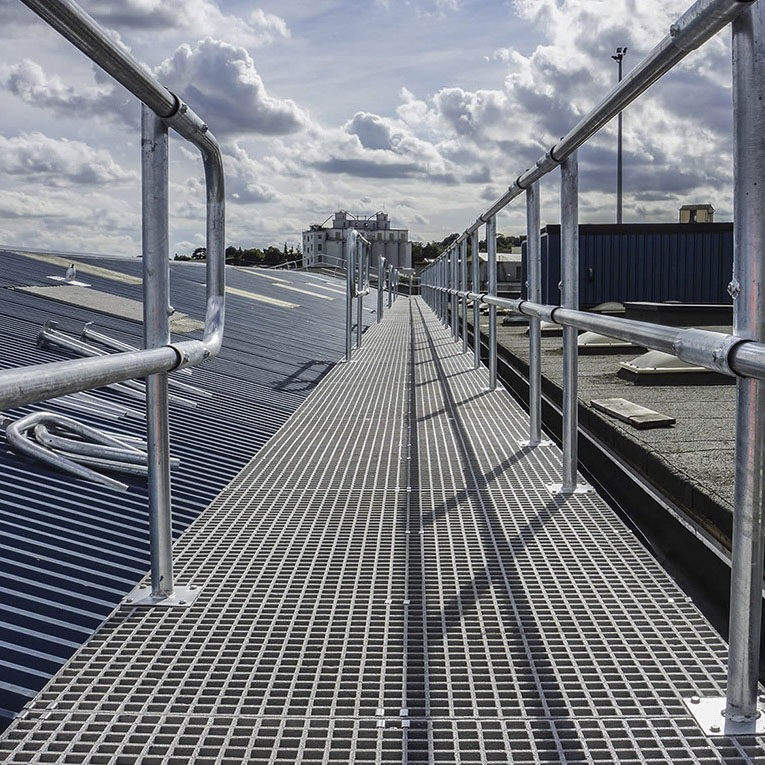

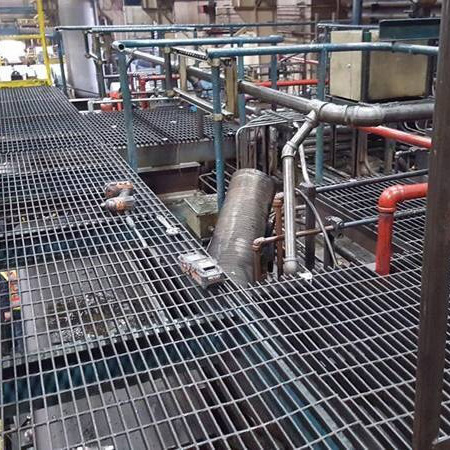

| Industrial Platforms | Walkways | Stair Treads |
 | ||
| Trench Covers | Power Plants | Wastewater Treatment |

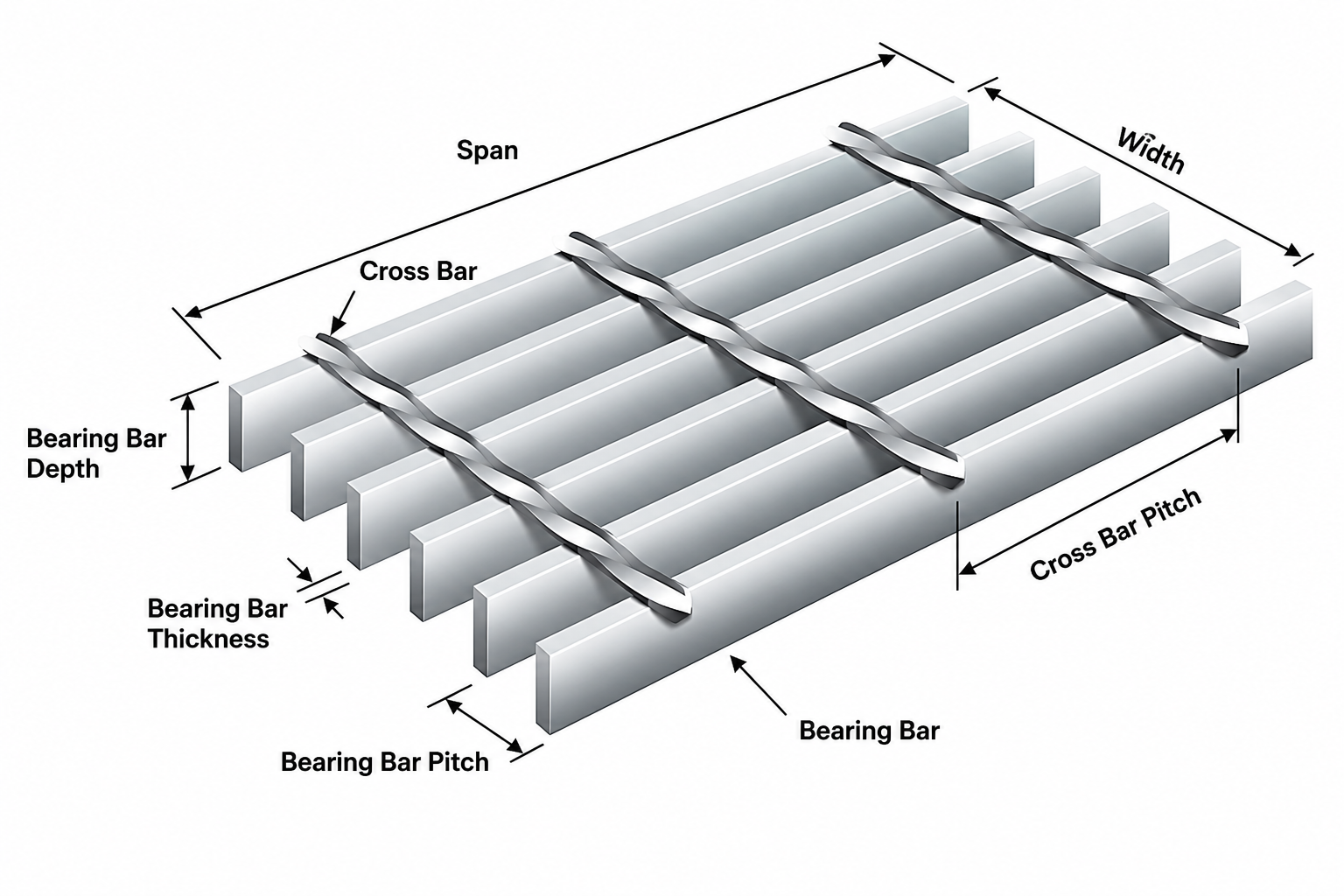

Technical Drawing & Dimensions
Bearing Bar: 25×5 mm Flat Bar
Cross Bar: 6×6 mm Twisted Square Bar
Mesh Size: 30×100 mm
Dimensions shown are for reference only. Custom sizes are available upon request.
