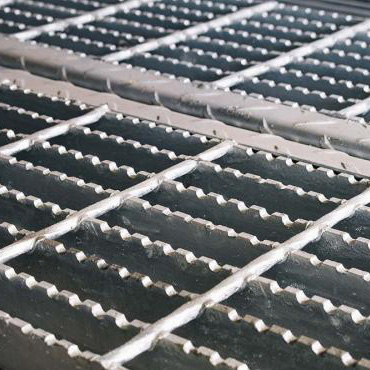

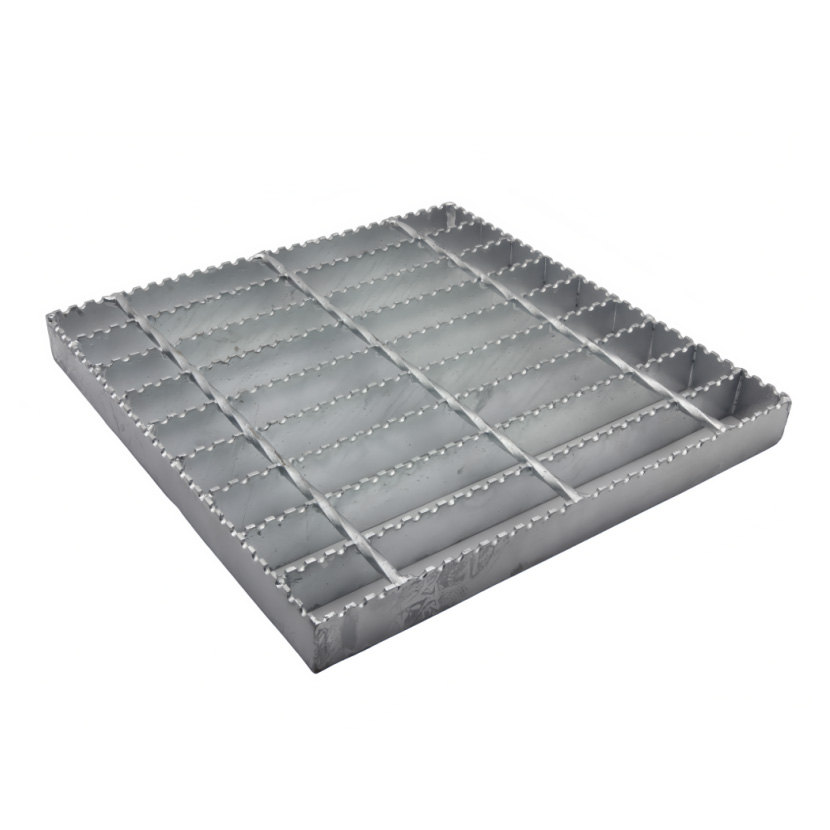

Serrated welded steel grating is manufactured by resistance welding serrated bearing bars and cross bars into a rigid and durable panel. The serrated surface provides enhanced slip resistance, making it an ideal choice for wet, oily, or hazardous working environments. It is widely used for industrial platforms, walkways, stair treads, offshore facilities, and drainage covers where safety and reliable performance are essential. Zhongzheng offers custom sizes, bearing bar spacings, and surface treatments to meet ANSI, AS, EN, and other international standards.
Features & Characteristics
- Enhanced Slip Resistance. Serrated bearing bars provide excellent grip, reducing the risk of slipping in wet, oily, or icy conditions.
- High Load Capacity. The welded construction delivers outstanding strength and structural stability for demanding industrial applications.
- Excellent Drainage & Ventilation. The open-grid design allows water, air, light, and debris to pass through freely, keeping working areas clean and safe.
- Corrosion Resistance. Available with hot-dip galvanized, painted, or black finishes for reliable protection and long service life.
- Low Maintenance. The durable welded structure requires minimal maintenance, reducing long-term operating costs.
- Custom Manufacturing. Available in various bearing bar sizes, serration patterns, mesh spacings, and panel dimensions to meet project requirements.
Specifications
Item | Specification |
Manufacturing Method | Resistance Welded |
Bearing Bar Type | Plain Flat Bar |
Material | Carbon Steel (e.g., Q235, Q355, S275JR, S235JR, ASTM A36) |
Bearing Bar Size | 20 × 3 mm – 100 × 10 mm |
Bearing Bar Pitch | 20, 25, 30, 40 mm (Custom Available) |
Cross Bar Type | Twisted Square Bar / Round Bar |
Cross Bar Pitch | 50 mm, 100 mm (Custom Available) |
Surface Treatment | Hot-dip Galvanized, Painted, Black Finish |
Panel Size | Standard and Custom Sizes Available (Max. 7400 × 1000 mm) |
Standards | ASTM、ANSI/NAAMM (MBG531)、BS4592、AS1657、YB/T 4001 |
Customization Options
✔ Bearing Bar Size & Pitch
✔ Serration Type
✔ Cross Bar Type & Pitch
✔ Surface Treatment
✔ Panel Size
✔ Banding & Edge Treatment
✔ Cut-outs & Special Fabrication
Project Applications
 | |||

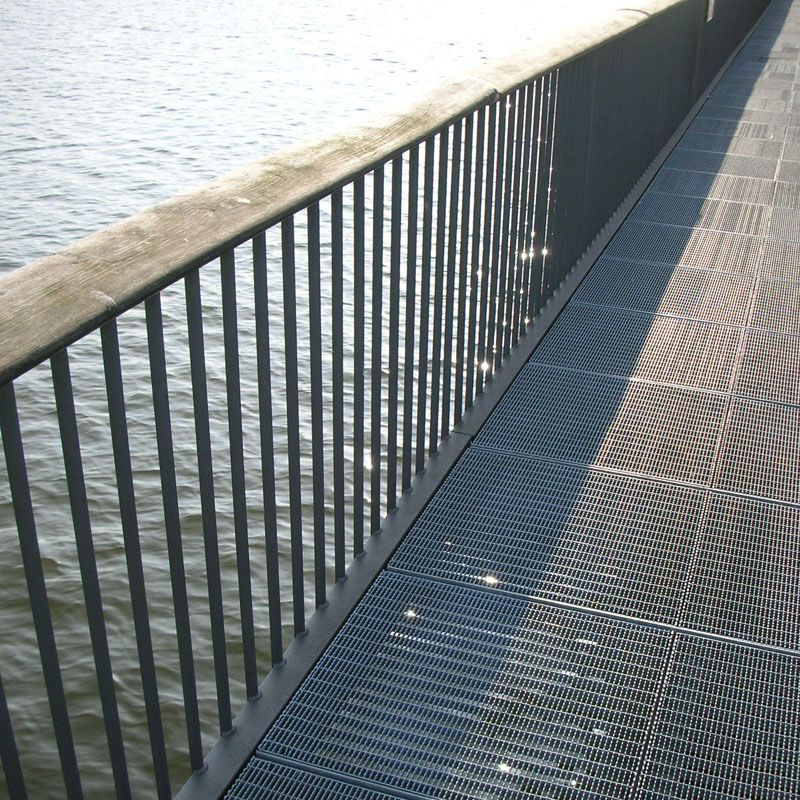

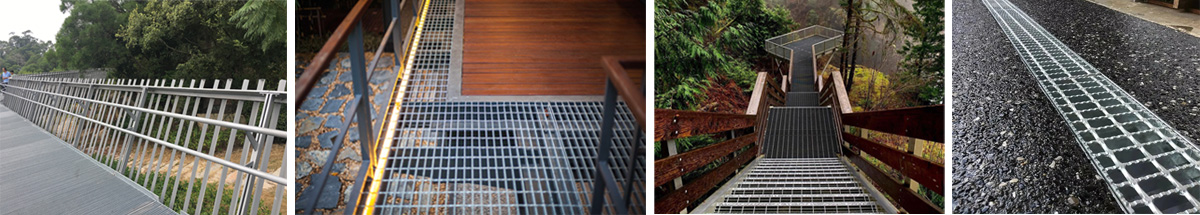

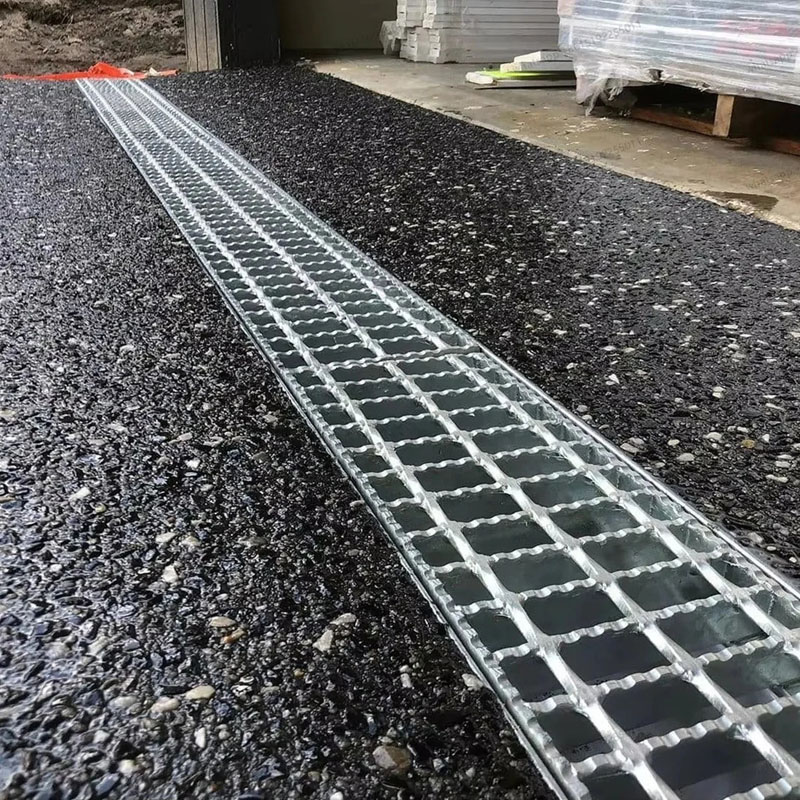

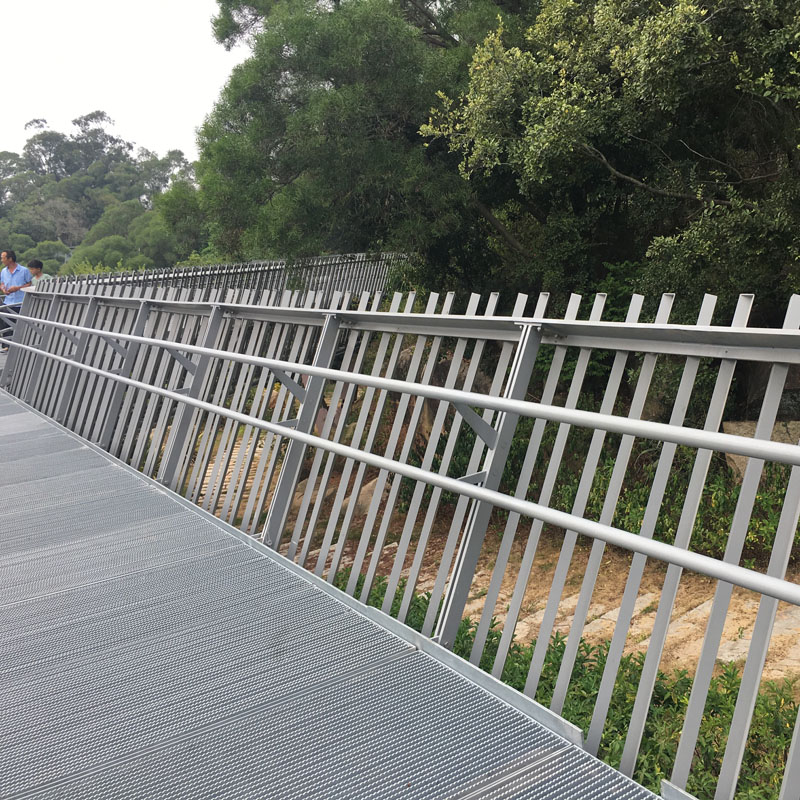

| Bridge Walkways | Platforms | Stair Treads | Trench Covers |

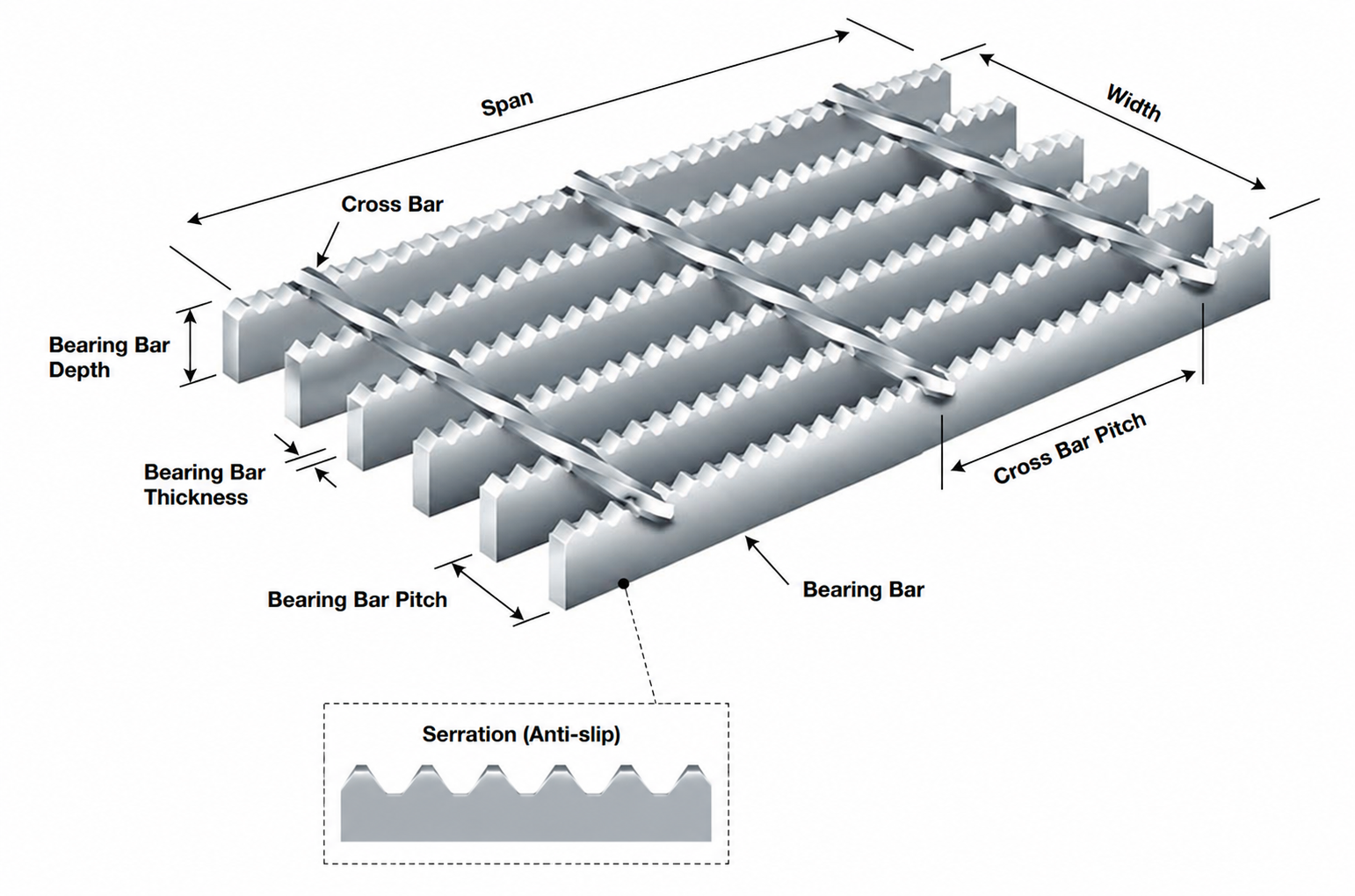

Technical Drawing & Dimensions
Bearing Bar: 25×5 mm Flat Bar
Cross Bar: 6×6 mm Twisted Square Bar
Mesh Size: 30×100 mm
Dimensions shown are for reference only. Custom sizes are available upon request.
