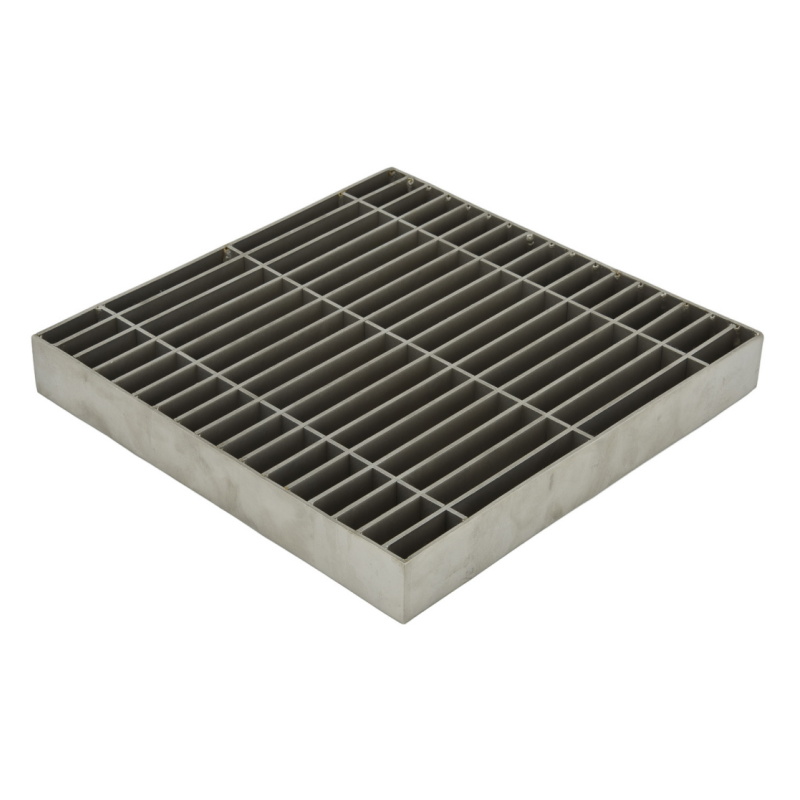

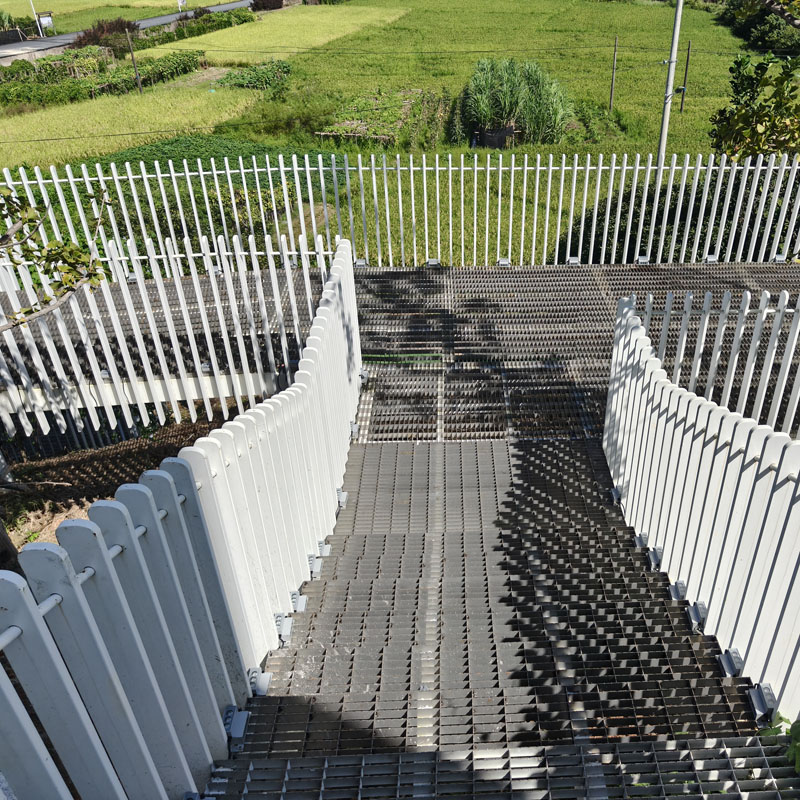

Plain Stainless Steel Grating is manufactured by welding flat bearing bars and cross bars into a strong and rigid open-grid structure. Featuring a smooth bearing bar surface, it offers excellent drainage, ventilation, and load-bearing performance while maintaining a clean and modern appearance.
Available in SS304 and SS316L, plain stainless steel grating is ideal for environments requiring superior corrosion resistance, hygiene, and long service life. It is widely used in food processing plants, wastewater treatment facilities, commercial buildings, marine projects, and architectural applications.
Features & Characteristics
- Excellent Corrosion Resistance. Manufactured from SS304 or SS316L stainless steel for outstanding performance in corrosive and wet environments.
- High Load Capacity. Welded construction provides excellent strength and stability for pedestrian and industrial applications.
- Smooth Walking Surface. Plain bearing bars offer a flat and comfortable surface for general-purpose flooring and walkways.
- Efficient Drainage & Ventilation. Open-grid design allows water, air, and light to pass freely while reducing debris accumulation.
- Hygienic & Easy to Clean. Smooth stainless steel surfaces are easy to maintain, making them suitable for sanitary environments.
- Custom Manufacturing. Available in various bar sizes, mesh spacings, panel dimensions, and surface finishes to meet project requirements.
Specifications
Item | Specification |
Material | SS304, SS316L, SS316 |
Bearing Bar Type | Plain Flat Bar |
Bearing Bar Thickness | 2–6 mm |
Bearing Bar Height | 20–100 mm |
Bearing Bar Pitch | 15, 20, 25, 30, 40 mm (Custom Available) |
Cross Bar Pitch | 30, 50, 100 mm (Custom Available) |
Manufacturing Method | Pressure Welded |
Surface Finish | Pickled & Passivated, Electro-Polished (Optional) |
Panel Size | Custom Size |
Load Standard | Custom Design Available |
Project Applications

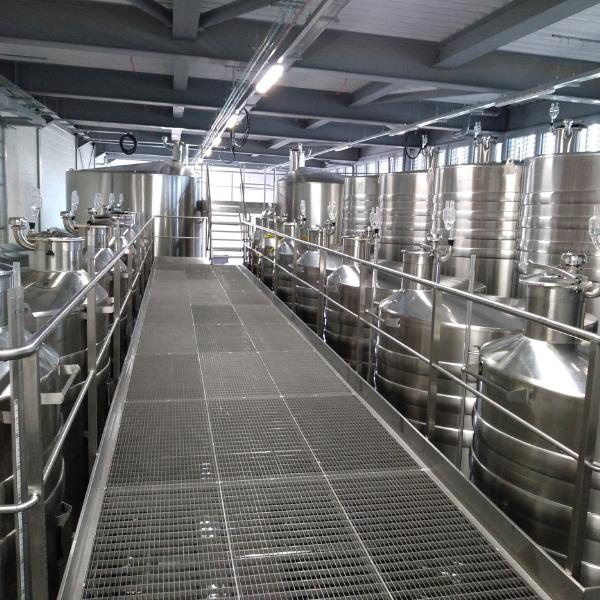

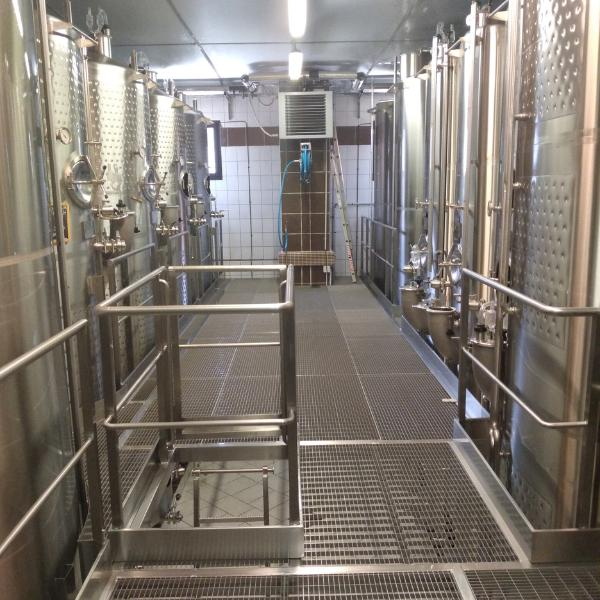

Food Processing Plants: Ideal for hygienic production areas requiring corrosion resistance, easy cleaning, and efficient drainage.

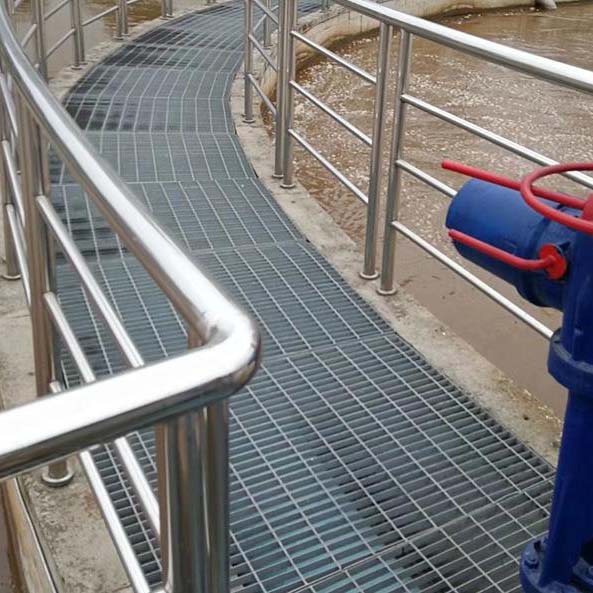

Wastewater Treatment Facilities: Suitable for walkways, platforms, and drainage areas exposed to moisture and corrosive environments.
Commercial Buildings: Used for utility platforms, service areas, and architectural flooring where durability and appearance are important.
Chemical & Pharmaceutical Plants: Provides reliable performance in environments exposed to chemicals, frequent washdowns, and strict hygiene standards.
Industrial Platforms & Walkways: Widely used for factory flooring, maintenance platforms, catwalks, and access walkways requiring strength and long service life.
