Stainless Steel Linear Drains provide an efficient and hygienic drainage solution for commercial, industrial, and architectural applications. Manufactured from high-quality stainless steel (SS304 or SS316L), they offer excellent corrosion resistance, high load capacity, and long service life.
Available with various grate styles, including wedge wire grates, heel guard grates, perforated grates, and slotted covers, our linear drainage systems are suitable for indoor and outdoor installations where reliable water management and modern aesthetics are required.
Features & Characteristics
- High-Efficiency Drainage. Engineered channel profiles provide fast water flow and reduce water accumulation in wet environments.
- Premium Stainless Steel. Constructed from SS304 or SS316L stainless steel for superior corrosion resistance and long service life.
- Hygienic Design. Smooth channel interiors and removable grates simplify cleaning and support high sanitary standards.
- Flexible Installation. Suitable for concrete, tile, epoxy, and resin flooring systems in both indoor and outdoor applications.
- Versatile Grate Options. Available with wedge wire, heel guard, perforated, or slotted grates to suit different drainage, safety, and aesthetic requirements.
- Fully Customizable. Manufactured to project-specific dimensions with optional channel widths, outlet configurations, load classes, and surface finishes.
Specifications

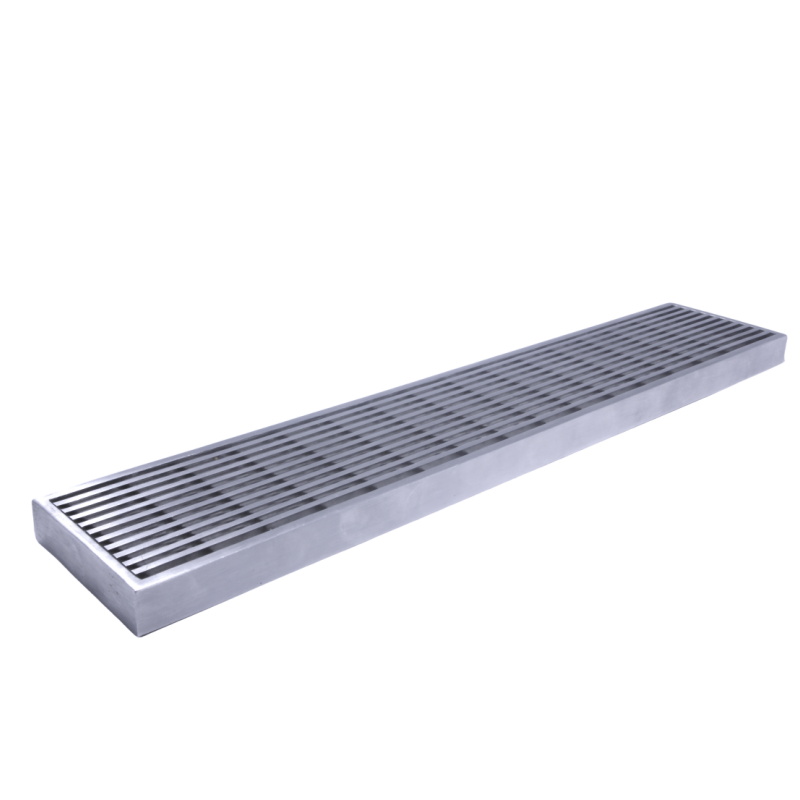

Product Name | Heel guard Grate |
Description | 1. V wire: 3.4×5.2 mm Support Bar: 3×12 mm 2. V wire: 3×4.5 mm Support Bar: 3×6 mm 3. V wire: 3.4×6.8 mm Support Bar: 3×15 mm Side flat bar: 5 ×20 mm (2 or 4 sides) or customized |
Material | Stainless steel 304/316 (L) |
Finish | Polished, Brushed, Electrolytic Polished |
Customized | Available width: 100-400 mm Length: Maximum 4 meters Customized |
Project Applications
Commercial Kitchens: Designed for hygienic drainage in restaurants, hotels, food processing plants, and beverage facilities.
Commercial Buildings: Suitable for office buildings, shopping centers, and retail spaces requiring reliable drainage and an attractive appearance.
Shopping Malls: Provides safe, heel-proof drainage for high pedestrian traffic areas while maintaining a modern architectural look.
Hotels & Resorts: Ideal for hotel entrances, courtyards, swimming pools, and spa facilities.

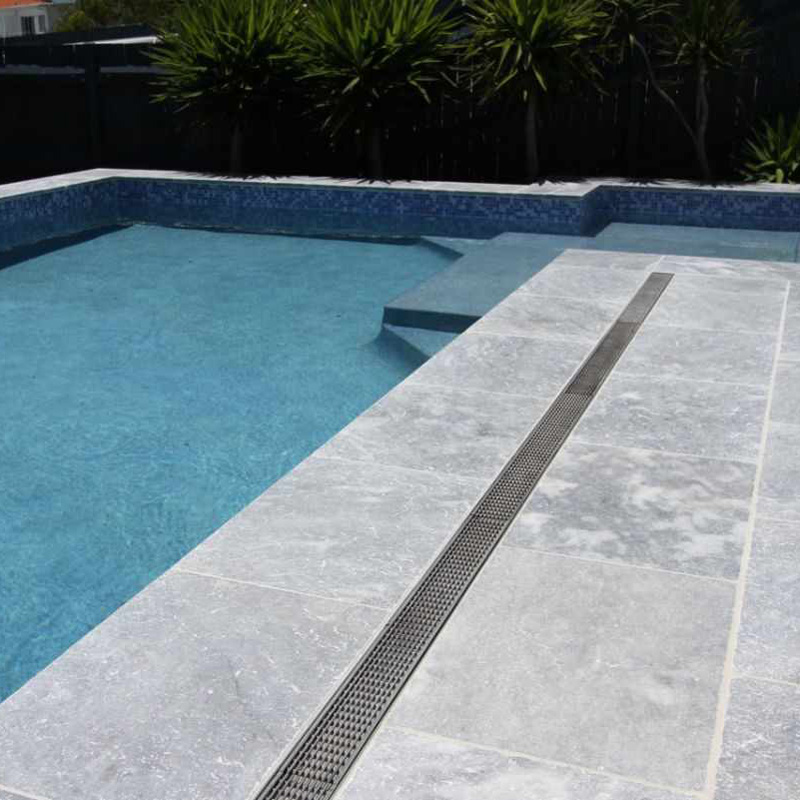

Swimming Pools: Perfect for overflow channels and pool deck drainage with superior corrosion resistance.
Airports & Railway Stations: Designed for public transport facilities where durability, safety, and efficient drainage are essential.

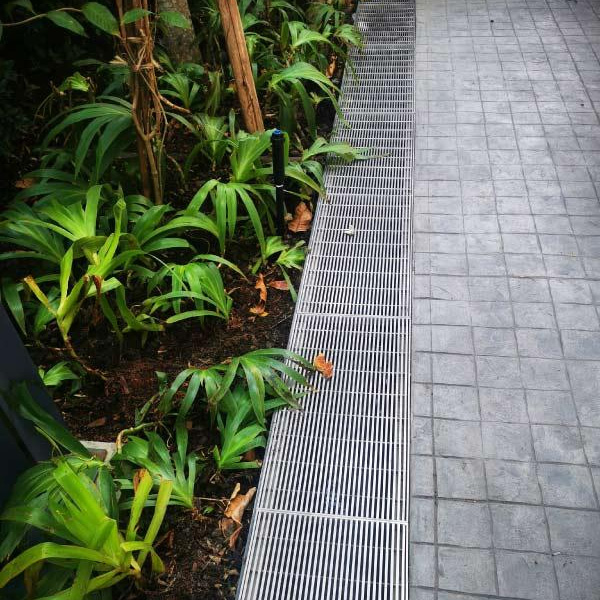

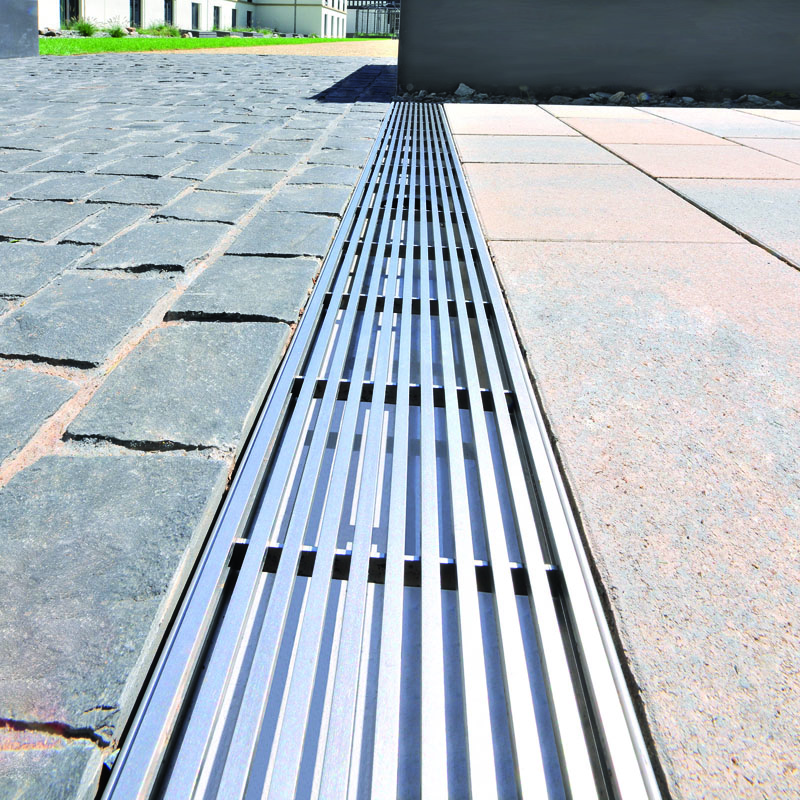

Landscape Drainage: Suitable for plazas, gardens, parks, terraces, and other architectural landscape projects.
