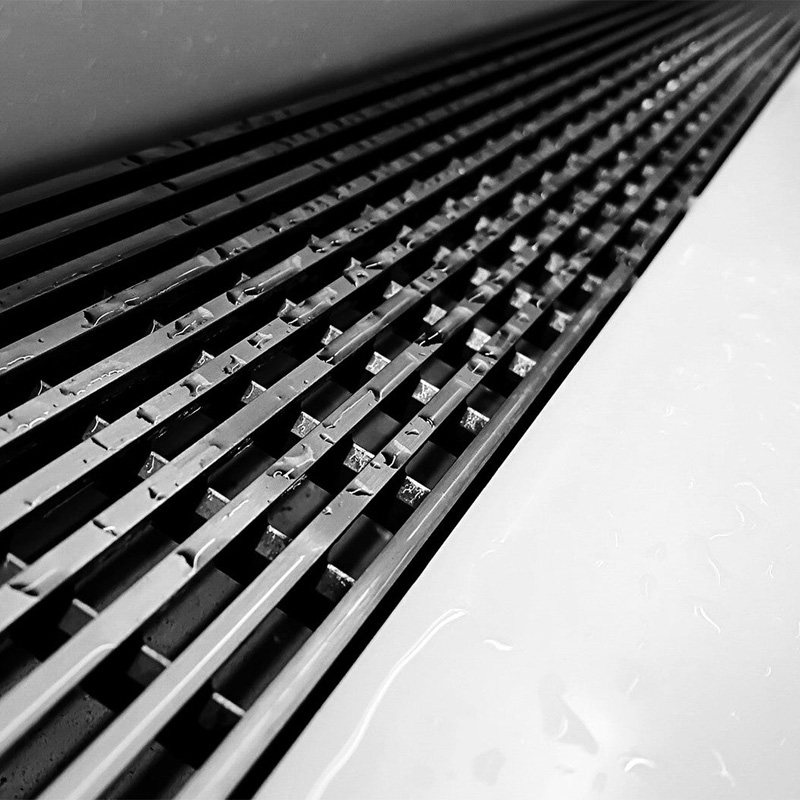

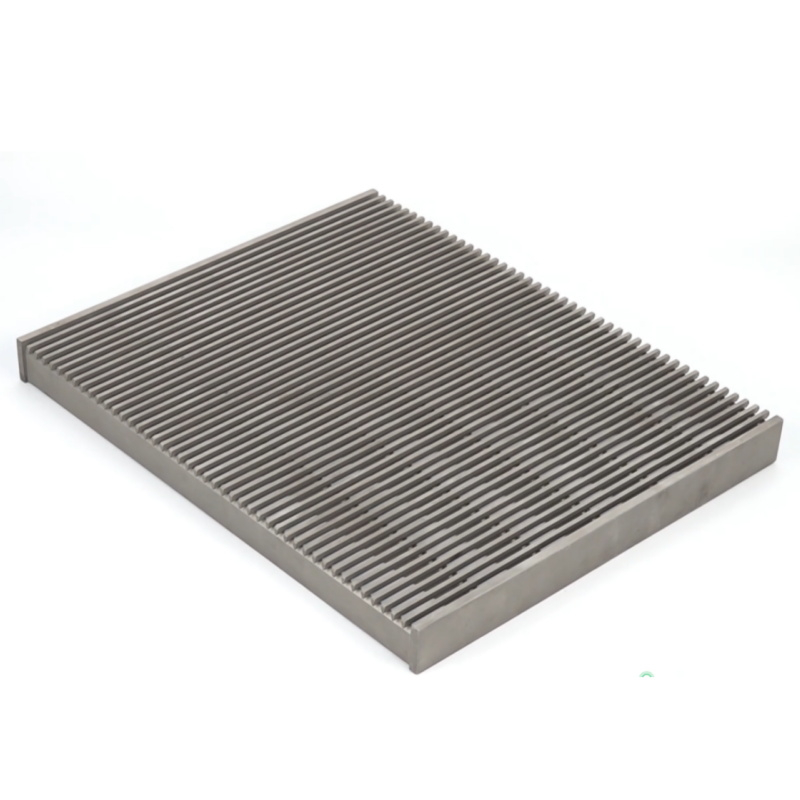

Stainless wedge wire grate is manufactured by resistance welding wedge-shaped profile wires to support rods, creating a durable open-grid structure with precise slot openings. The unique wedge wire design provides excellent drainage, high load-bearing capacity, and outstanding resistance to clogging. Manufactured from high-quality stainless steel, it offers superior corrosion resistance, making it ideal for food processing, wastewater treatment, breweries, commercial kitchens, swimming pools, and architectural drainage systems. Zhongzheng provides customized slot openings, panel sizes, and load capacities to meet specific project requirements.
Features & Characteristics
- Excellent Drainage Performance. The wedge-shaped profile wires allow water to flow efficiently while minimizing debris accumulation.
- Anti-Clogging Design. The tapered slot structure reduces blockages and improves self-cleaning performance.
- High Load Capacity. Precision resistance welding creates a rigid structure capable of supporting pedestrian and light vehicle traffic.
- Superior Corrosion Resistance. Manufactured from stainless steel for long-term performance in wet, corrosive, and hygienic environments.
- Smooth & Hygienic Surface. The smooth surface is easy to clean, making it ideal for food, beverage, pharmaceutical, and commercial applications.
- Custom Manufacturing. Available in various slot openings, wire profiles, panel dimensions, and edge finishes.
Specifications
Product Name | Wedge Wire Grate |
Description | 1. V wire: 3.4×5.2 mm Support Bar: 3×12 mm 2. V wire: 3×4.5 mm Support Bar: 3×6 mm 3. V wire: 3.4×6.8 mm Support Bar: 3×15 mm Side flat bar: 5 ×20 mm (2 or 4 sides) or customized |
Material | Stainless steel 304/316 (L) |
Finish | Polished, Brushed, Electrolytic Polished |
Customized | Available width: 100-400 mm Length: Maximum 4 meters Customized |
Customization Options
✔ Stainless Steel Grade
✔ Slot Opening
✔ Profile Wire Size
✔ Support Rod Size & Spacing
✔ Panel Size
✔ Edge Frame
✔ Surface Finish
✔ Custom Fabrication
Project Applications
Swimming Pools & Spas: Provides safe and efficient drainage for pool surroundings, overflow channels, and wet areas.
Commercial Kitchens & Food Processing: Meets hygiene requirements in restaurants, breweries, and food processing facilities with excellent corrosion resistance.
Bathrooms & Public Facilities: Suitable for showers, washrooms, and other wet environments requiring clean and reliable drainage.

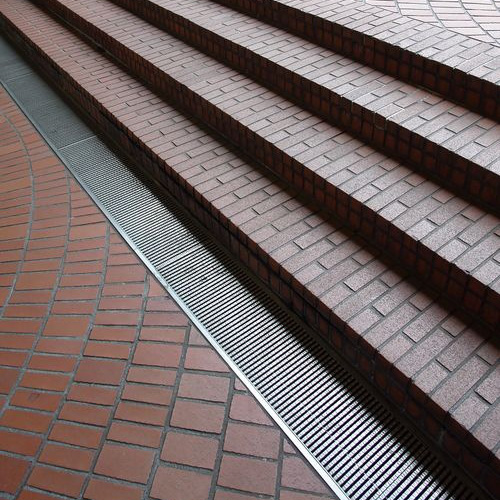

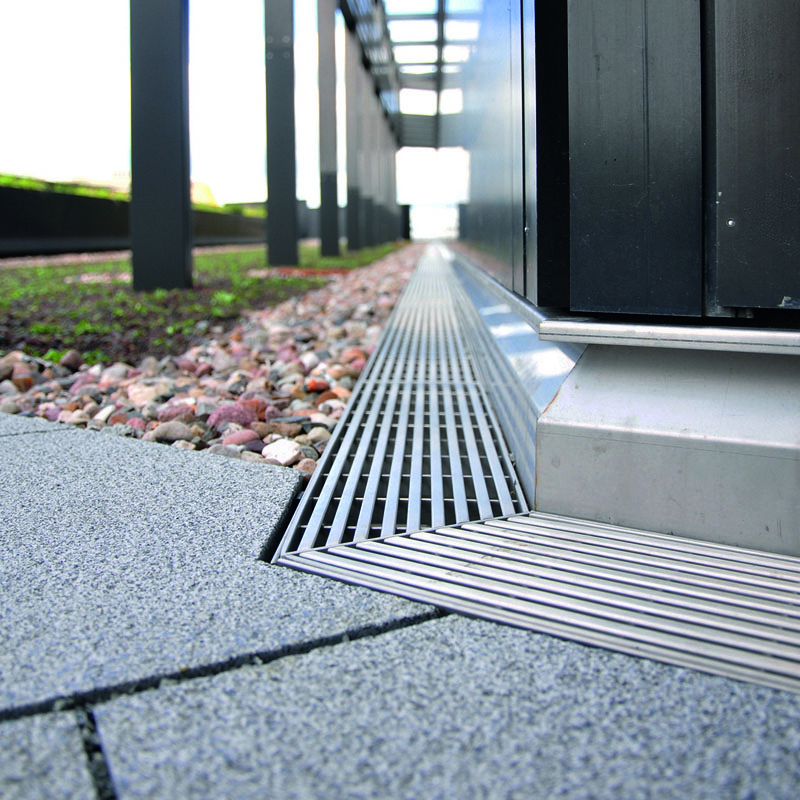

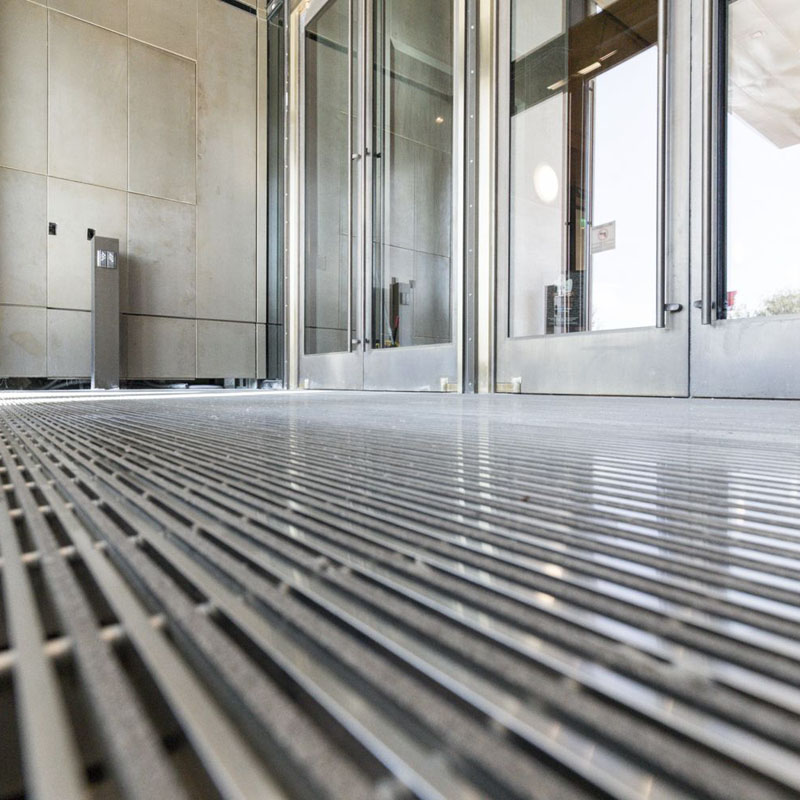

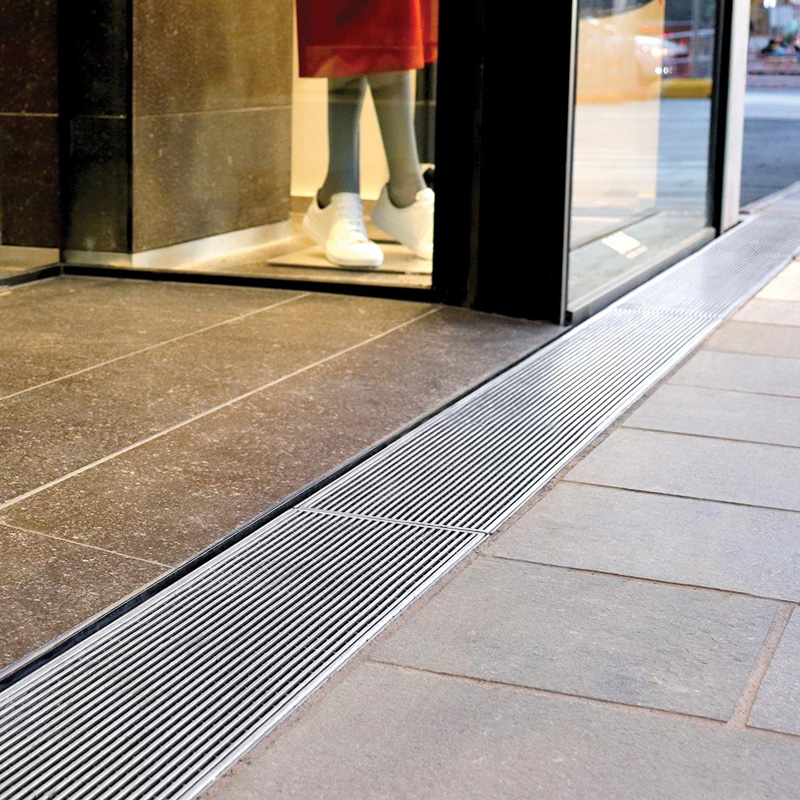

Industrial & Architectural Drainage: Ideal for factories, hotels, commercial buildings, and landscape drainage systems.
