Pultruded T-Bar FRP Grating

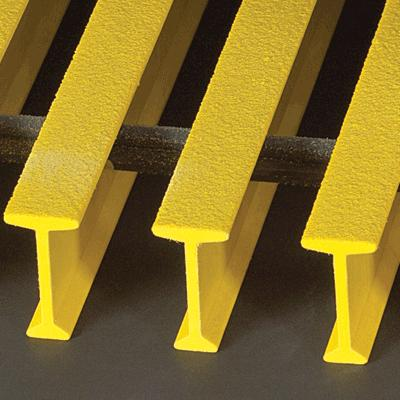

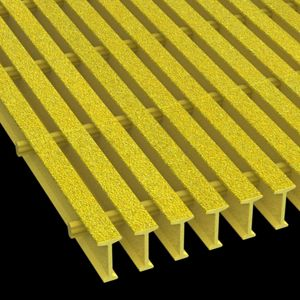

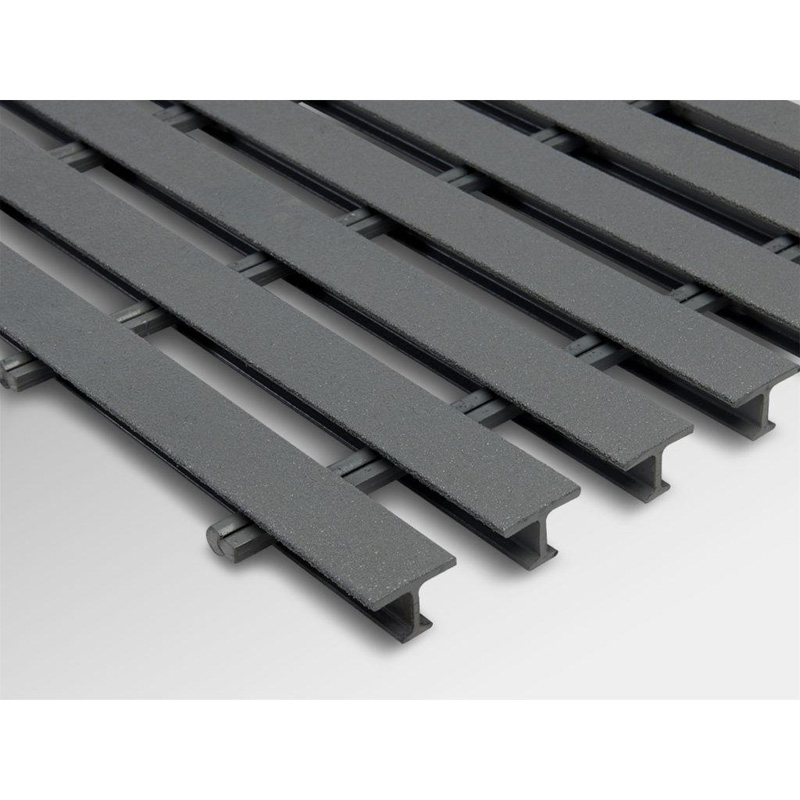

Pultruded T-Bar FRP Grating is manufactured using the pultrusion process, in which continuous fiberglass reinforcements are saturated with resin and pulled through a heated die to form T-shaped bearing bars. The bearing bars are then mechanically assembled with cross rods to create a strong and durable grating panel.

The T-bar profile offers increased bearing surface and enhanced structural stability, making it suitable for applications requiring higher load capacity and reliable performance. Combined with the inherent advantages of FRP, including corrosion resistance, lightweight construction, and low maintenance, Pultruded T-Bar FRP Grating is an ideal alternative to traditional steel grating.

Available with gritted or smooth surface finishes, multiple resin systems, and customized panel sizes, it can be tailored to meet a wide range of project requirements.

Specifications

Features & Characteristics

Excellent Structural Strength. The T-shaped bearing bars provide high load capacity and improved structural stability, making the grating suitable for demanding industrial environments.

Long Span Performance. Designed for longer unsupported spans, the grating reduces the need for additional support structures, lowering installation costs.

Superior Corrosion Resistance. Manufactured with high-quality polyester, vinyl ester, or phenolic resins, it offers outstanding resistance to chemicals, moisture, saltwater, and harsh environments.

Slip-Resistant Surface Options. Available with gritted or smooth surface finishes to provide reliable footing for different working conditions.

Lightweight & Easy Installation. FRP construction significantly reduces panel weight compared with steel, making transportation, handling, and installation more efficient.

Electrically & Thermally Non-Conductive. The non-conductive properties of FRP improve safety in electrical facilities and industrial plants.

Low Maintenance. FRP grating will not rust, rot, or require painting, resulting in reduced maintenance costs and an extended service life.

Advantages of Concave Surface

The T-bar profile provides a wider top flange than other pultruded profiles, improving load distribution and structural stability. It is well suited for applications where higher strength, rigidity, and reliable support are required.

Best suited for

· Heavy-duty industrial walkways

· Equipment platforms

· Offshore facilities

· Chemical plants

· Marine structures

· Maintenance platforms

· Utility access systems

Project Applications

Pultruded T-Bar FRP Grating is widely used in industrial and infrastructure projects where high strength, corrosion resistance, and long service life are essential.

Typical applications include

· Industrial Walkways

· Equipment Platforms

· Offshore Oil & Gas Platforms

· Marine & Coastal Facilities

· Chemical Processing Plants

· Wastewater Treatment Plants

· Power Generation Facilities

· Electrical Substations

· Cooling Towers

· Bridge Walkways

· Water Treatment Plants

· Maintenance Access Platforms

Compare Pultruded FRP Grating Series

Find the Right Grating for Your Project

Different bearing bar profiles are designed to meet different load and application requirements. Compare the key features below to select the most suitable Pultruded FRP Grating for your project.
