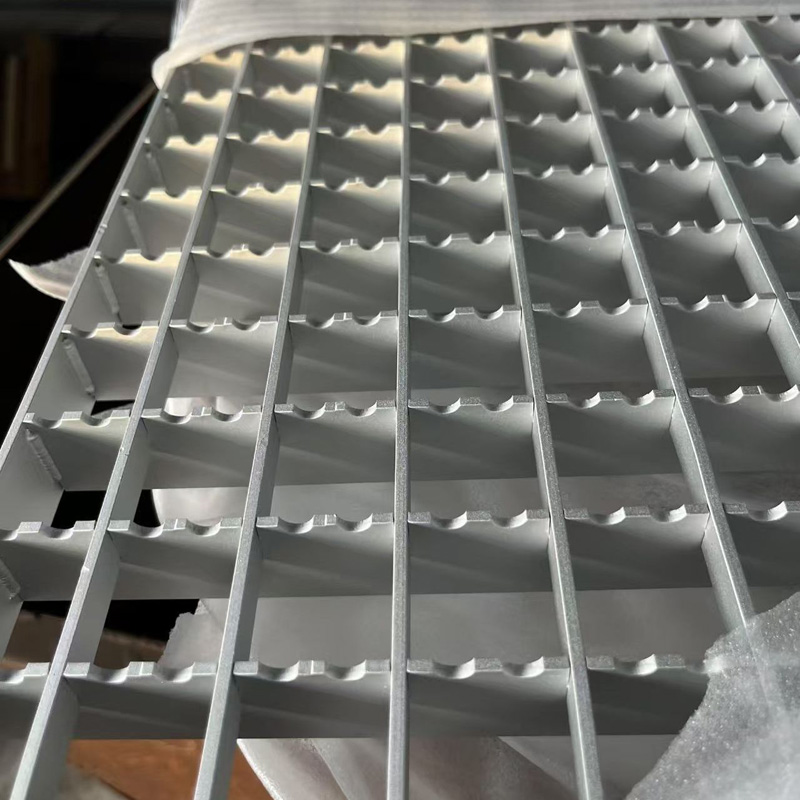

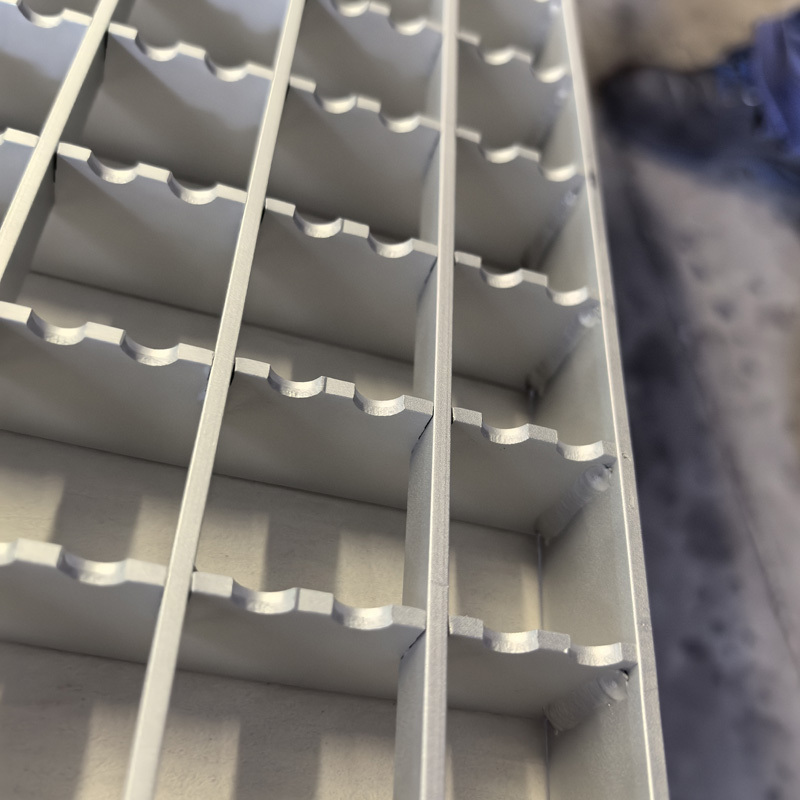

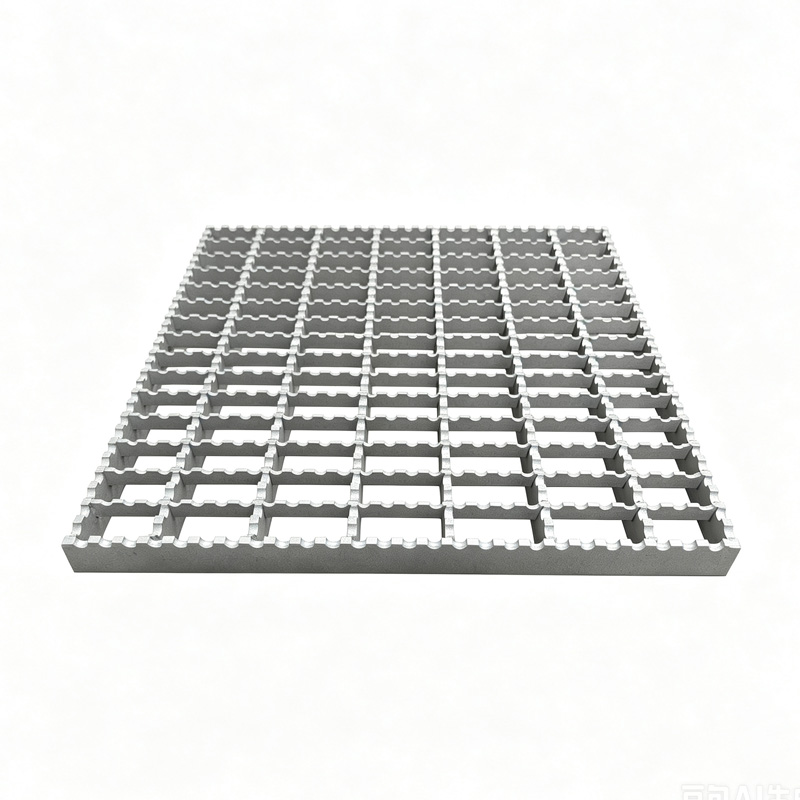

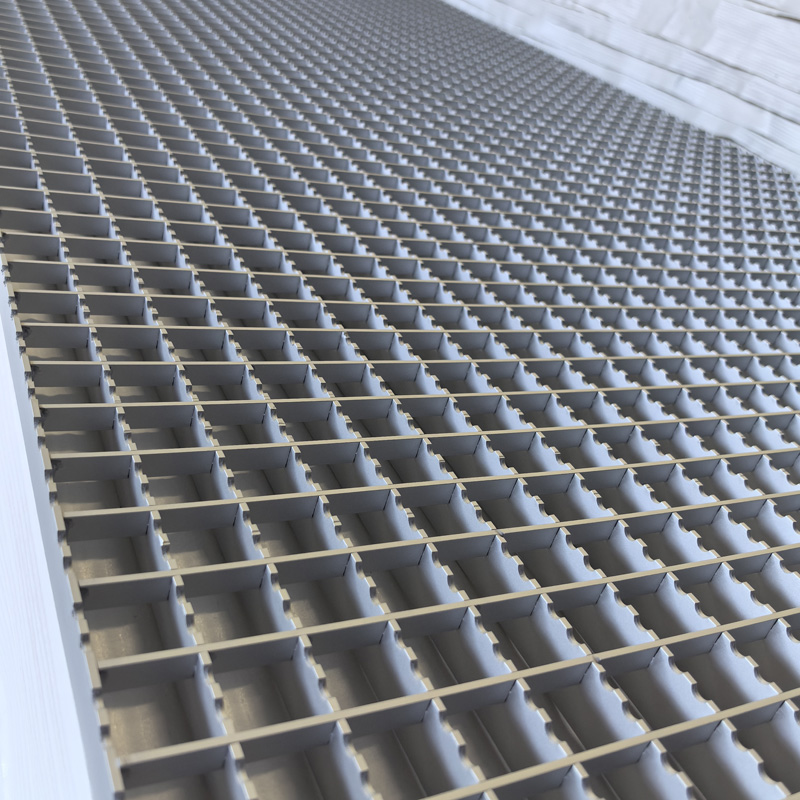

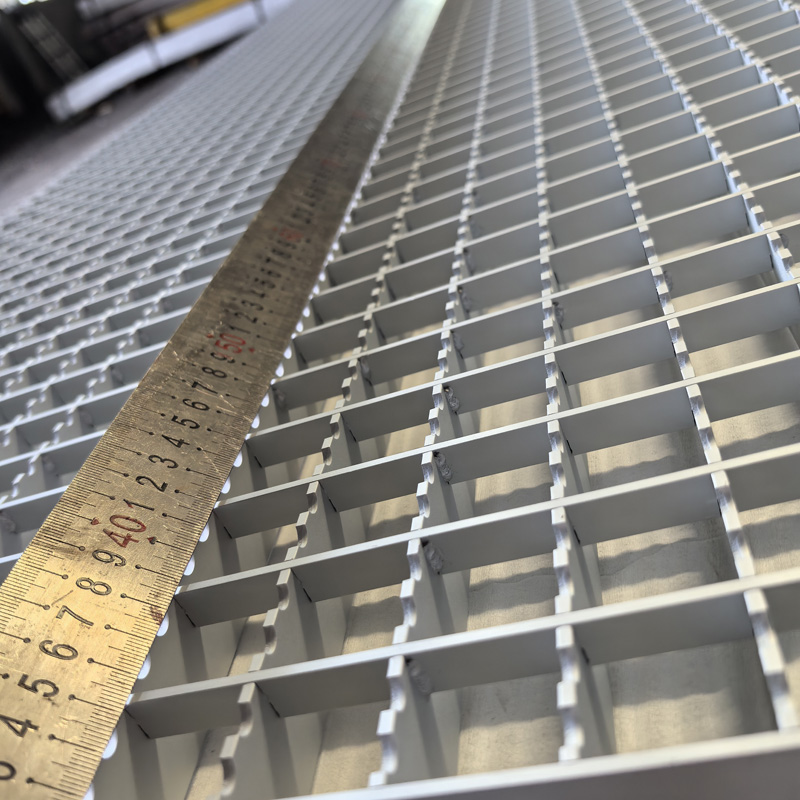

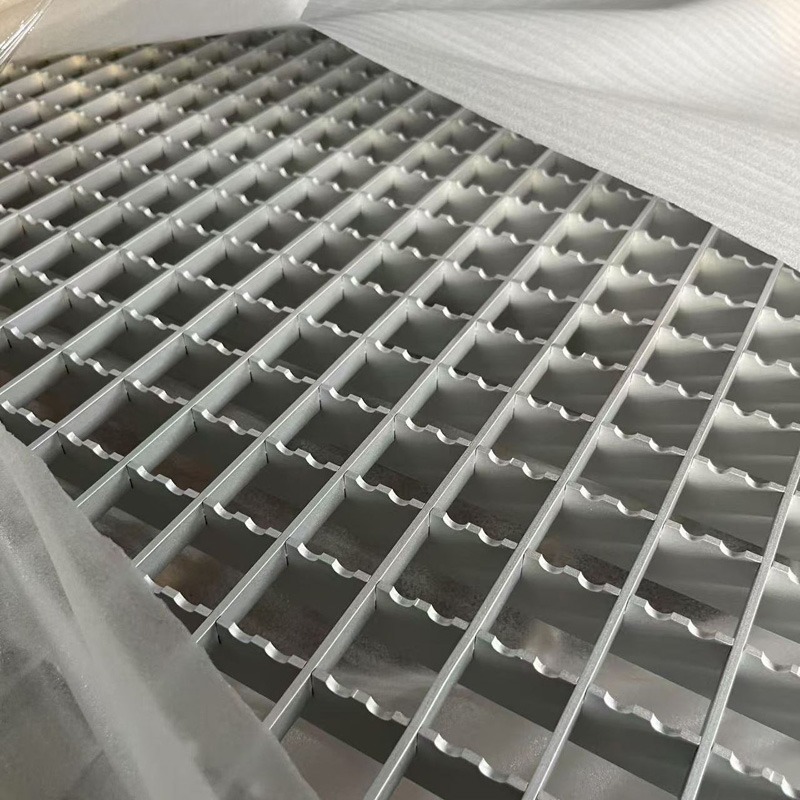

Serrated Press-locked Aluminum Grating is manufactured by inserting serrated bearing bars and cross bars into precisely slotted sections and permanently locking them together through a high-pressure press-locking process. The serrated surface provides enhanced slip resistance, making it an ideal choice for areas exposed to water, oil, or other slippery conditions.
Made from high-quality aluminum alloys, this grating combines lightweight construction with excellent corrosion resistance and structural strength. It is widely used in industrial platforms, marine facilities, walkways, and architectural projects where safety, durability, and easy installation are required.
Features & Characteristics
Superior Slip Resistance. The serrated bearing bar surface provides improved traction and safer footing in wet, oily, or high-risk environments.
Lightweight & High Strength. Aluminum construction offers an excellent strength-to-weight ratio, reducing structural loads while maintaining reliable performance.
Excellent Corrosion Resistance. Resistant to rust, moisture, and chemical exposure, making it suitable for harsh outdoor and industrial environments.
Press-locked Structural Integrity. The mechanical locking process creates a strong and stable connection between bearing bars and cross bars.
Durable & Low Maintenance. Requires minimal maintenance and provides long-term service performance.
Easy Installation & Handling. Lightweight panels simplify transportation, cutting, and installation compared with steel alternatives.
Customizable Options. Available with different bearing bar sizes, spacing configurations, panel dimensions, and surface finishes to meet specific project requirements.
Specifications
Item | Specification |
Material | 6063-T5/T6 alloy |
Manufacturing Method | Swaged-Locked |
Bearing Bar Sizes | 1’’(25.4 mm), 1-1/4’’(31.75 mm), 1-1/2’’(38.1 mm), etc. |
Bearing Bar Spacing | 1-3/16’’(30.16 mm), 2’’(50.8 mm) c/c |
Cross Bar Spacing | 2’’(50.8 mm), 4’’ (101.6 mm) c/c |
Surface Finish | Mill Finish, Anodized, Powder Coated |
Panel Size | Custom Size |
Finish Options
 | ||
| Mill Finish | Anodized | Power Coated |
| Mill Finish Mill Finish aluminum bars without additional coating. May show discoloration from welding and fabrication. | ||
| Anodized An electrochemical process that produces an oxide coating which provides additional corrosion resistance and a decorative finish. Clear or colored finished available | ||
| Powder Coated Specialty coatings may be specified in a wide range of colors. Some options include power coating, vinyl coating, enamel, or epoxy paints. | ||
Project Applications
Commercial Buildings：Used for pedestrian walkways, entrance platforms, mezzanines, and public access areas where appearance and durability are equally important.
Architectural Projects：Ideal for façades, sunshades, ceilings, decorative screens, and other architectural applications requiring a modern, clean look.
Industrial Platforms & Walkways：Suitable for maintenance platforms, equipment access walkways, and elevated working areas in manufacturing facilities.
Rooftop Mechanical Platforms：Provides lightweight, corrosion-resistant access around rooftop HVAC units and maintenance equipment.
Transportation Facilities：Applied in airports, railway stations, bridges, and pedestrian overpasses for safe and durable walking surfaces.
Marine & Coastal Environments：Its natural corrosion resistance makes it suitable for docks, waterfront facilities, and coastal structures exposed to moisture and salt air.
