Stair treads are prefabricated grating panels designed specifically for stair installations. Manufactured from welded, press-locked, or swage-locked grating, they combine high load-bearing capacity with excellent drainage and ventilation. Standard treads are supplied with nosing plates and side mounting plates for quick and secure installation.
Available in carbon steel, stainless steel, and aluminum, stair treads can be customized with plain or serrated bearing bars, various bar spacings, and multiple finishes to suit indoor and outdoor applications.
There are totally 4 models of stair treads according to the differences of front fenders and installation methods.
Stair tread is made of the steel grating that is widely used in different kinds of structural steel stairs and it’s of convenient installation and maintenance, firmness and beauty without logged water. The dimension of stair tread can be designated by the buyer’s requirement.
 |  |

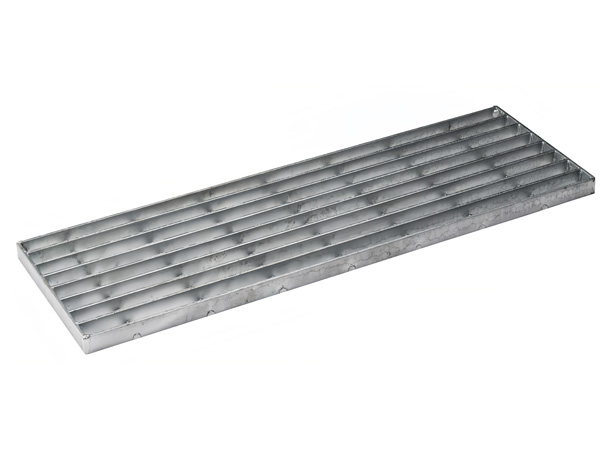

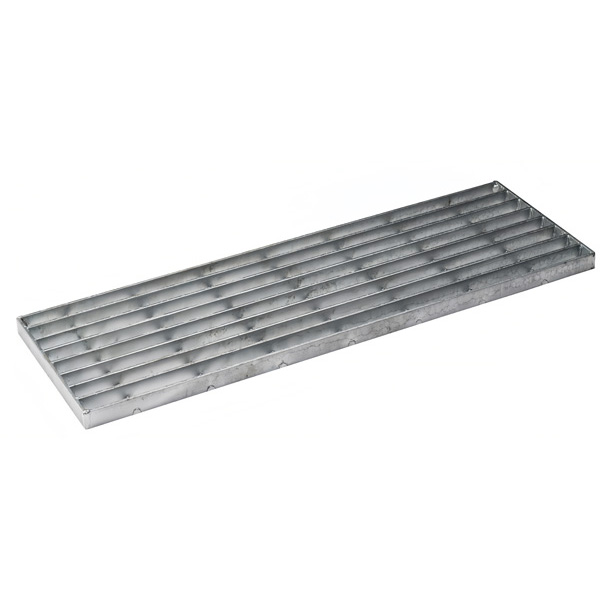

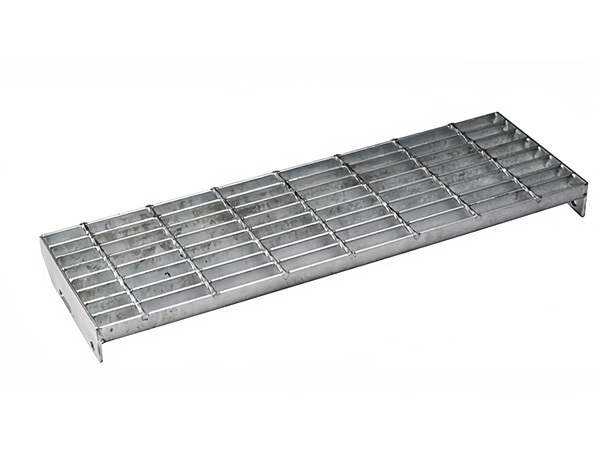

| T1 Front Fender: Without front fender Method of Installation: Welding fixation | T2 Front Fender: Without front fender Method of Installation: Bolt fixation |
 |  |

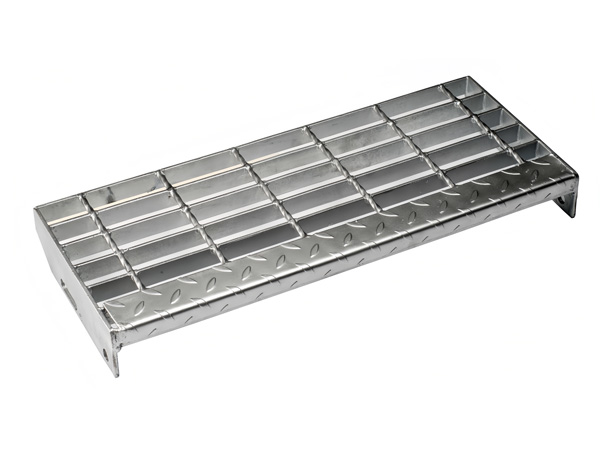

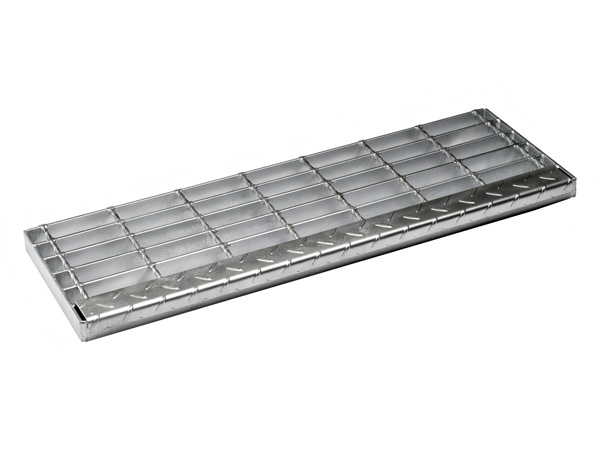

T3 Front Fender: Front fender with patterns Method of Installation: Welding fixation | T4 Front Fender: Front fender with patterns Method of Installation: Welding fixation |

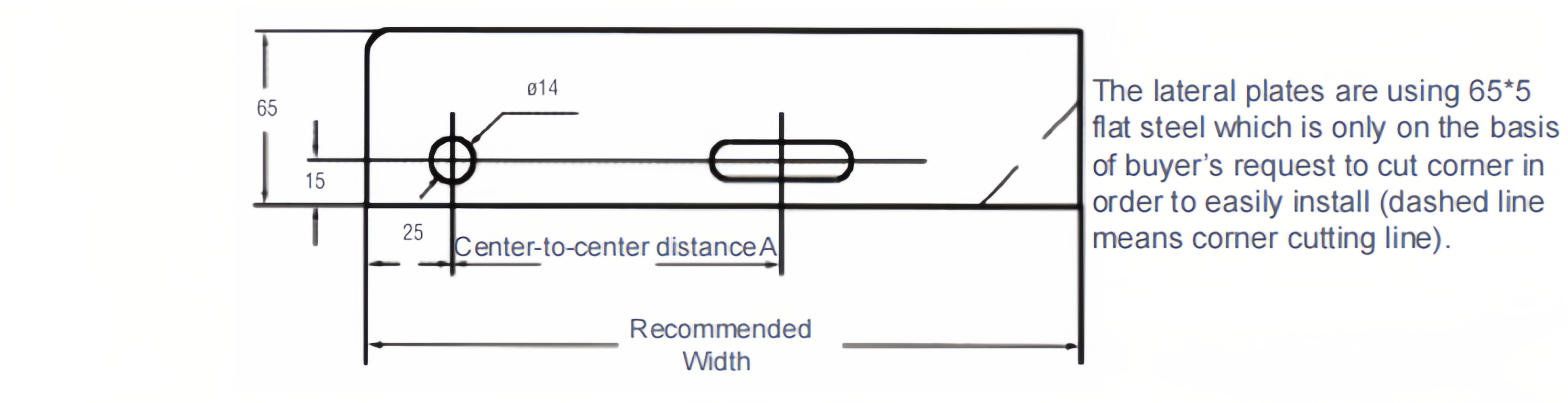

The relations between width and center-to-center distance of mounting hole in stair tread
Center-to-center distance of the flat bar (mm) | Recommended Width (mm) | ||||||
30 | 125 | 155 | 185 | 215 | 245 | 275 | 305 |
40 | 125 | 165 | - | 205 | 245 | 285 | 325 |
Center-to-center distance of mounting hole (mm) | 45 | 75 | 75 | 100 | 100 | 150 | 150 |
Features & Characteristics
High Slip Resistance. Serrated bearing bars and anti-slip nosing improve traction, providing enhanced safety in wet, oily, or icy environments.
Excellent Load Capacity. Designed to withstand heavy pedestrian traffic and industrial loads while maintaining structural stability.
Fast & Easy Installation. Supplied with welded end plates and mounting holes for convenient installation and replacement.
Corrosion Resistance. Available in galvanized carbon steel, stainless steel, or aluminum for long-term performance in corrosive environments.
Efficient Drainage & Ventilation. The open-grid design allows water, snow, dirt, and debris to pass through, reducing maintenance requirements.
Low Maintenance. Strong construction and protective surface treatments ensure long service life with minimal upkeep.
Customizable Design. Available in various widths, lengths, bar spacings, nosing types, and fixing methods to meet project specifications.
Project Application
Industrial Plants: Ideal for production facilities, factories, and processing plants where durability and worker safety are essential.
Offshore & Marine Platforms: Suitable for offshore platforms, shipyards, and marine structures exposed to harsh environmental conditions.
Oil, Gas & Petrochemical Facilities: Provides secure stair access in refineries, chemical plants, and energy projects.
Power Stations: Widely used on access stairways, maintenance platforms, and equipment structures.
Water & Wastewater Treatment Plants: The corrosion-resistant design performs well in humid and chemically aggressive environments.
Commercial & Public Buildings: Installed in office buildings, shopping centers, parking structures, stadiums, and public infrastructure where safe pedestrian access is required.
Mining & Heavy Industry: Designed for demanding environments with heavy-duty service requirements and high mechanical strength.
Transportation Infrastructure: Suitable for bridges, railway stations, airports, ports, and other public access facilities requiring durable stair systems.
