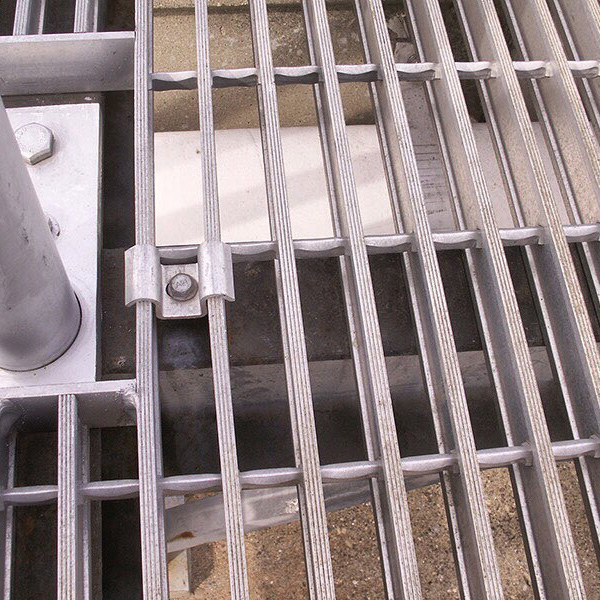

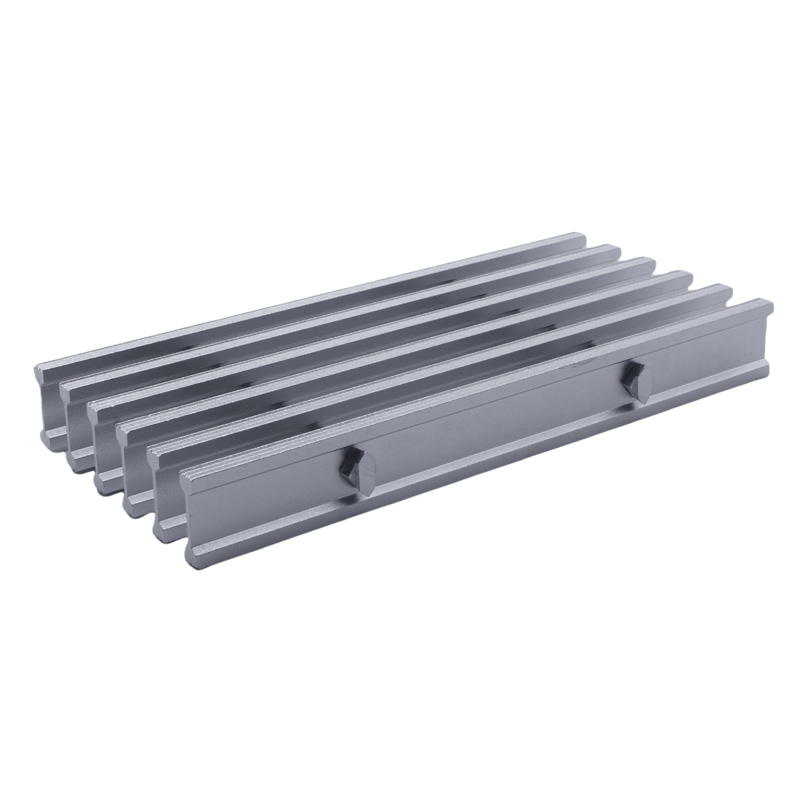

I-bar Swaged-locked Aluminum Grating is manufactured by inserting aluminum cross bars into pre-punched I-shaped bearing bars and permanently locking them through high-pressure swaging. The unique I-bar design provides a higher strength-to-weight ratio compared with traditional flat bars while reducing material usage and overall weight.
Made from high-quality aluminum alloys, this grating offers outstanding corrosion resistance, making it suitable for environments exposed to moisture, chemicals, and harsh weather conditions. It is widely used for platforms, walkways, stair treads, and access areas where lightweight construction and long-term durability are required.
Features & Characteristics
-Lightweight & High Strength. I-shaped bearing bars provide excellent load capacity while significantly reducing the overall weight of the grating.
-Excellent Corrosion Resistance. Aluminum construction offers natural resistance to rust, moisture, and chemical corrosion, ensuring long service life.
-High Strength-to-Weight Ratio. The optimized I-bar profile delivers superior structural performance with less material consumption.
-Slip-Resistant Surface. Available with serrated or anti-slip surfaces to improve safety in wet or slippery environments.
-Low Maintenance. Aluminum grating requires minimal maintenance and maintains its appearance over long-term use.
-Easy Installation & Handling. Lightweight panels are easier to transport, cut, and install, reducing labor costs during construction.
-Customizable Options. Available in various bearing bar heights, spacing configurations, panel sizes, and surface treatments to meet different project requirements.
Specifications
Item | Specification |
Material | 6063-T5/T6 alloy |
Manufacturing Method | Swaged-Locked |
Bearing Bar Sizes | 1’’(25.4 mm), 1-1/4’’(31.75 mm), 1-1/2’’(38.1 mm), etc. |
Bearing Bar Spacing | 1-3/16’’(30.16 mm), 2’’(50.8 mm) c/c |
Cross Bar Spacing | 2’’(50.8 mm), 4’’ (101.6 mm) c/c |
Surface Finish | Mill Finish, Anodized, Powder Coated |
Panel Size | Custom Size |
Product Code Example
SG indicates that the bearing bar section is rectangular, SGI indicates that the bearing bar section is I-shaped.
 | |
| 19-SG-4 | 19-SG-2 |
| 19-SGI-4 | 19-SGI-2 |
 | |
| 7-SG-4 | 7-SG-2 |
| 7-SGI-4 | 7-SGI-2 |

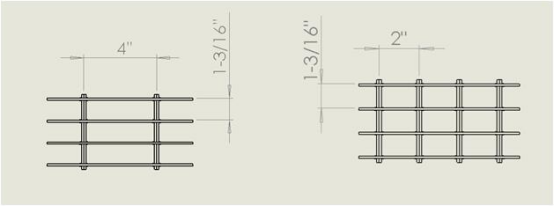

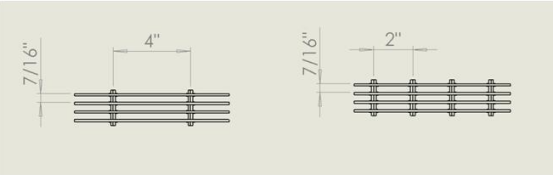

The main specifications are listed below.
Bearing Bar Spacing | Cross Bar Spacing | Bearing Bar Size |
1-3/16’’ | 4’’ | 1’’ x1/8’’, 1’’ x3/16, 1-1/4’’ x 1/8’’, 1-1/4’’ x3/16’’, 1-1/2’’ x3/16’’, 1-3/4’’ x3/16’’, 2’’ x3/16’’ ...... |
1-3/16’’ | 2’’ | |
15/16’’ | 4’’ | |
15/16’’ | 2’’ | |
11/16’’ | 4’’ | |
11/16’’ | 2’’ | |
9/16’’ | 4’’ | |
9/16’’ | 2’’ | |
7/16’’ | 4’’ | |
7/16’’ | 2’’ |
Finish Options
 | ||
| Mill Finish | Anodized | Power Coated |
| Mill Finish Mill Finish aluminum bars without additional coating. May show discoloration from welding and fabrication. | ||
| Anodized An electrochemical process that produces an oxide coating which provides additional corrosion resistance and a decorative finish. Clear or colored finished available | ||
| Powder Coated Specialty coatings may be specified in a wide range of colors. Some options include power coating, vinyl coating, enamel, or epoxy paints. | ||

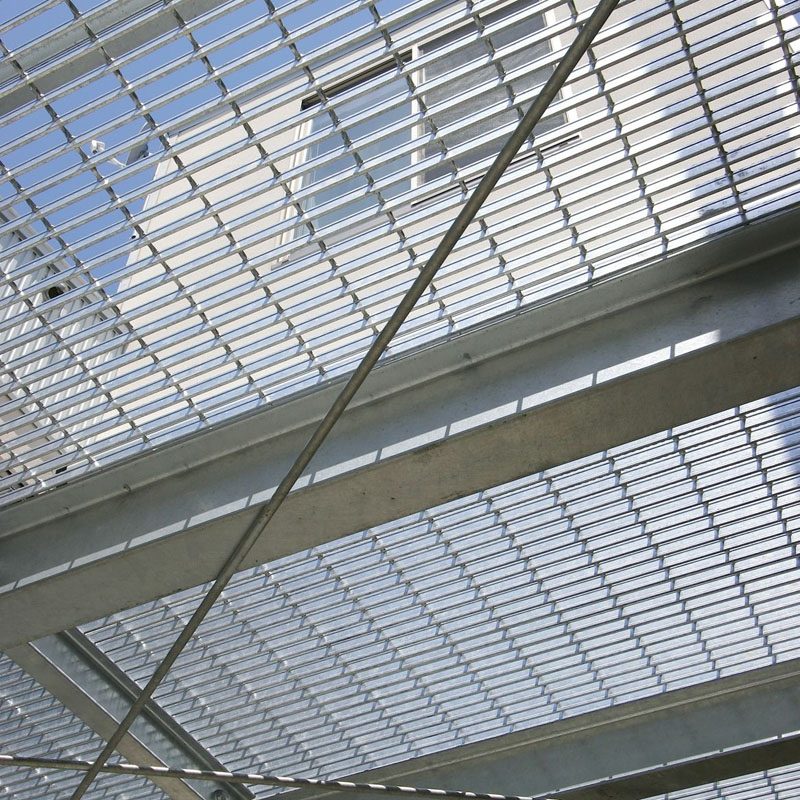

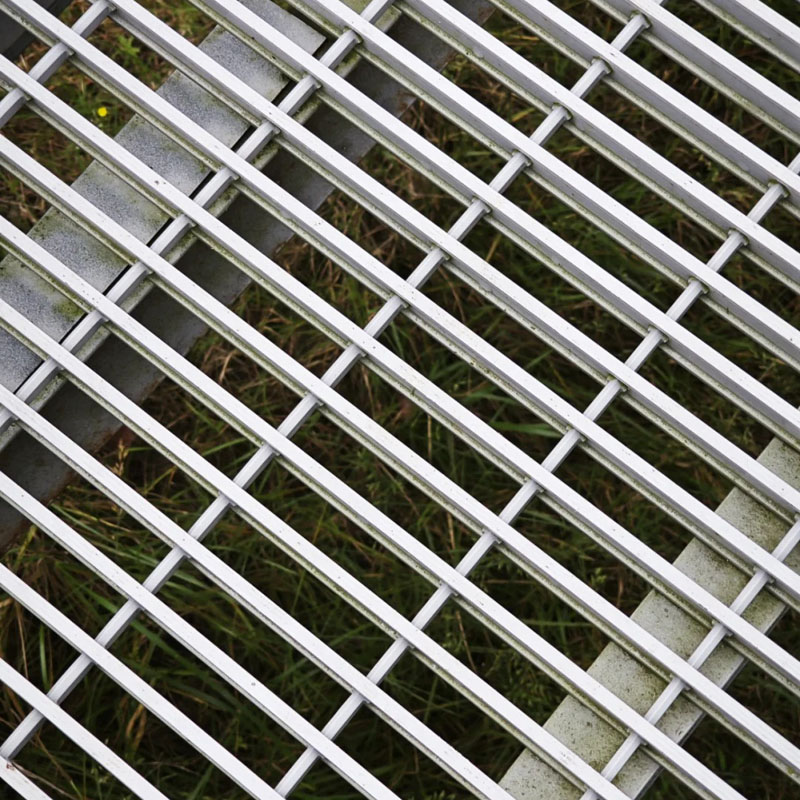

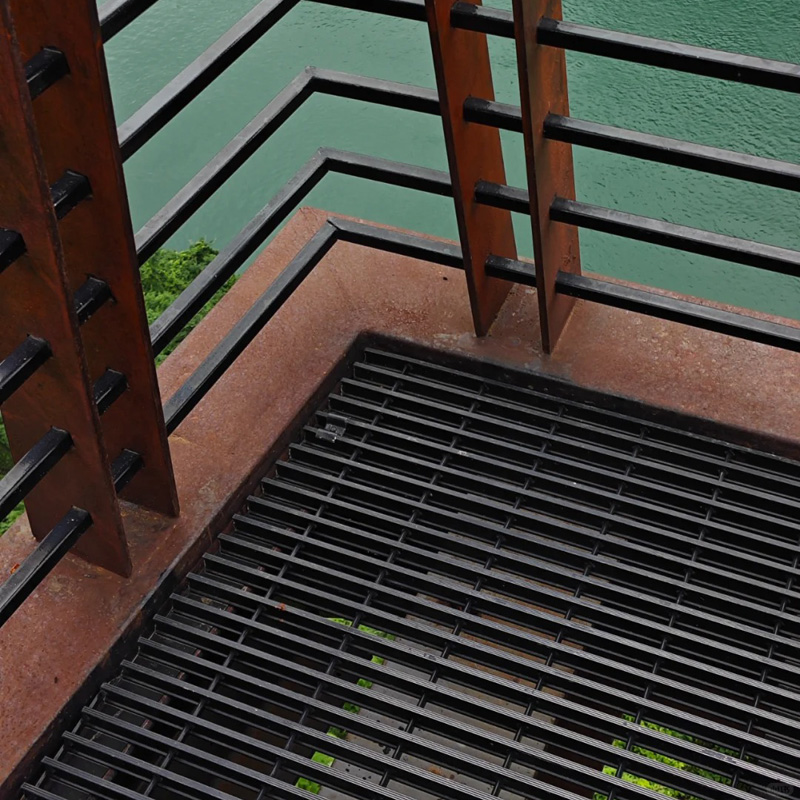

Project Applications
Offshore & Marine Facilities: Aluminum I-bar grating is widely used for offshore platforms, ship decks, marine walkways, and access platforms due to its lightweight structure and excellent resistance to saltwater corrosion.
Industrial Platforms & Walkways: Suitable for factory platforms, equipment access areas, maintenance walkways, and elevated structures where strong load capacity and easy installation are required.
Rooftop Mechanical Platforms: Provides a lightweight and durable solution for HVAC equipment platforms, service walkways, and rooftop maintenance areas without adding excessive structural load.
Chemical & Petrochemical Plants: The corrosion-resistant aluminum construction makes it suitable for areas exposed to chemicals, moisture, and demanding industrial environments.
Wastewater Treatment Facilities: Used for operating platforms, inspection walkways, and access covers where resistance to water and corrosion is essential.
Commercial Buildings & Architectural Projects: With its clean appearance and lightweight design, it is commonly applied in shopping centers, parking structures, public facilities, and architectural walkways.
