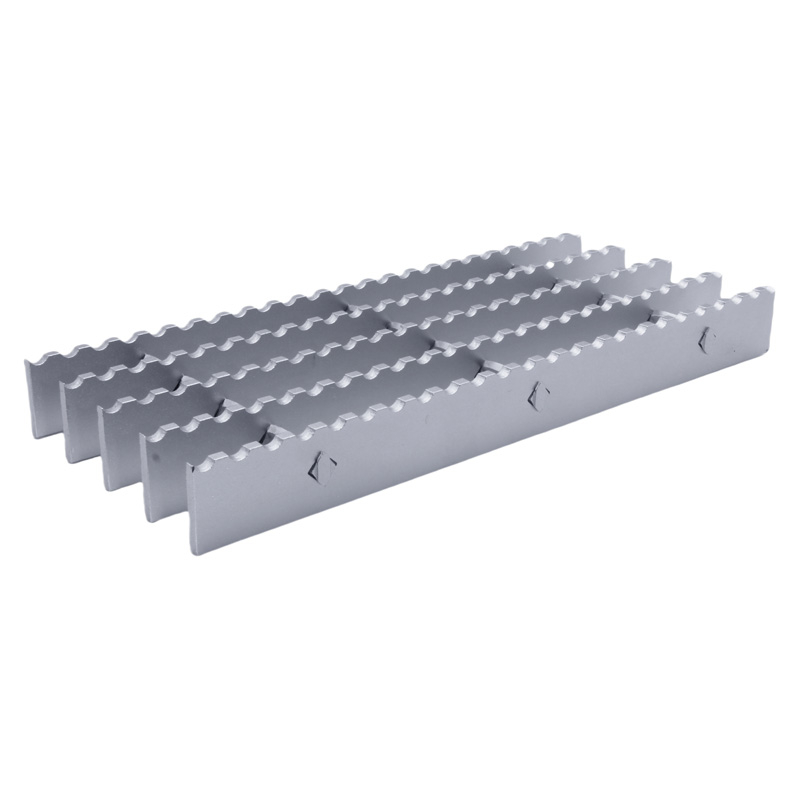

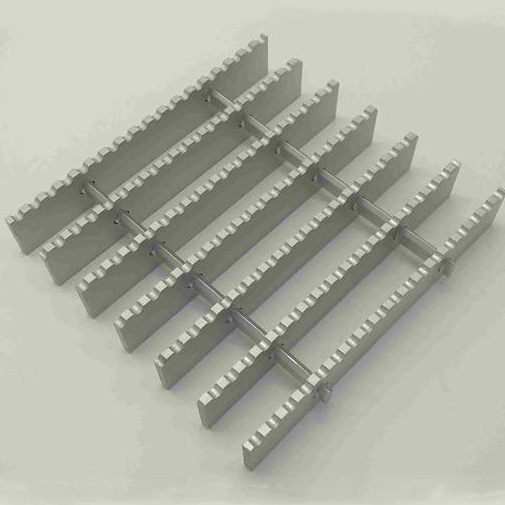

Serrated Swaged-locked Aluminum Grating is manufactured by mechanically swaging cross bars into pre-punched serrated bearing bars under high pressure, creating a rigid, flush, and aesthetically pleasing panel. The serrated surface provides enhanced slip resistance, making it ideal for wet, oily, or outdoor environments where pedestrian safety is critical.
Compared with plain aluminum grating, the serrated bearing bars significantly improve traction while maintaining the lightweight, corrosion-resistant, and maintenance-free advantages of aluminum.
Features & Characteristics
- Excellent Slip Resistance. Serrated bearing bars provide enhanced traction for wet and slippery environments.
- Lightweight. About one-third the weight of steel, making handling and installation easier.
- Corrosion Resistant. Naturally resistant to rust and suitable for outdoor and corrosive environments.
- High Strength. Offers excellent load capacity with a high strength-to-weight ratio.
- Low Maintenance. Long service life with minimal maintenance requirements.
- Architectural Appearance. Flush-locked construction provides a clean and attractive finish.
- Custom Fabrication. Available in various sizes, spacings, and surface finishes to meet project requirements.
Specifications
Item | Specification |
Material | 6063-T5/T6 alloy |
Manufacturing Method | Swaged-Locked |
Bearing Bar Sizes | 1’’(25.4 mm), 1-1/4’’(31.75 mm), 1-1/2’’(38.1 mm), etc. |
Bearing Bar Spacing | 1-3/16’’(30.16 mm), 2’’(50.8 mm) c/c |
Cross Bar Spacing | 2’’(50.8 mm), 4’’ (101.6 mm) c/c |
Surface Finish | Mill Finish, Anodized, Powder Coated |
Panel Size | Custom Size |
Finish Options
 | ||
| Mill Finish | Anodized | Power Coated |
| Mill Finish Mill Finish aluminum bars without additional coating. May show discoloration from welding and fabrication. | ||
| Anodized An electrochemical process that produces an oxide coating which provides additional corrosion resistance and a decorative finish. Clear or colored finished available | ||
| Powder Coated Specialty coatings may be specified in a wide range of colors. Some options include power coating, vinyl coating, enamel, or epoxy paints. | ||
Project Applications

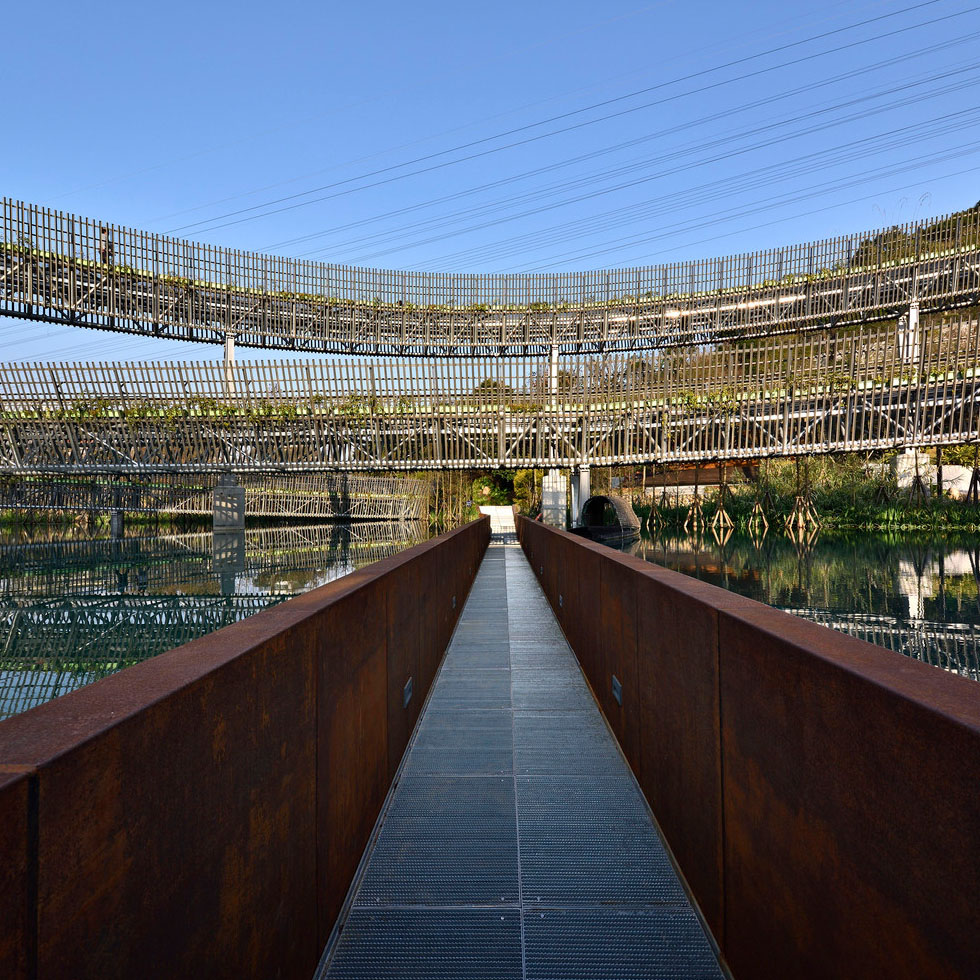

Offshore & Marine Platforms: Ideal for offshore platforms, docks, and marine facilities where corrosion resistance and reliable slip protection are essential in harsh coastal environments.

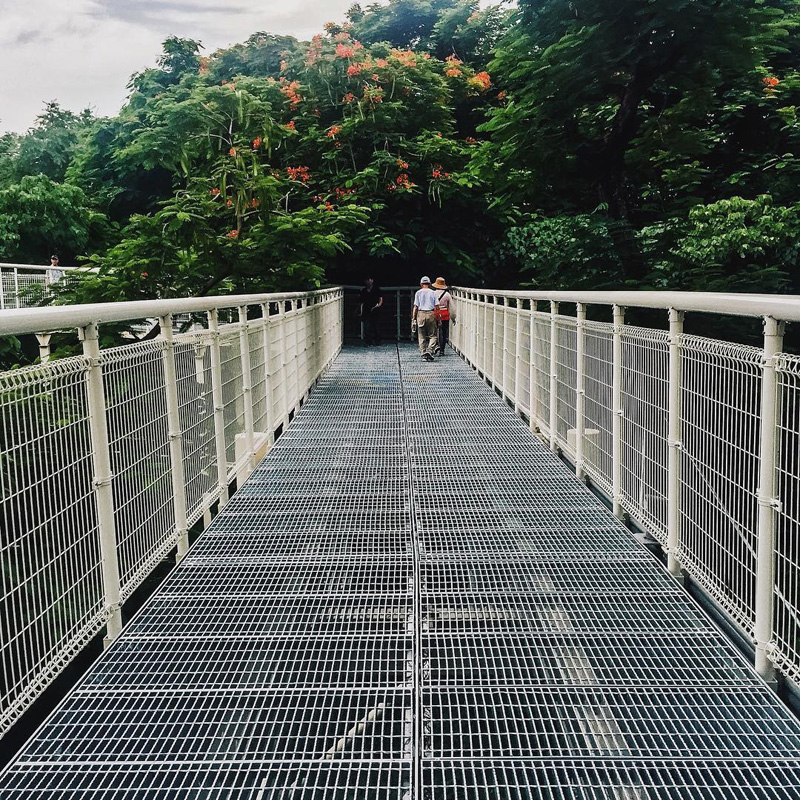

Industrial Walkways: Provides a safe and durable walking surface for factories, manufacturing plants, warehouses, and industrial access platforms.
Rooftop Mechanical Platforms: Widely used around rooftop HVAC units, cooling towers, and maintenance walkways due to its lightweight construction and weather resistance.
Chemical & Petrochemical Plants: Suitable for processing facilities exposed to chemicals, moisture, and corrosive atmospheres, offering long-lasting performance with minimal maintenance.
Wastewater Treatment Facilities: Performs well in wet and corrosive environments, making it an excellent choice for walkways, operating platforms, and maintenance access areas.

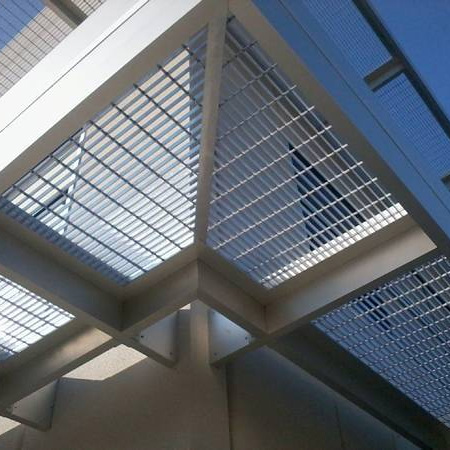

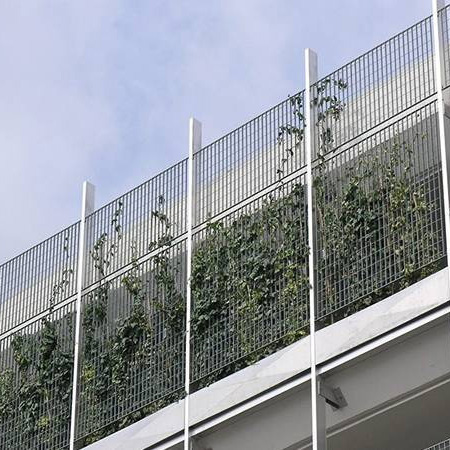

Commercial Buildings: Used in architectural walkways, equipment platforms, service areas, and other commercial applications where both appearance and safety are important.
