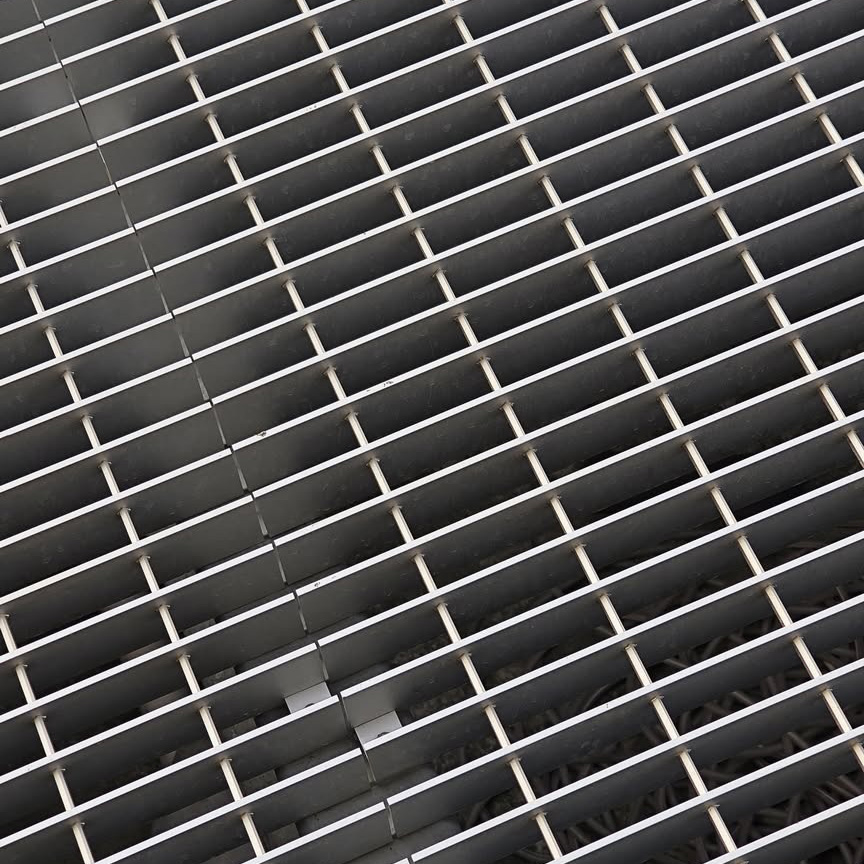

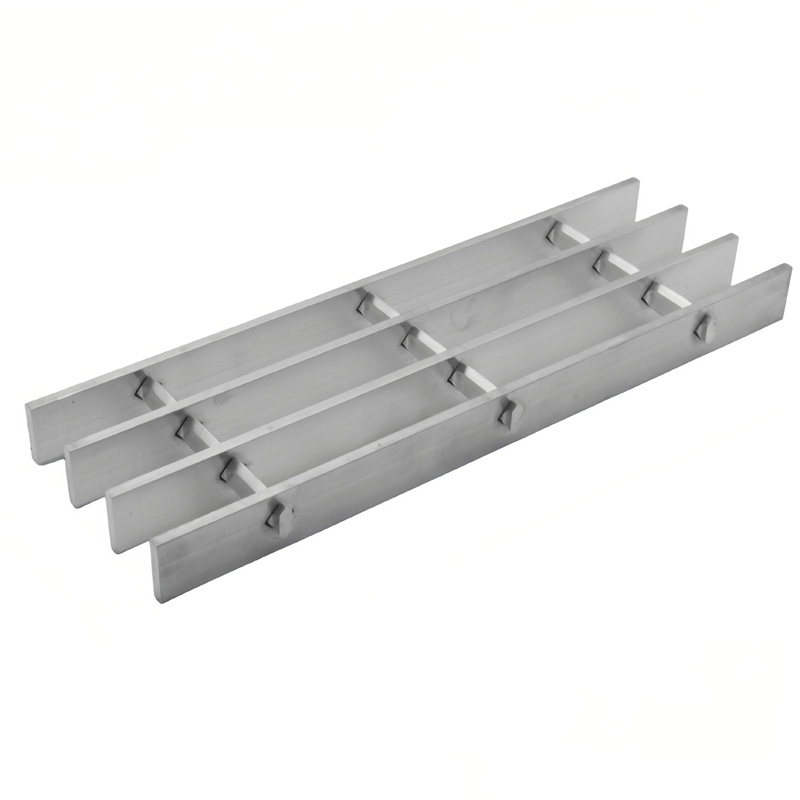

Plain Swaged-Locked Aluminum Grating is manufactured by mechanically swaging cross bars into pre-punched bearing bars, creating a rigid, clean, and visually appealing panel without welding. Its smooth bearing bar surface provides comfortable pedestrian access while maintaining excellent strength, drainage, and ventilation.
Manufactured from high-quality aluminium alloys such as 6061-T6 and 6063-T6, swaged-locked aluminium grating is lightweight, corrosion-resistant, and virtually maintenance-free. It is widely used in commercial buildings, architectural projects, walkways, platforms, and public facilities where appearance and durability are equally important.
Features & Characteristics
- Lightweight Construction. Aluminium provides an excellent strength-to-weight ratio, making handling and installation easier than steel grating.
- Excellent Corrosion Resistance. Naturally resistant to corrosion and suitable for outdoor, coastal, and humid environments without additional surface treatment.
- Smooth Walking Surface. Plain bearing bars provide a flat and comfortable walking surface for pedestrian traffic.
- High Strength & Stability. Swaged-lock construction creates a rigid panel with excellent load distribution and structural integrity.
- Modern Architectural Appearance. Clean lines and concealed connections make it an ideal choice for architectural and commercial projects.
- Low Maintenance. Aluminium requires minimal maintenance while maintaining its appearance over many years.
- Custom Manufacturing. Available in various bearing bar sizes, spacings, panel dimensions, and finishes to meet project requirements.
Specifications
Item | Specification |
Material | 6063-T5/T6 alloy |
Manufacturing Method | Swaged-Locked |
Bearing Bar Sizes | 1’’(25.4 mm), 1-1/4’’(31.75 mm), 1-1/2’’(38.1 mm), etc. |
Bearing Bar Spacing | 1-3/16’’(30.16 mm), 2’’(50.8 mm) c/c |
Cross Bar Spacing | 2’’(50.8 mm), 4’’ (101.6 mm) c/c |
Surface Finish | Mill Finish, Anodized, Powder Coated |
Panel Size | Custom Size |
Finish Options
 | ||
| Mill Finish | Anodized | Power Coated |
| Mill Finish Mill Finish aluminum bars without additional coating. May show discoloration from welding and fabrication. | ||
| Anodized An electrochemical process that produces an oxide coating which provides additional corrosion resistance and a decorative finish. Clear or colored finished available | ||
| Powder Coated Specialty coatings may be specified in a wide range of colors. Some options include power coating, vinyl coating, enamel, or epoxy paints. | ||

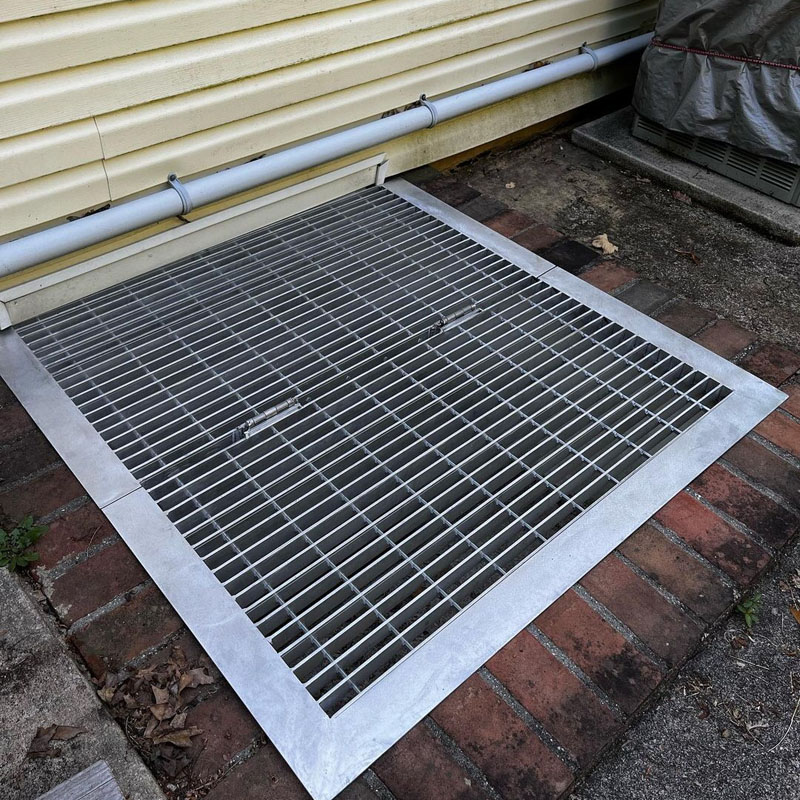

Project Applications
Commercial Buildings: Ideal for office buildings, shopping centres, and commercial complexes requiring durable and attractive flooring solutions.

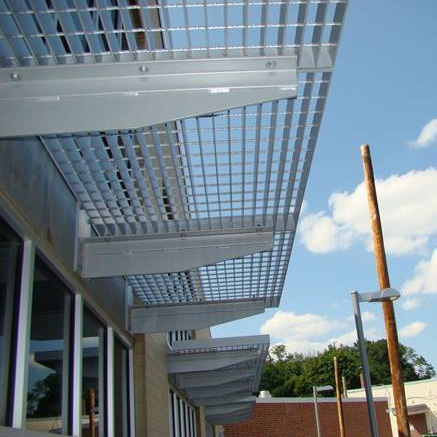

Architectural Facades & Sunshades: Widely used for façade screening, sunshades, ceilings, and decorative architectural applications.

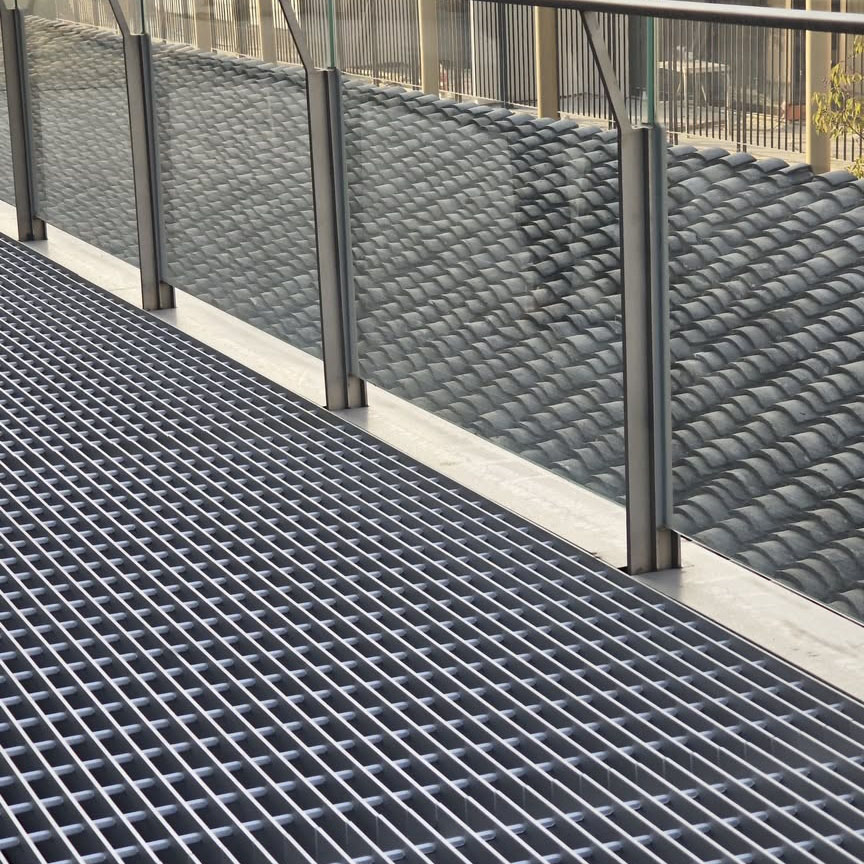

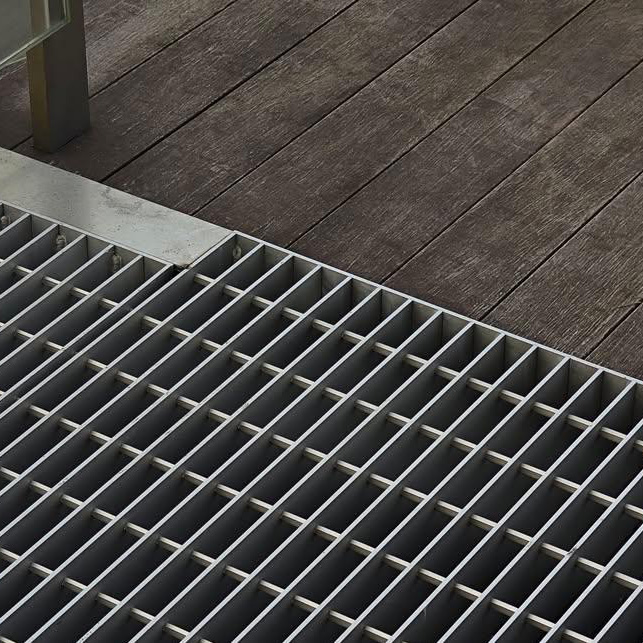

Pedestrian Walkways: Suitable for walkways, bridges, elevated platforms, and public access areas.
Rooftop & Mechanical Platforms: Provides safe access to rooftop equipment, HVAC systems, and maintenance platforms.
Public Facilities: Used in airports, railway stations, stadiums, schools, and other public infrastructure projects.
Marine & Coastal Projects: Excellent corrosion resistance makes it suitable for docks, marinas, waterfront developments, and coastal walkways.
