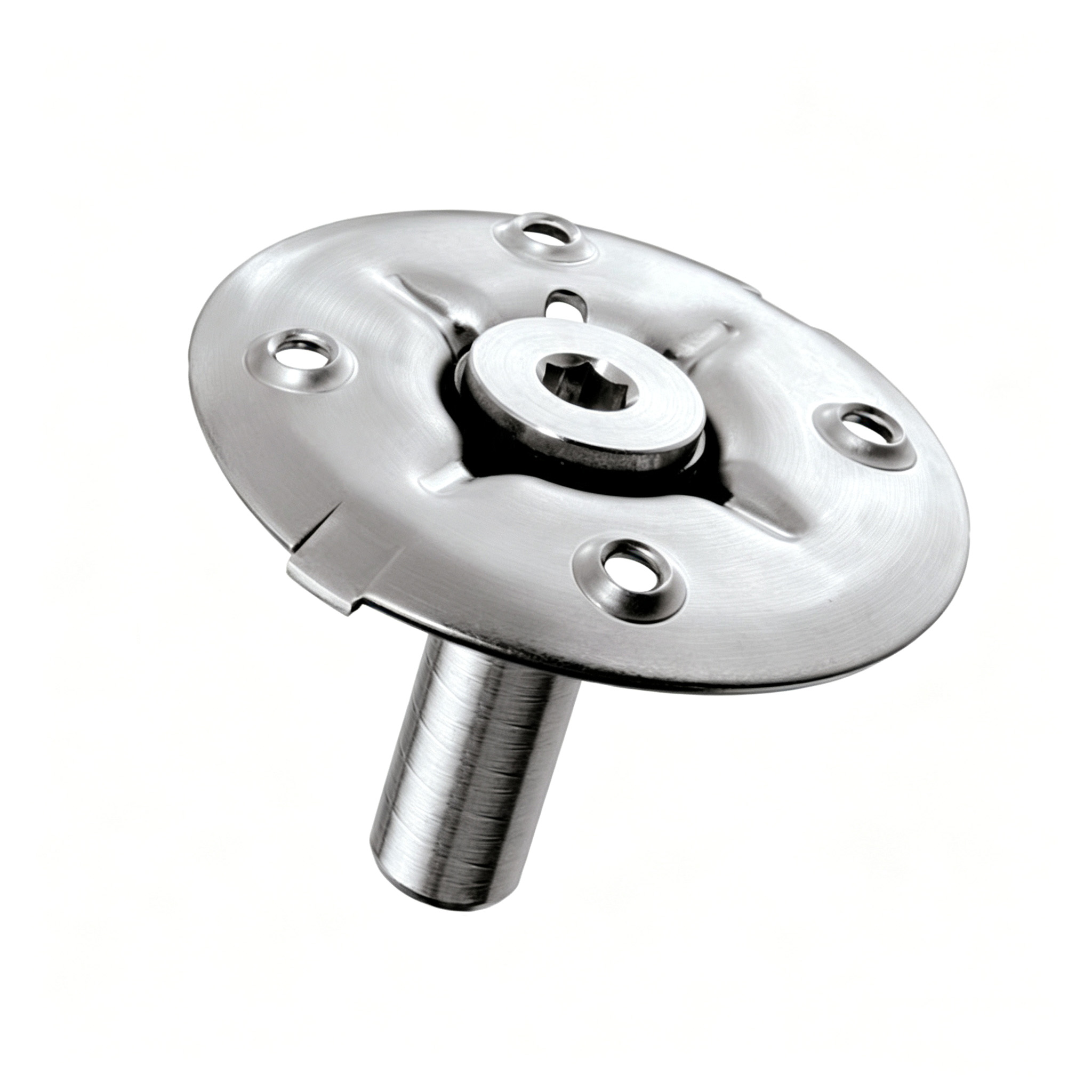

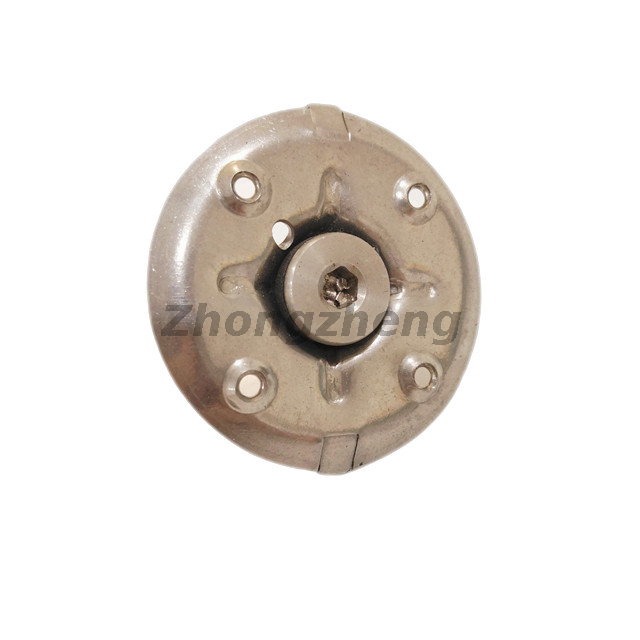

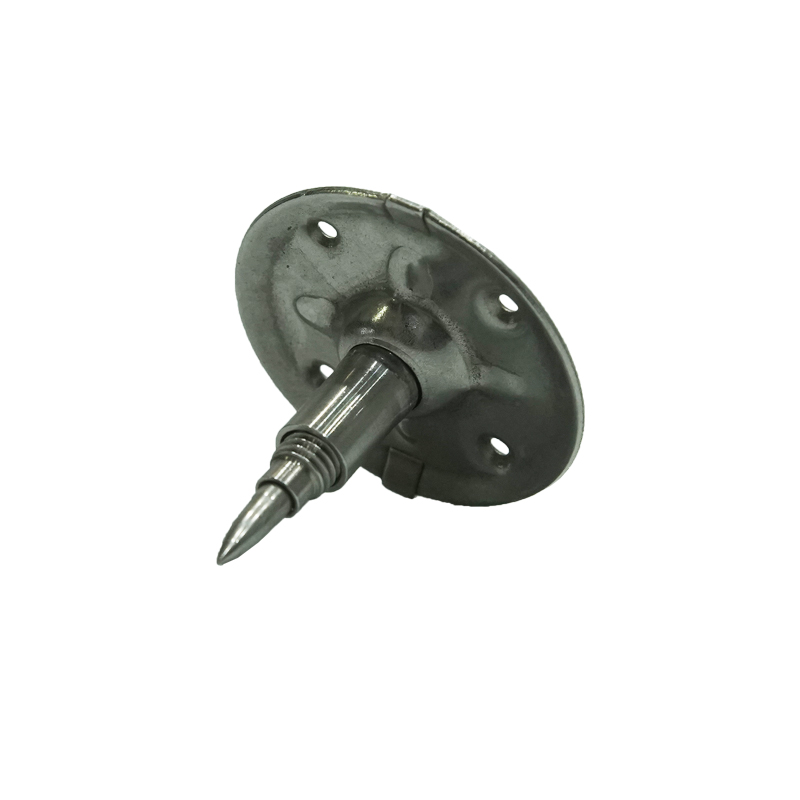

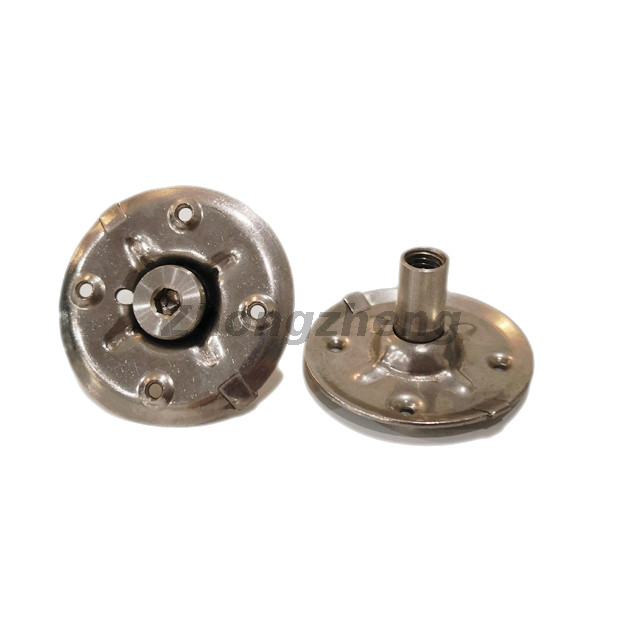

Disc Clips provide a reliable fixing solution for FRP grating, offering secure attachment and excellent stability in various applications.

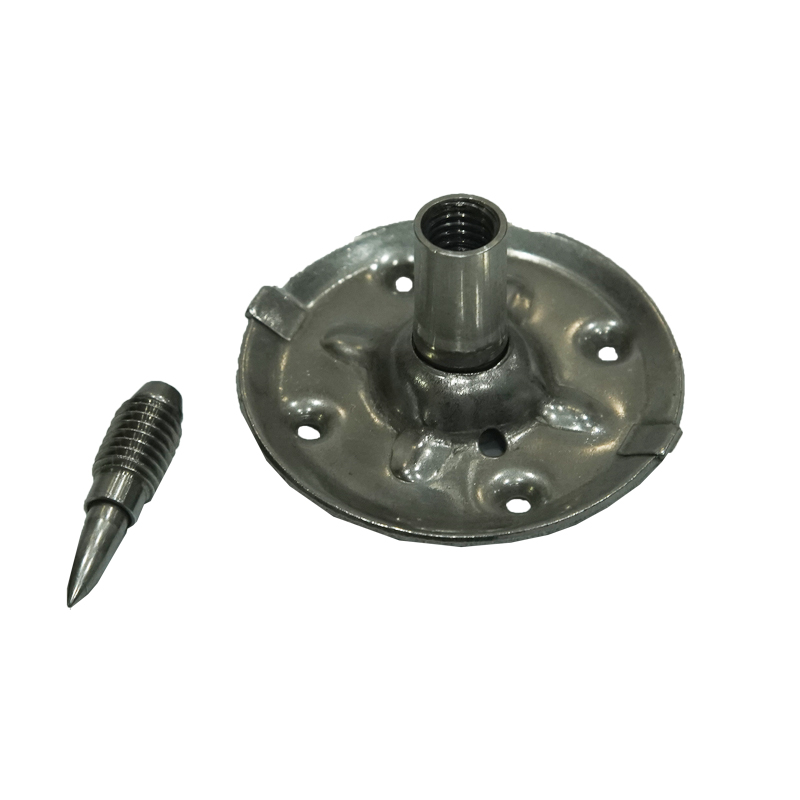

Assembly: Disc Clip, Bolt, Nut & Washer
Installation: Installed from the top surface of FRP grating panels, the Disc Clip clamps the grating to the support structure for quick installation and easy maintenance.
Material: Carbon Steel
Surface Treatment: Dacromet Coating
Specifications
Production Model | Disc Name | Fixed Height (mm) |
M8*30# | CKL-M8+BXP-27/33 | 27-33mm |
M8*35# | CKL-M8+BXP-30/38 | 30-38mm |
M8*40# | CKL-M8+BXP-37/43 | 37-43mm |

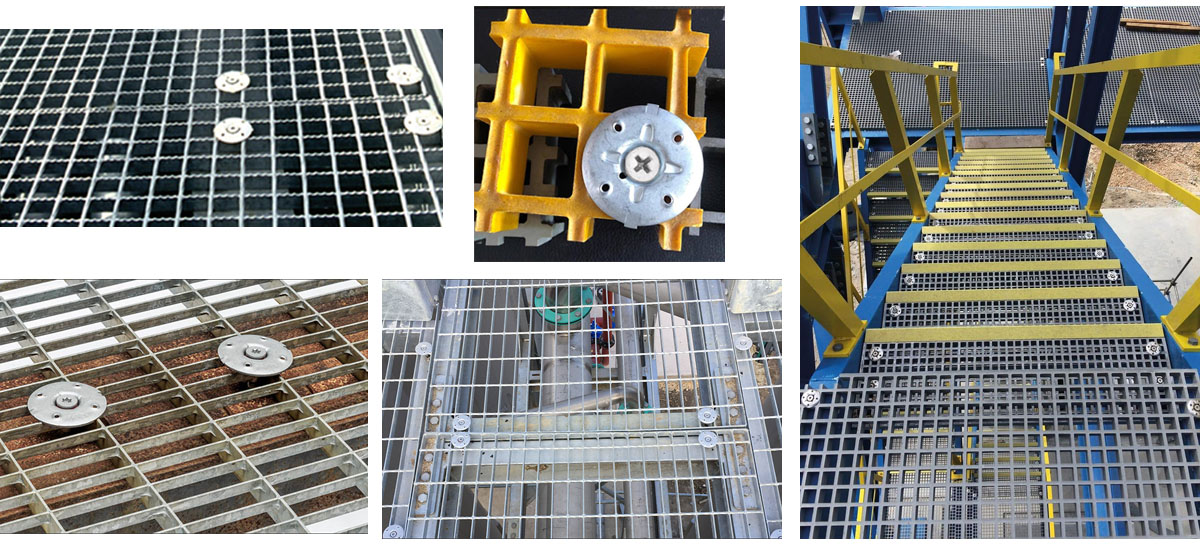

Application
