Whether used as solid trench covers, walkways, flooring overlays, or structural panels, our pultruded fiberglass plates provide a durable, low-maintenance alternative to traditional steel, aluminum, or concrete decking.

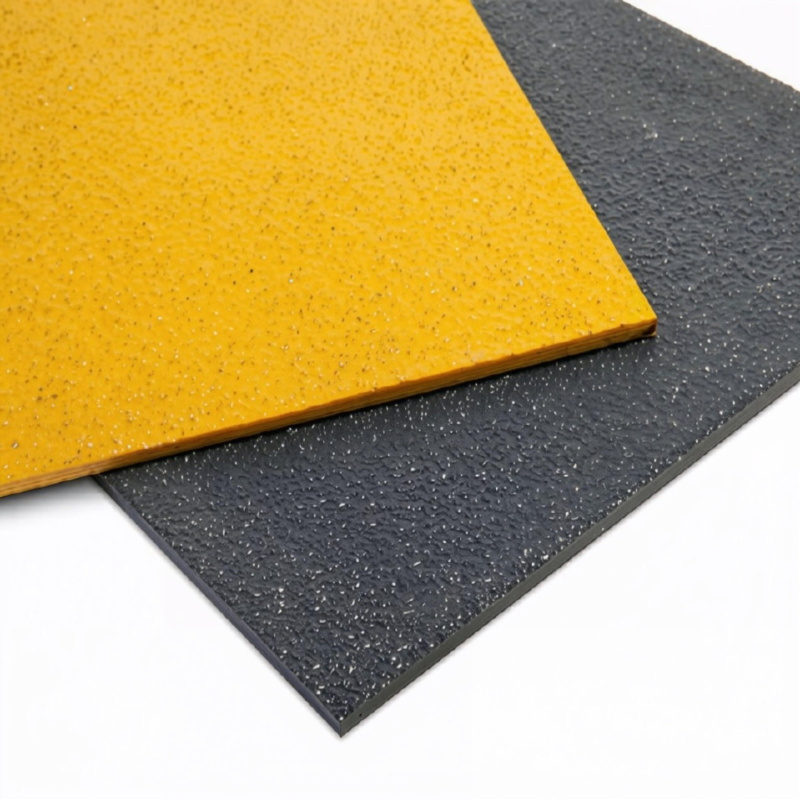

Product Name | Fiberglass Flat Plate |
Manufacturing Process | Continuous Pultrusion Process |
Material Composition | E-Glass Fiber Roving/Mat + Resin Matrix |
Resin Options | Polyester (Orthophthalic / Isophthalic), Vinyl Ester, Phenolic |

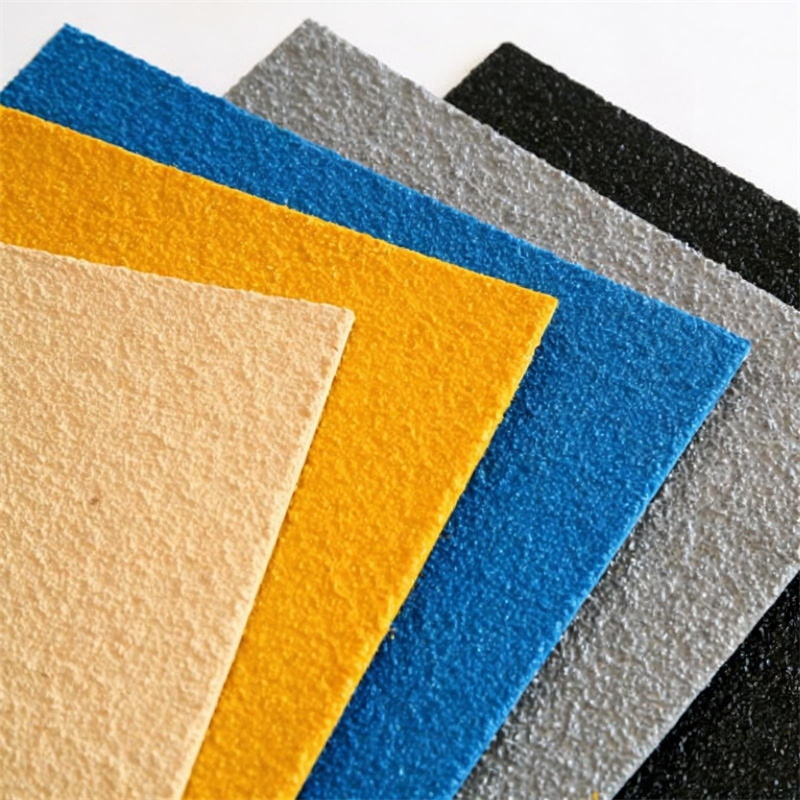

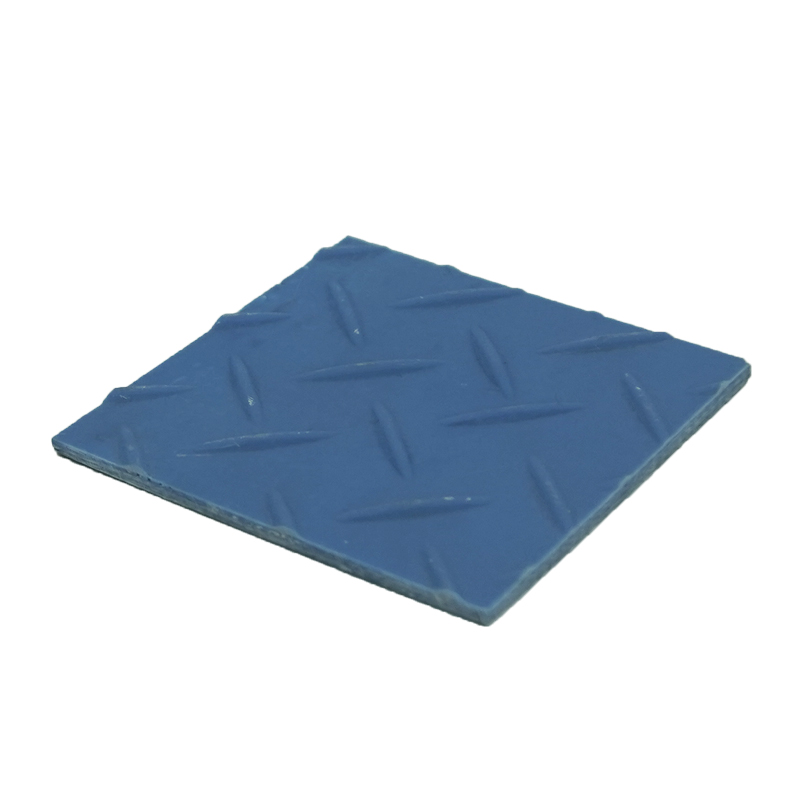

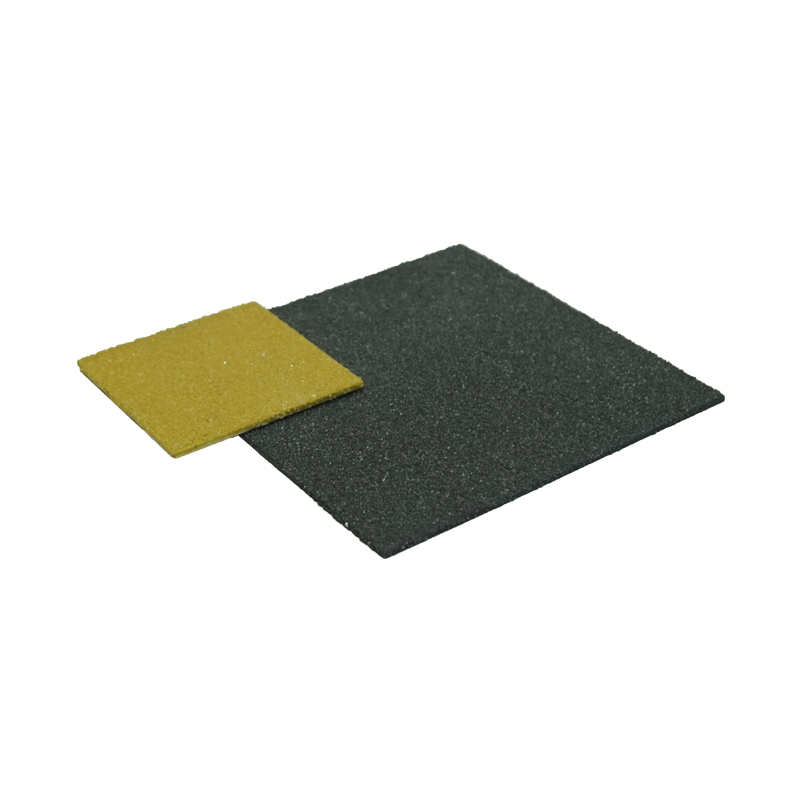

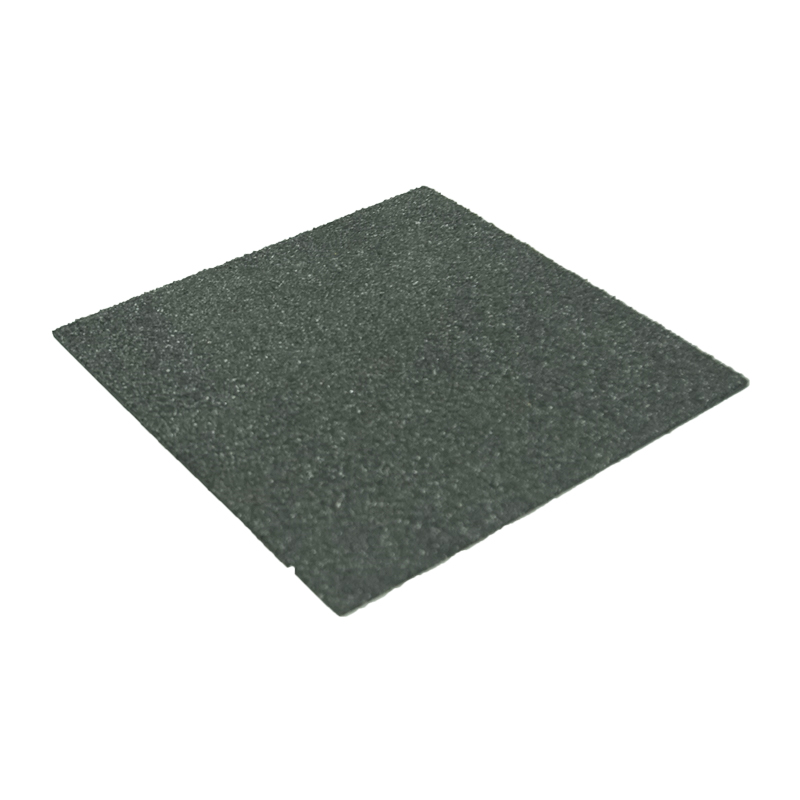

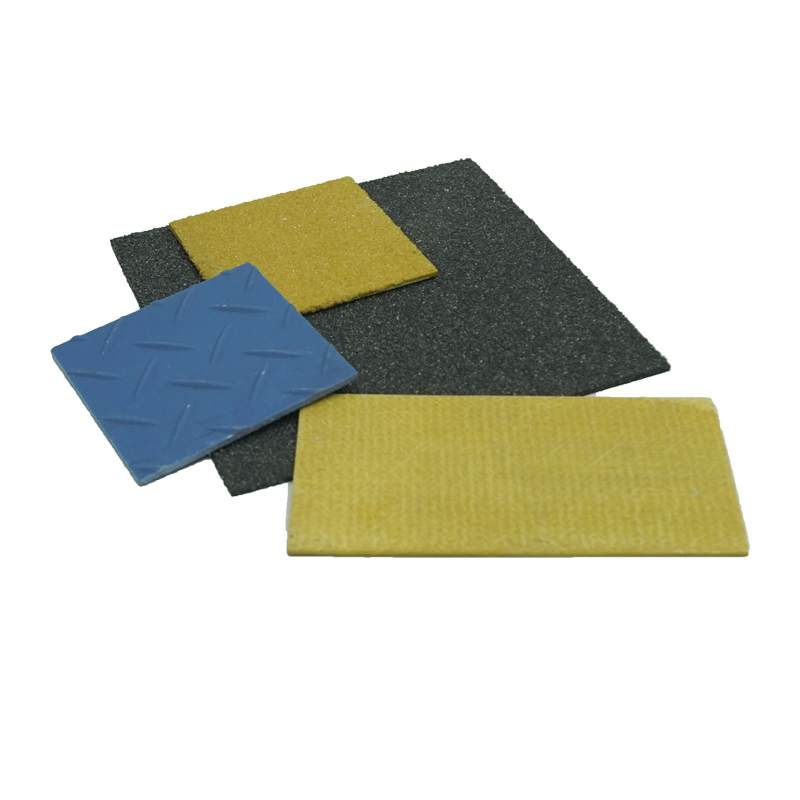

Surface Finish | Quartz Gritted Anti-Slip Finish / Smooth / Diamond Pattern |
Length | Custom lengths cut to order |
Color Options | Dark Grey, Yellow, Safety Orange, Light Grey (RAL Colors available) |
Specifications
View / Instance | Type | Dimension (mm) | Weight (kg/m) |
Flat Plate | Flat plate/panel | Thickness×Width | |
FP32 | 3.2x1220 | 7.42 | |
FP64 | 6.4×1220 | 14.84 | |
FP95 | 9.5×1220 | 22.02 | |
FP127 | 12.7×1220 | 29.44 | |
FP152 | 15.2x1220 | 35.30 | |
FP190 | 19×1220 | 44.10 |
Key Features & Benefits
Superior Slip Resistance: Coated with an anti-slip coarse grit surface to reduce slips and falls in hazardous, wet, or oily environments.
Corrosion & Chemical Resistant: Built with premium resin formulations to withstand harsh chemicals, acid/alkali exposures, salt air, and moisture.
High Strength & Lightweight: Delivers high longitudinal tensile and flexural strength while being significantly lighter than steel plate, simplifying transport and installation.
Non-Conductive & Flame Retardant: High dielectric strength makes it ideal for electrical applications; optional fire-retardant resins meet ASTM E84 flame-spread standards.
UV & Weather Resistant: Enhanced with UV inhibitors for long service life in outdoor and marine environments.
Applications
FRP Pultruded Plates are widely specified across a variety of demanding industrial and commercial sectors, including:
Industrial Flooring & Walkways: Solid bridge decking, mezzanine flooring, and platform covers.
Trench & Duct Covers: Safe, removable covers for chemical plants, utility trenches, and wastewater facilities.
Stair Treads & Landing Platforms: Slip-resistant overlay panels for stairs and ramps.
Marine & Offshore Operations: Decks, docks, and piers exposed to harsh saltwater conditions.
Electrical Utilities: Substation flooring, transformer containment pads, and non-conductive access panels.
Chemical & Food Processing: Clean, corrosion-free wall and floor panels for aggressive chemical processing zones.
 | |

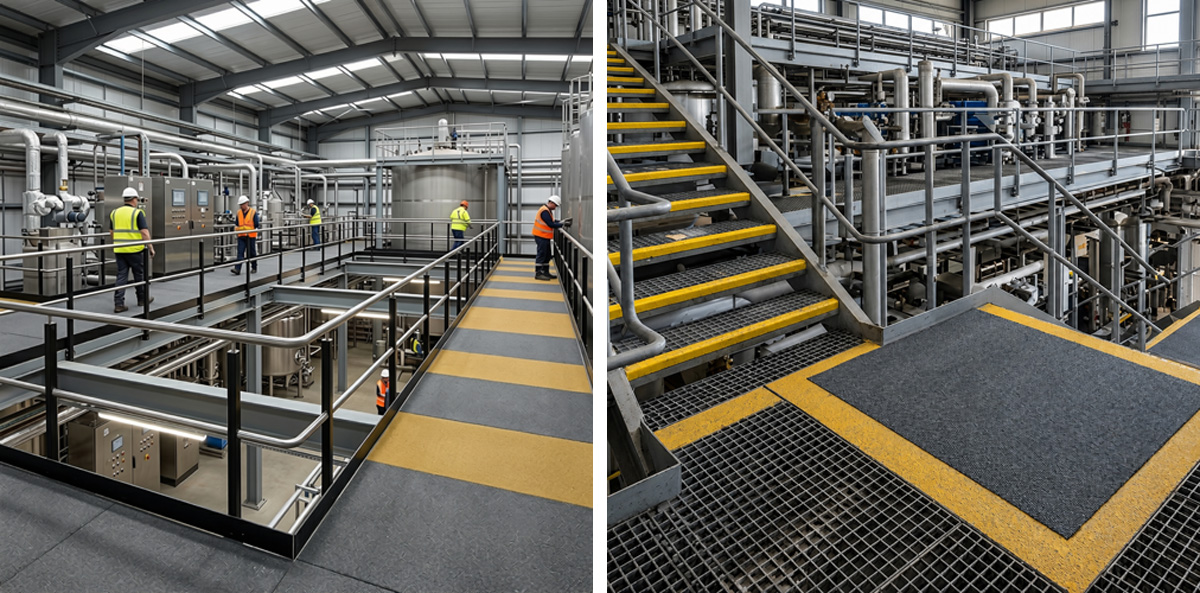

| Anti-Slip FRP Pultruded Plate used as Platform Decking in a Chemical Processing Plant | 2 FRP Anti-Slip Flat Plate for Stair Treads & Platform Landings |
 | |

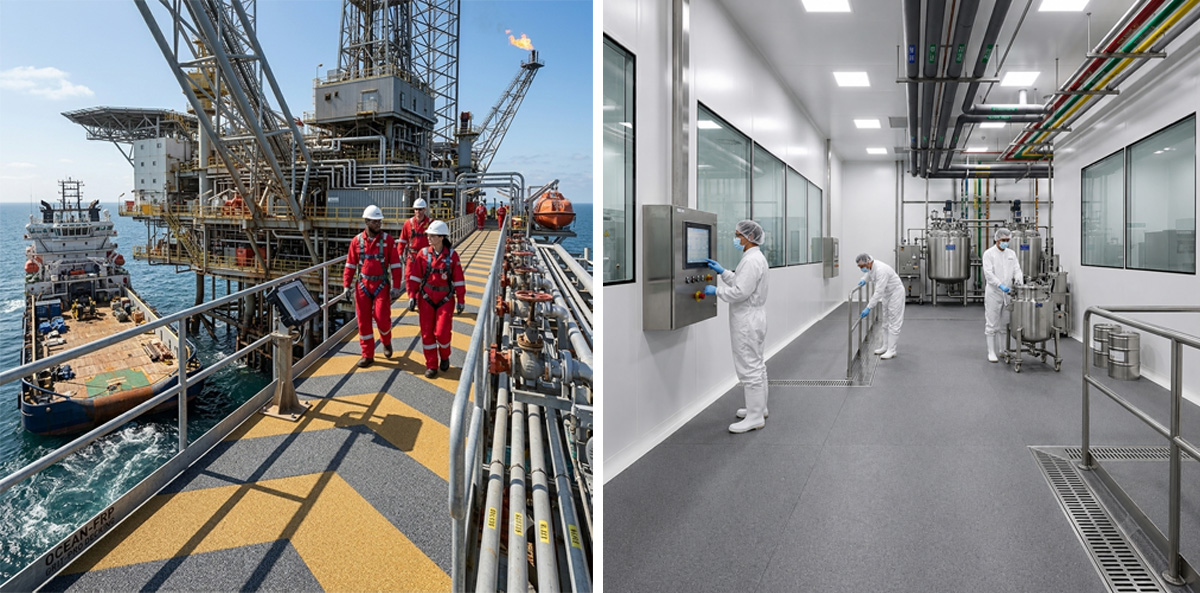

| Marine-Grade FRP Flat Sheet Overlays for Offshore Platform Walkways | FRP Pultruded Panels for Food & Chemical Plants |
