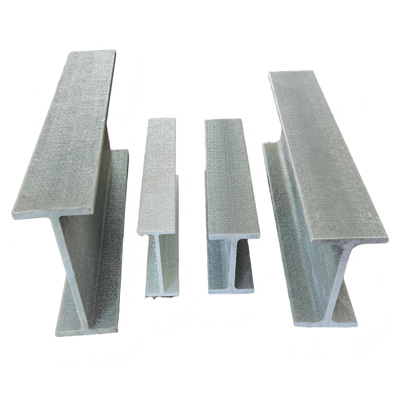

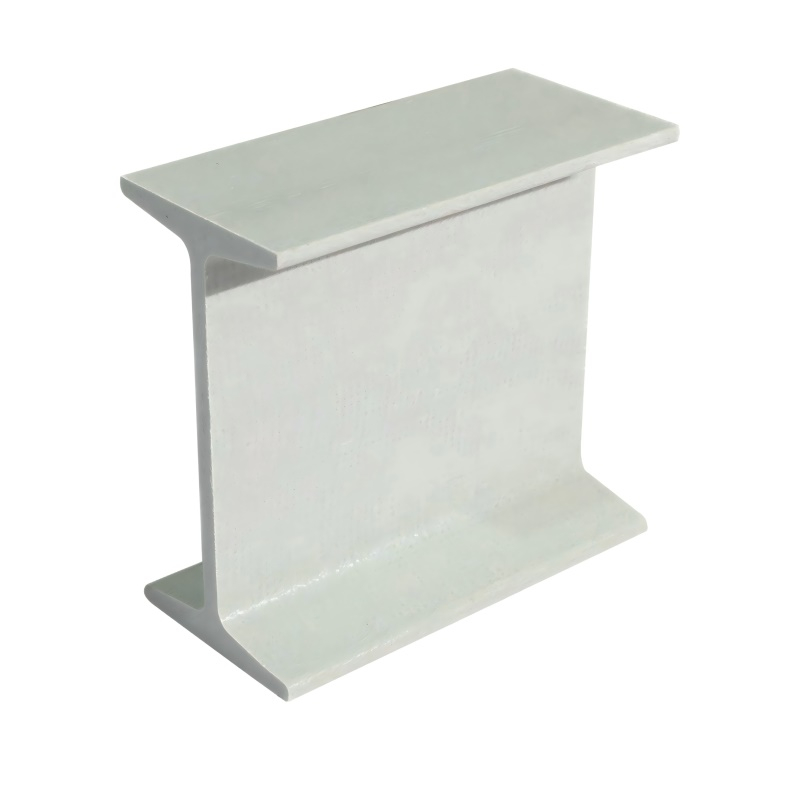

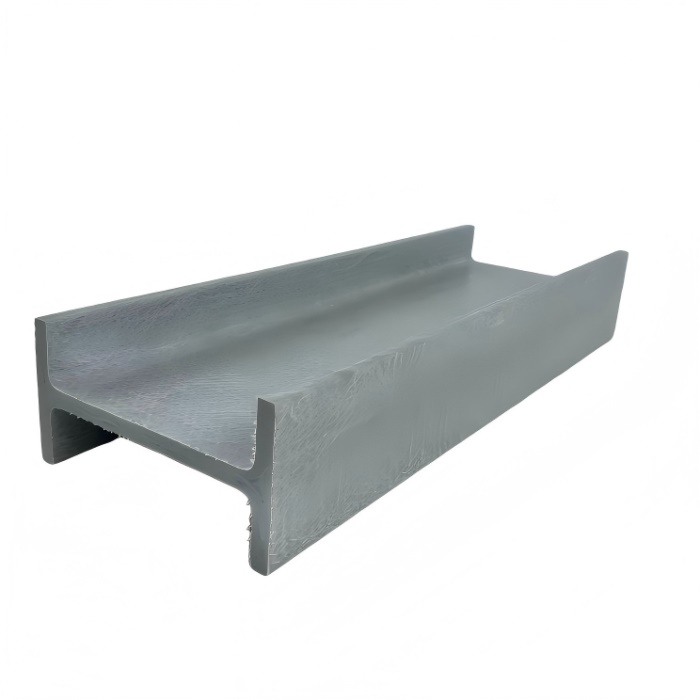

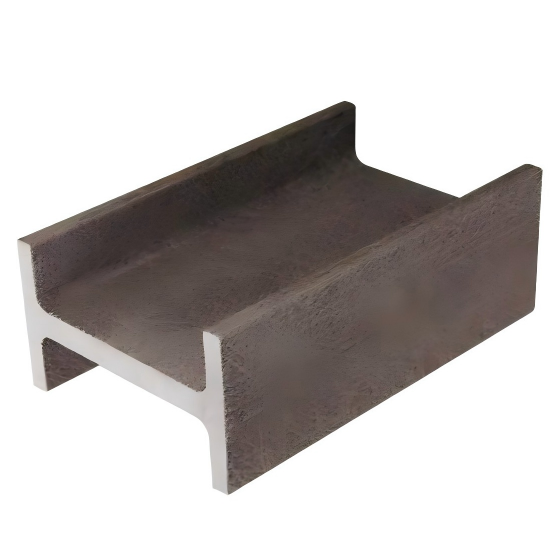

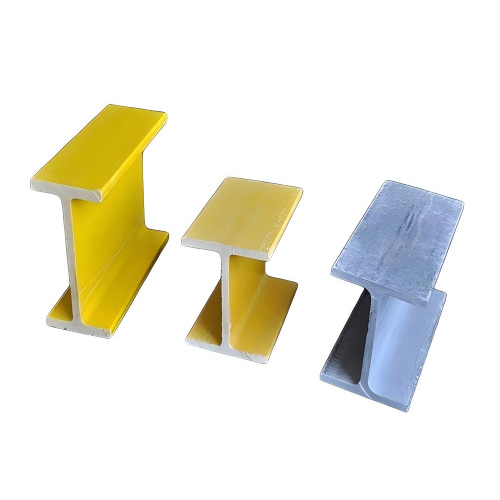

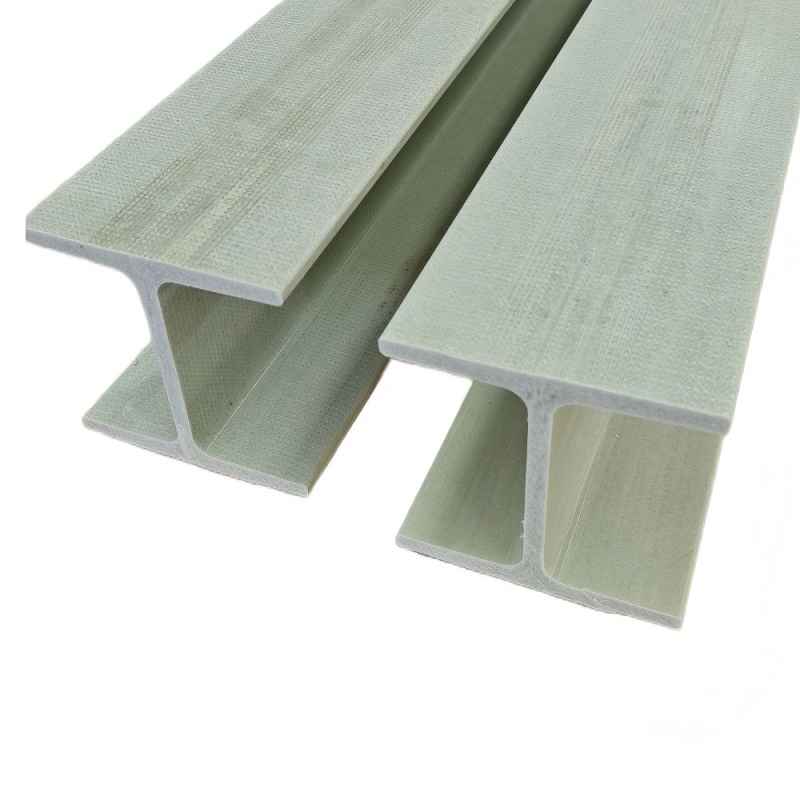

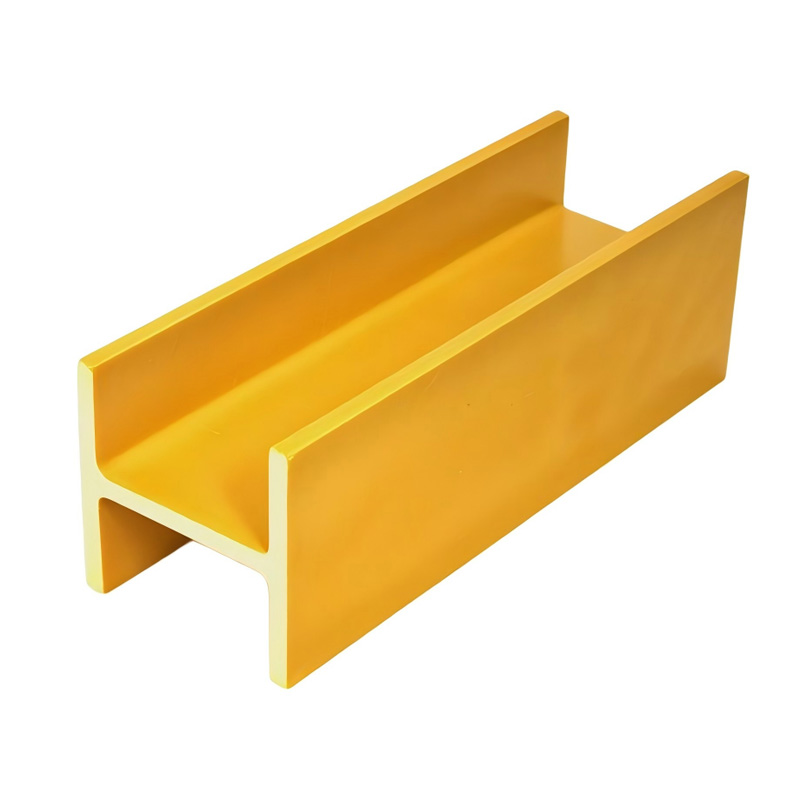

Pultruded FRP H Beams are engineered by continuously pulling fiberglass reinforcements through a thermosetting resin system and a heated die, producing a precisely shaped H-profile with exceptional mechanical properties and dimensional consistency.
Compared with traditional steel beams, FRP H Beams offer significant weight savings while maintaining excellent structural strength. They are resistant to corrosion, chemicals, moisture, and UV exposure, making them well suited for demanding applications where long service life and low maintenance are essential.
Features & Characteristics
High Load-Bearing Capacity
Designed for heavy structural applications requiring superior strength and stiffness.
Excellent Strength-to-Weight Ratio
Weighs significantly less than steel while maintaining outstanding structural performance.
Superior Corrosion Resistance
Resistant to acids, alkalis, salts, seawater, and aggressive chemicals.
Lightweight & Easy Installation
Easy to transport, fabricate, and install, reducing labor and installation costs.
Electrical & Thermal Insulation
Non-conductive, non-magnetic, and thermally insulating for enhanced safety.
UV & Weather Resistant
Suitable for long-term outdoor exposure with excellent weather resistance.
Low Maintenance
Requires no painting, galvanizing, or routine anti-corrosion treatment.
Long Service Life
Delivers reliable structural performance with minimal maintenance for decades.
Specifications
Item | Specification |
Technique | Pultrusion Process |
Surface Treatment | Flat Smooth |
Resin Type | Type V(Vinyl Ester), Type I(Isophthalic), Type O(Orthophthalic) |
Surface Material | Polyester mat, Needled mat, Continuous strand mat, Composite mat |
Color | Yellow, grey, green,orange,etc |
Other Fillings | Customized |
Dimensions & Weight

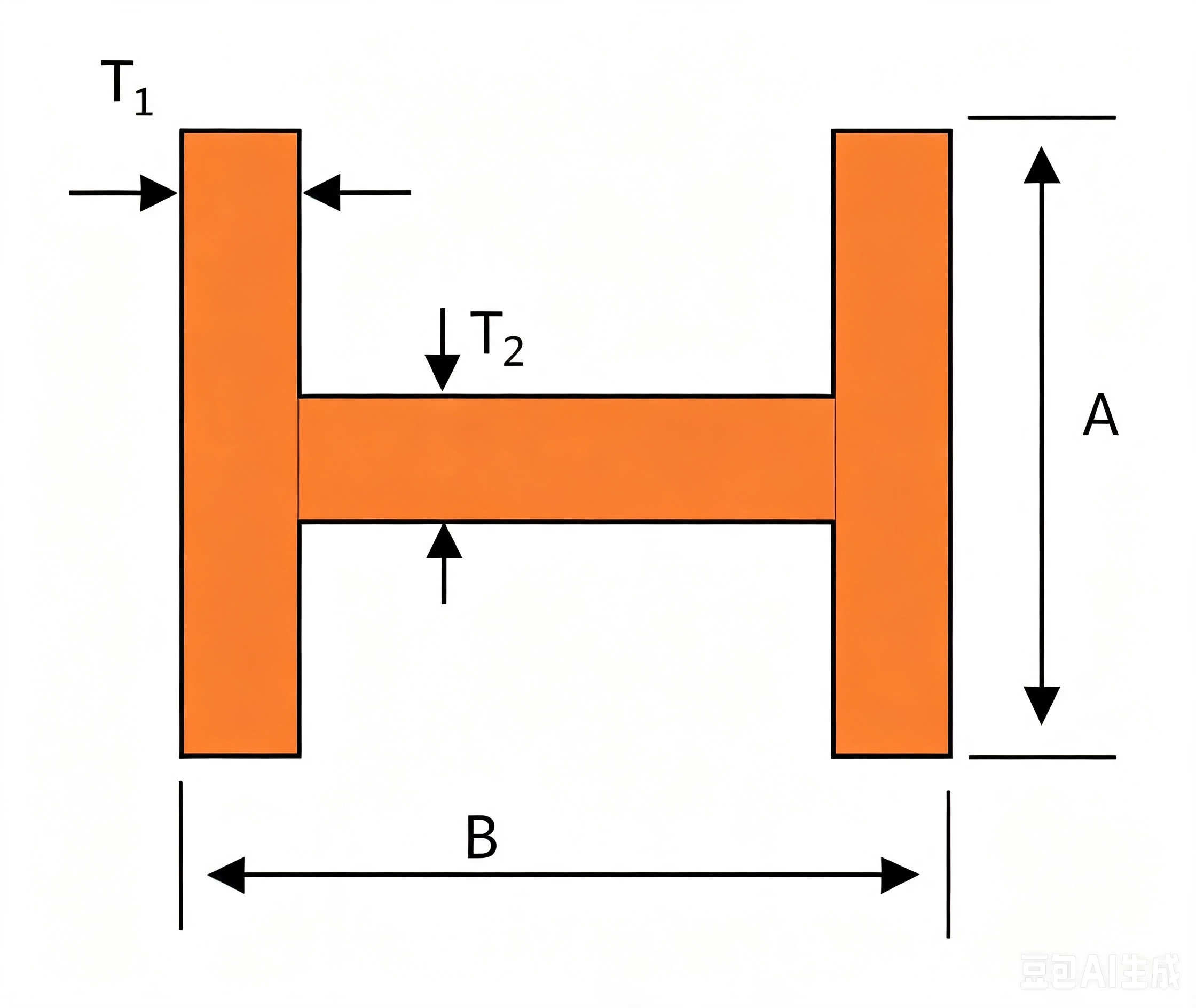

Angle Section | Beam H | Dimension(mm) A*B*T1*T2 | Weight Kg/m |
| HB 100 | 100*100*6.35*6.35 | 3.65 |
HB 140 | 140*140*10*10 | 7.60 | |
HB 152A | 152*152*6.35*6.35 | 5.20 | |
HB 152B | 152*152*9.5*9.5 | 7.82 | |
HB 203 | 203*203*12.7*12.7 | 14.60 | |
HB 254 | 254*254*10*10 | 13.70 |
Project Applications

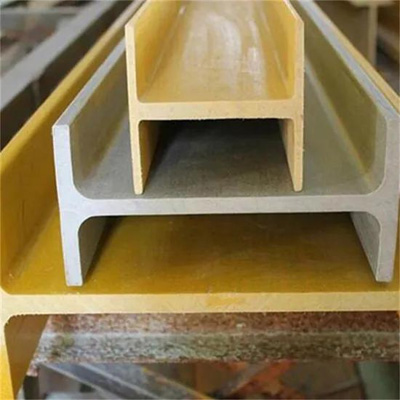

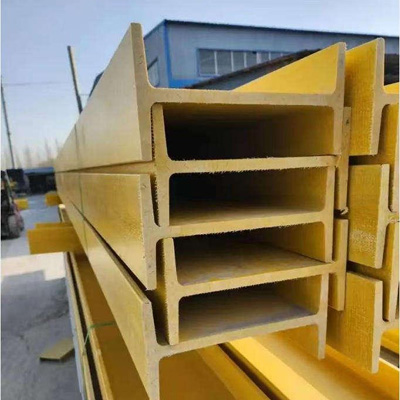

Fiberglass H beams used for fiberglass reinforced plastic structure support, stairs, walkways, grating components, structural support beams, refrigerated trucks and platform floor support, bridges and so on, with high strength, corrosion resistance, insulation, anti-aging, maintenance-free, good bearing capacity and other excellent features.
 |  |

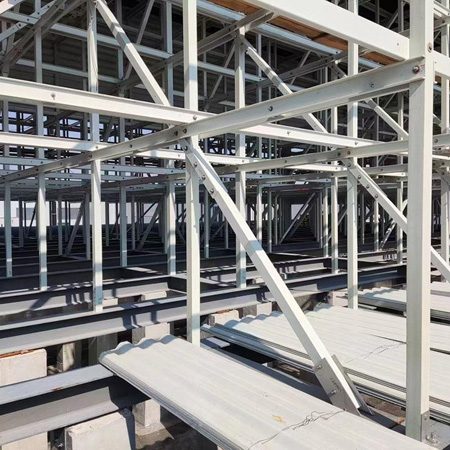

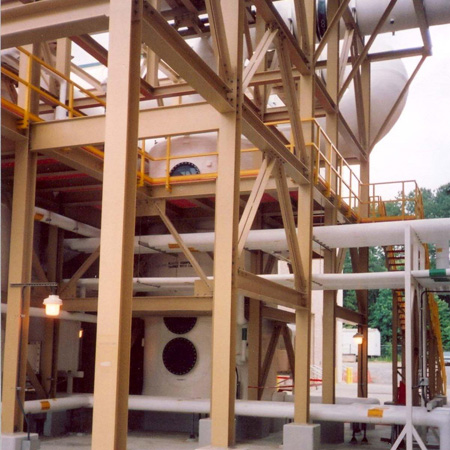

| Chemical Processing Plants | Cooling Towers & Power Plants |
 |  |

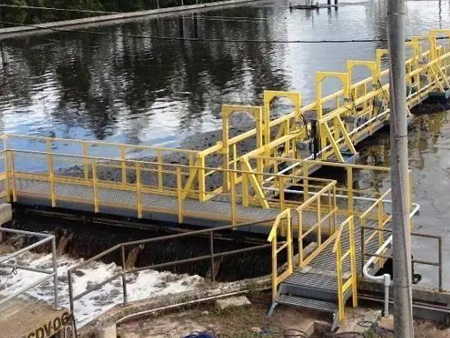

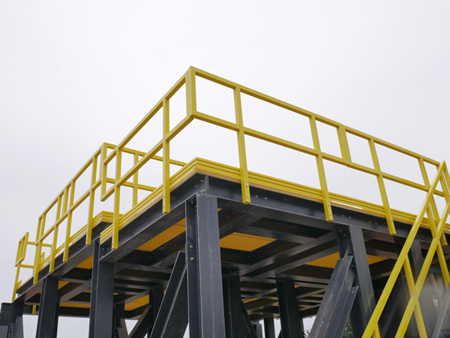

Industrial Platforms & Structural Frames | Wastewater Treatment Facilities |
