Rod

FRP Pultruded Rods are lightweight, high-strength solid profiles manufactured through the pultrusion process. Available in Round Rod and Square Rod forms, they provide excellent corrosion resistance, electrical insulation, and dimensional stability for industrial, electrical, marine, and structural applications.

Availability:



Inquire

FRP Pultruded Rods are produced by continuously pulling fiberglass reinforcements through a thermosetting resin system and a heated die to create solid rods with consistent dimensions and reliable mechanical properties.

Compared with metal rods, FRP rods are significantly lighter, corrosion-resistant, electrically non-conductive, and require minimal maintenance. They are widely used as insulating supports, structural connectors, spacer bars, equipment components, and reinforcement elements in harsh industrial environments.

Features & Characteristics

High Strength-to-Weight Ratio
Excellent Corrosion Resistance
Electrical Insulation
Non-Magnetic
UV & Weather Resistance
Lightweight & Easy Fabrication
Low Maintenance
Long Service Life

Specifications

Item	Specification
Material	ECR Glass Fiber + Resin (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH)
Surface Treatment	Smooth
Technique	Pultruded
Size	can be customized (pls check detail as below form)
Type	high strength and flexible fiberglass reinforcing FRP pole fiberglass fishing rods

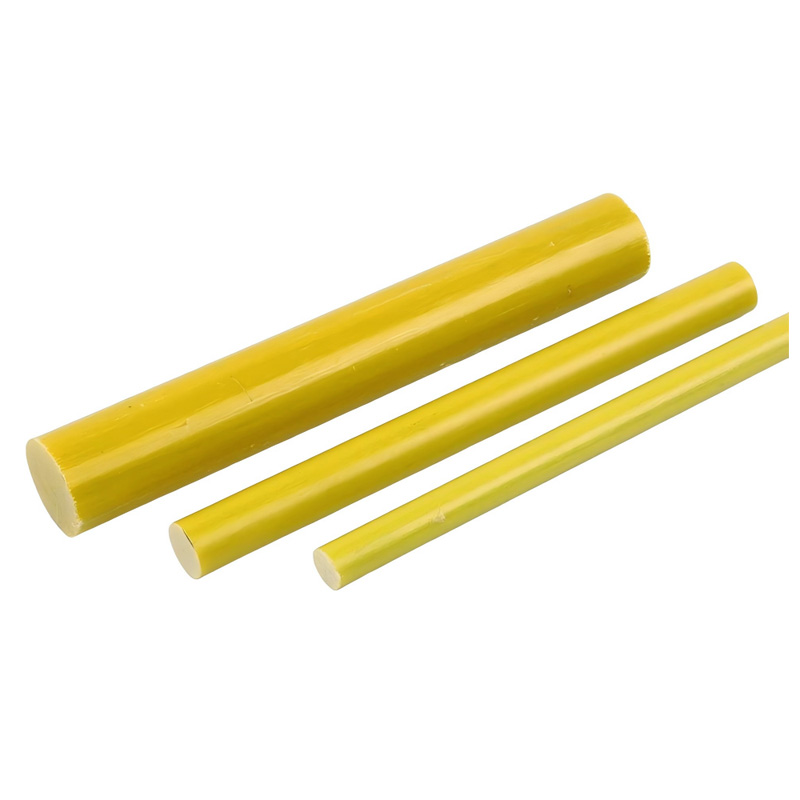

Color	Yellow, Orange, Blue, Green, Grey, etc. can be customized
Shape	Round, Square

Dimensions & Weight

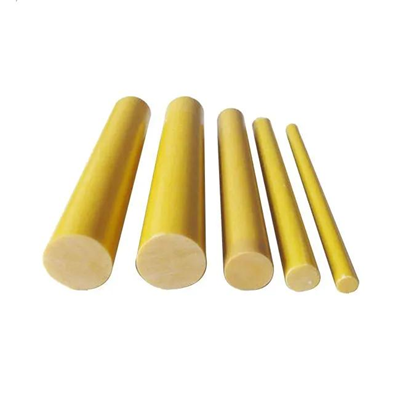

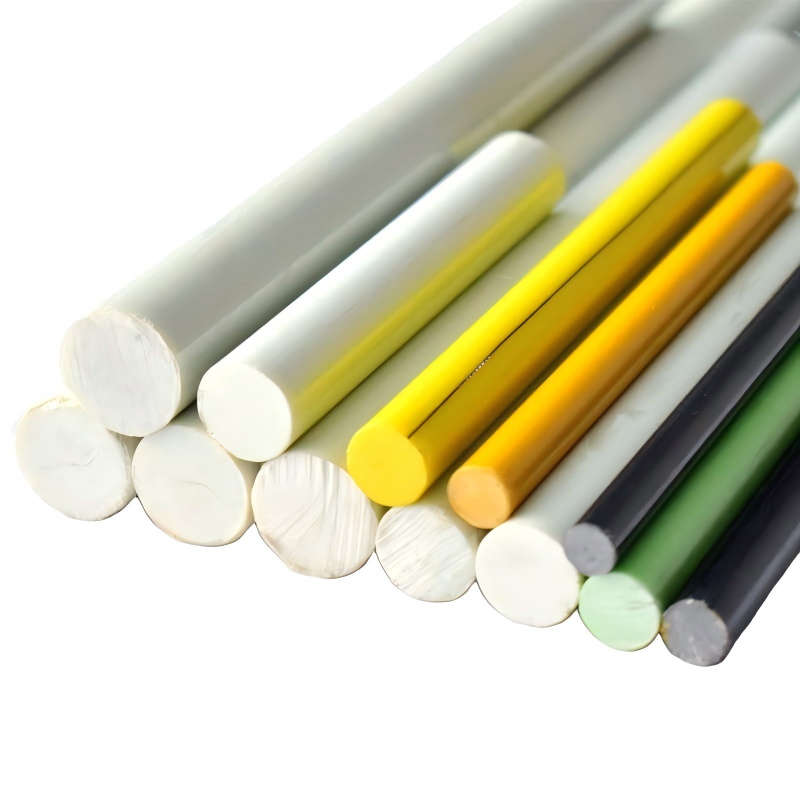

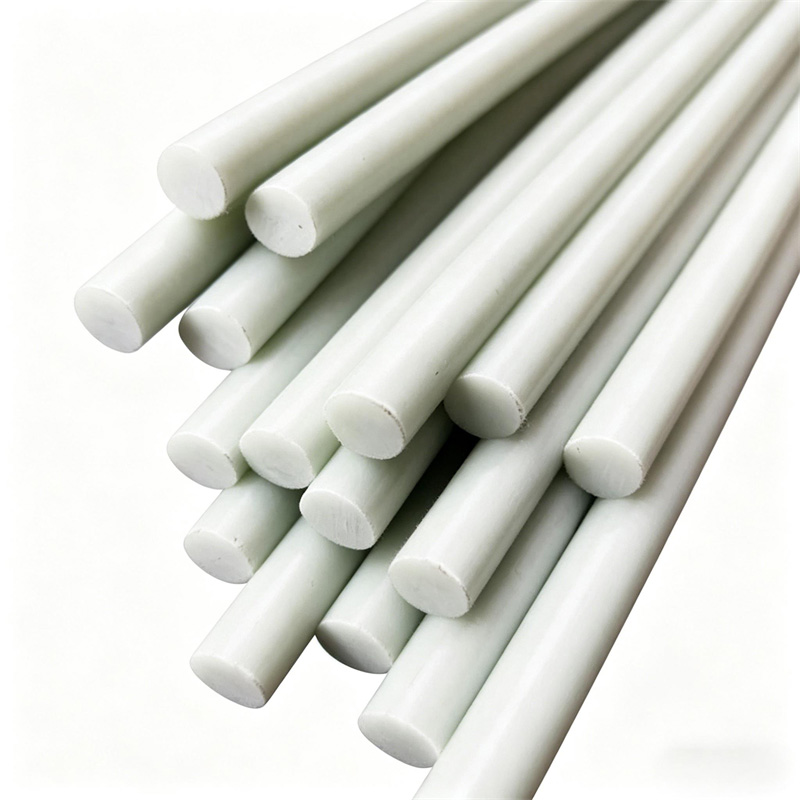

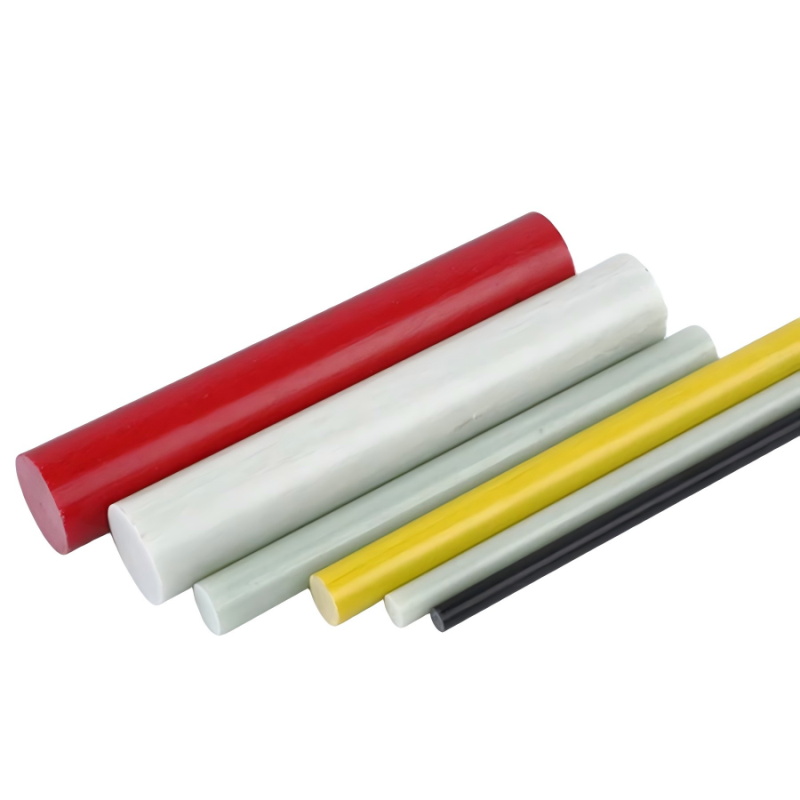

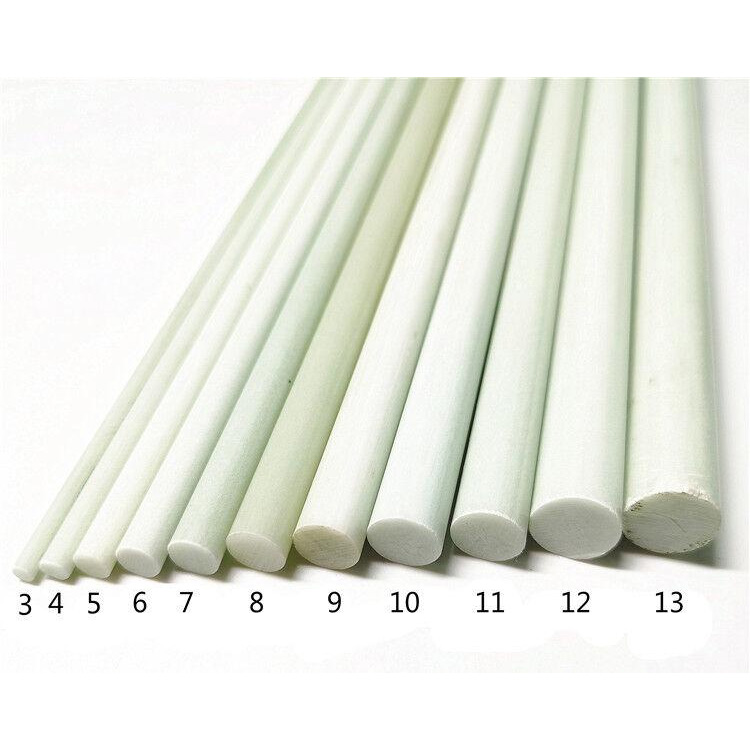

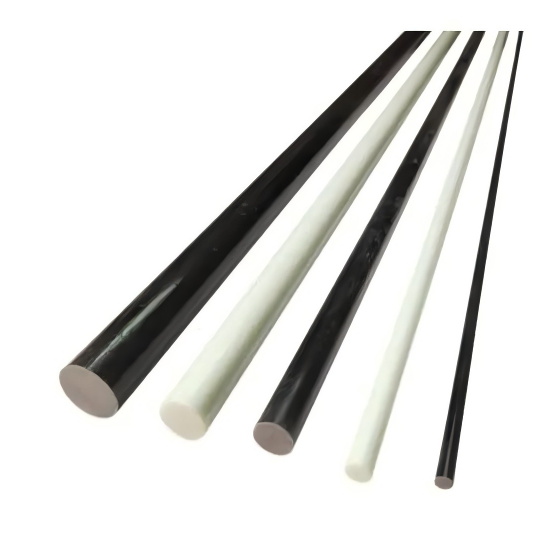

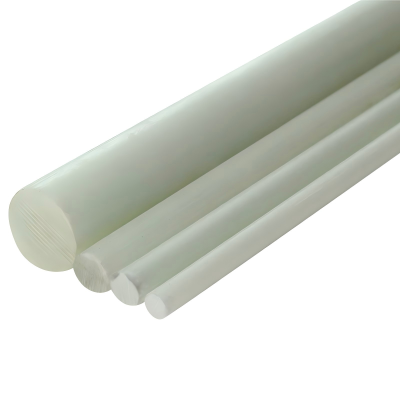

Rod Section	Solid Round Rod	D (mm)
	SRR60	6.0
	SRR95	9.5
	SRR127	12.7
	SRR254	25.4
	SRR328	31.8
	SRR380	38
	SRR42	4.2
	SRR80	8.0
	SRR16	16
	SRR19	19
	SRR20	20
	SRR22	22

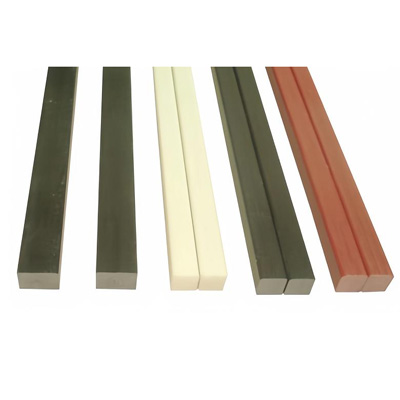

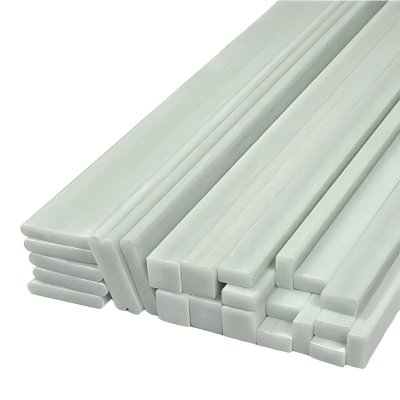

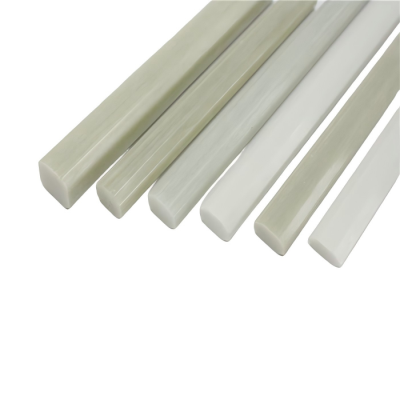

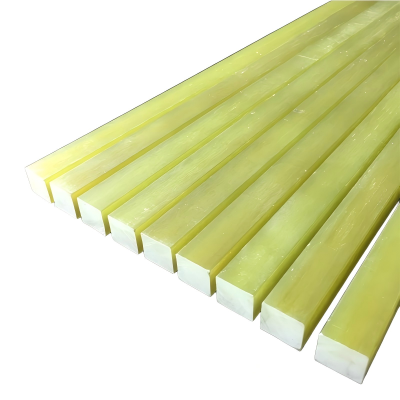

Rod Section	Solid Square Rod	Size A×B (mm)
	SSR19	19*19
	SSR20	20*20
	SSR25	25*25
	SSR32	32*32
	SSR38	38*38
	SSR44	44*44
	SSR50	50*50
	SSR64	64*64
	SSR76	76*76
	SSR12.7	12.7*12.7
