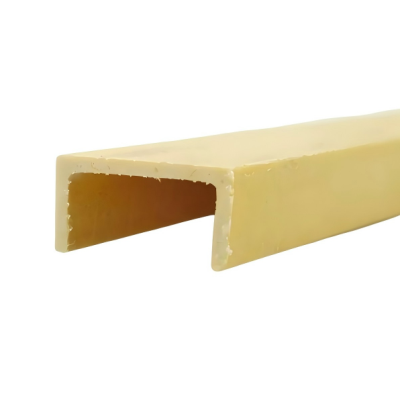

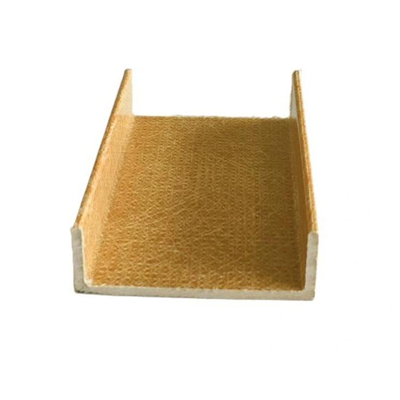

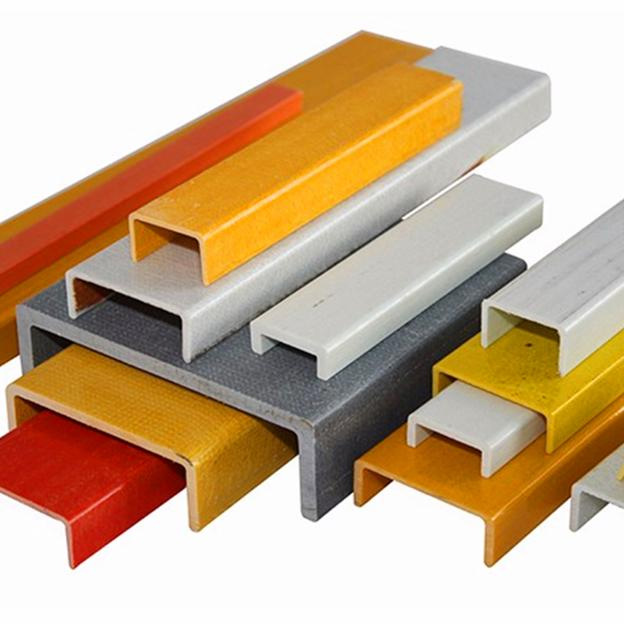

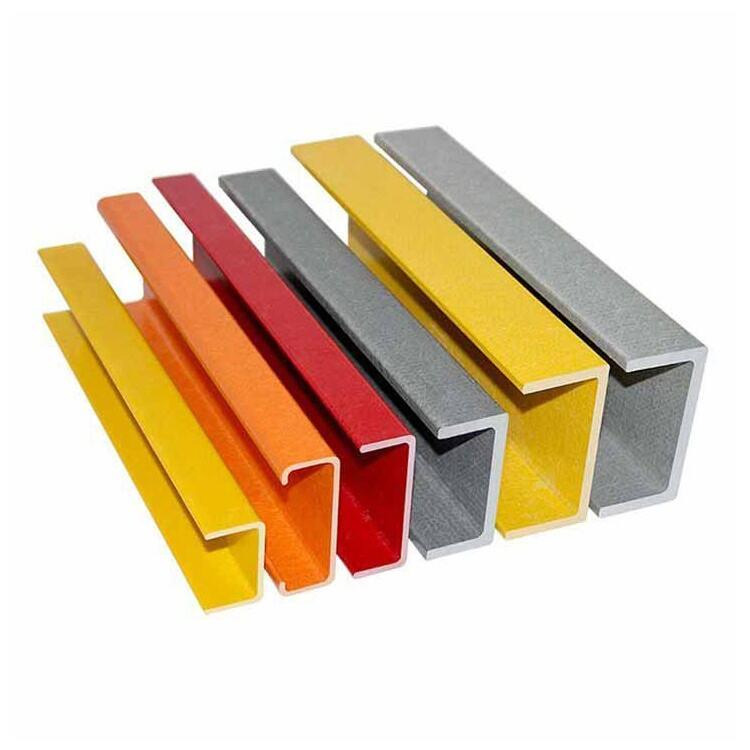

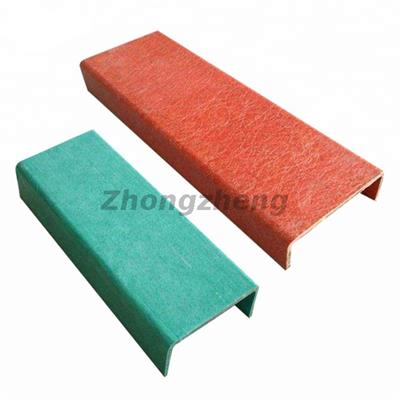

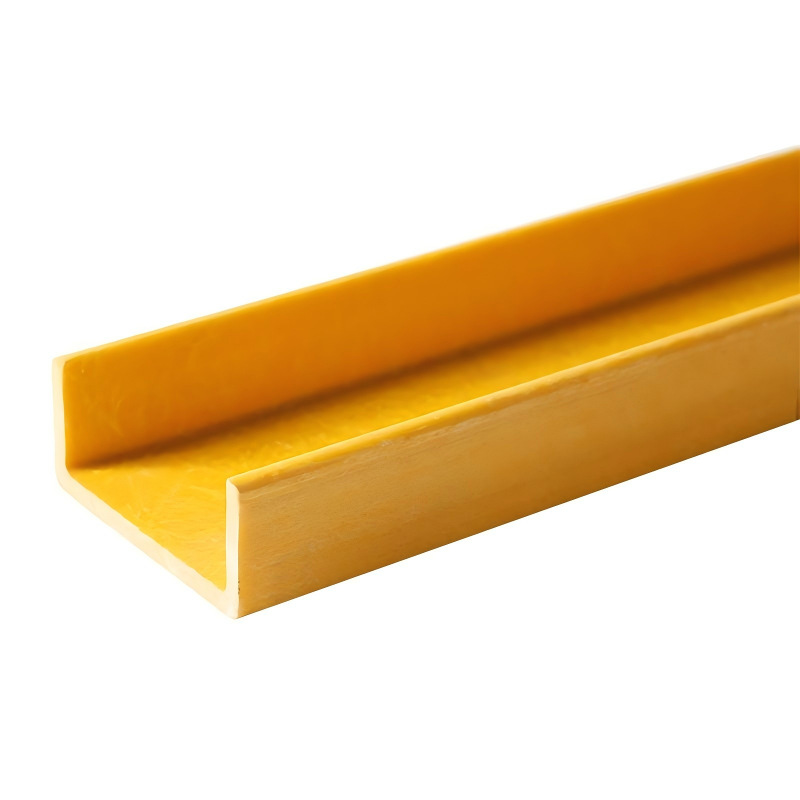

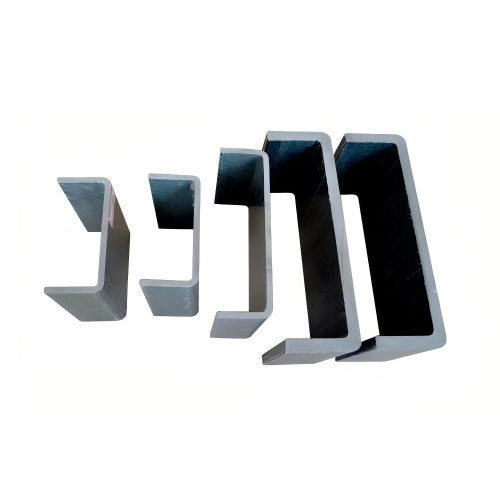

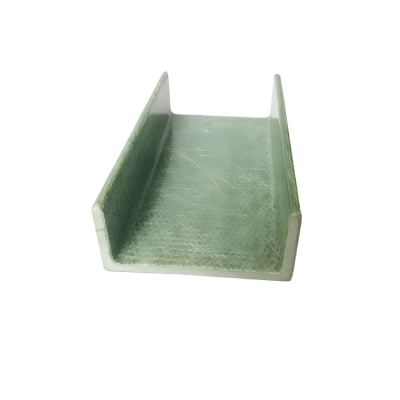

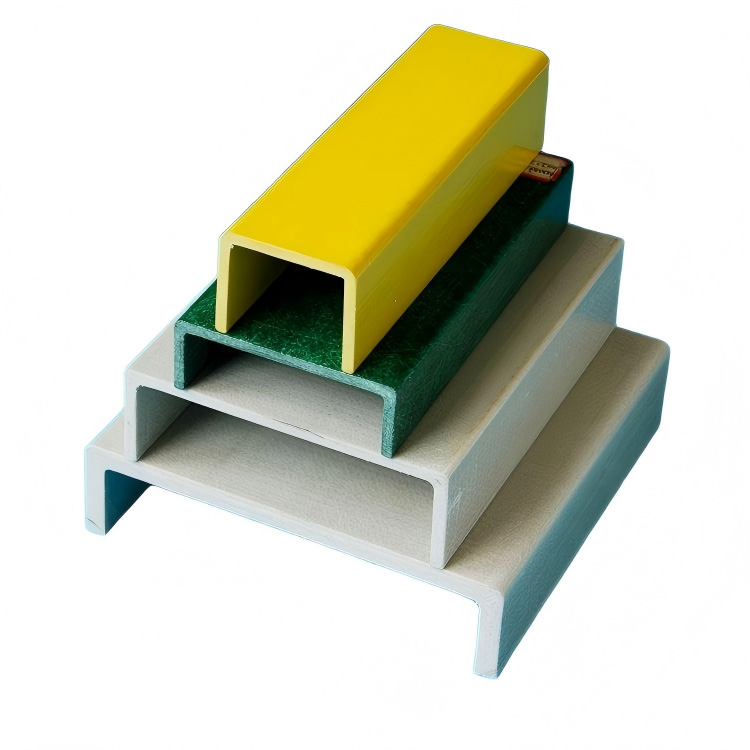

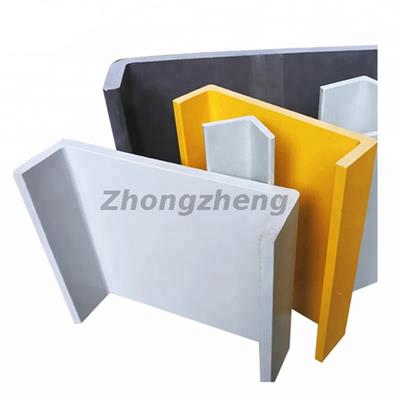

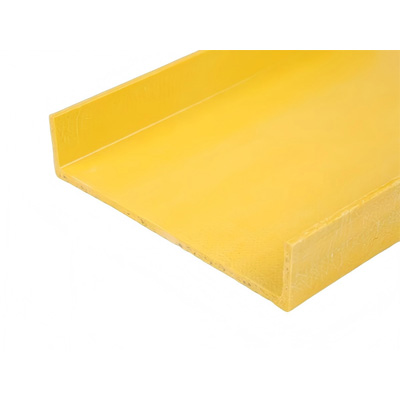

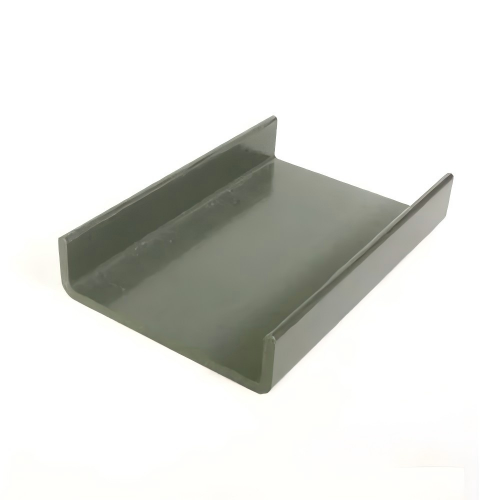

FRP Pultruded Channels are produced by continuously pulling fiberglass reinforcements through a thermosetting resin system and a heated die to form a precise C-shaped profile. This manufacturing process ensures consistent quality, excellent mechanical strength, and outstanding dimensional stability.
Compared with traditional metal channels, FRP Channels provide exceptional resistance to corrosion, chemicals, moisture, and UV exposure while requiring minimal maintenance. Their lightweight design also reduces transportation costs and simplifies installation, making them suitable for a wide range of structural and industrial applications.
Features & Characteristics
Excellent Strength-to-Weight Ratio
Delivers high structural performance while being significantly lighter than steel.
Superior Corrosion Resistance
Resistant to acids, alkalis, salts, seawater, and harsh chemicals.
Lightweight & Easy Installation
Easy to transport, handle, cut, drill, and assemble using standard tools.
High Dimensional Stability
Maintains consistent dimensions with minimal warping or deformation.
Electrical & Thermal Insulation
Non-conductive and non-magnetic, providing enhanced safety in electrical environments.
Weather & UV Resistance
Suitable for long-term outdoor applications with excellent resistance to sunlight and weathering.
Low Maintenance
No painting, galvanizing, or anti-corrosion treatment required.
Long Service Life
Designed to deliver reliable performance in aggressive industrial environments for decades.
Specifications
Item | Specification |
Technique | Pultrusion Process |
Surface Treatment | Smoonth paint or customized |
Material Composition | Fibgerglass roving, fibgerglass mat, resin, filling |
Resin Type | Type V(Vinyl Ester), Type I(Isophthalic), Type O(Orthophthalic) |
Surface Material | Polyester mat, Needled mat, Continuous strand mat, Composite mat |

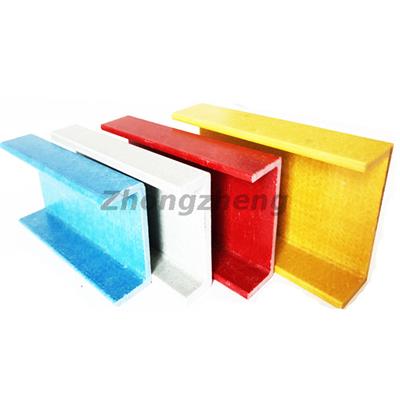

Color | Black , white , red , green , yellow , blue , grey or customized |
Other Fillings | Customized |

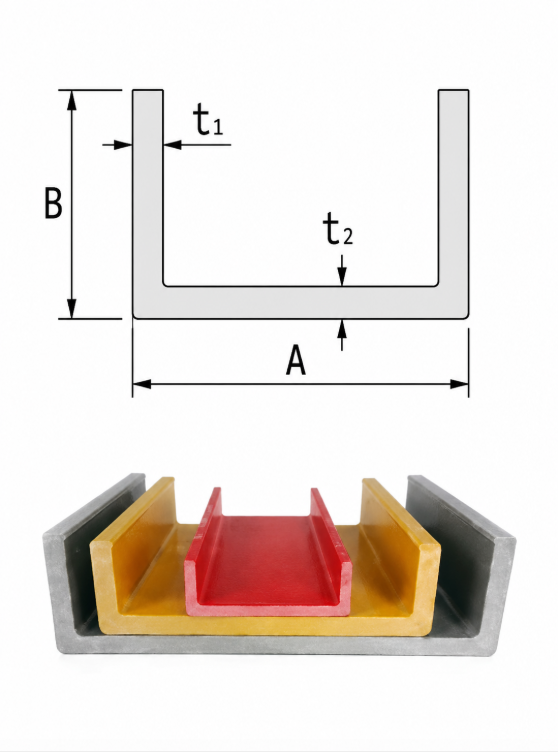

Dimensions & Weight
Angle Section | Specification Channel | Dimension(mm) A*B*T1*T2 | Weight Kg/m |
| C50.5 | 50.5*36*7*6 | 1.40 |
C76 | 76*38*6.4*6.4 | 1.71 | |
C102A | 102*35*4.8*4.8 | 1.48 | |
C102B | 102*35*6*6 | 1.83 | |
C152A | 152*42*6.4*6.4 | 2.74 | |
C152B | 152*42*9.5*9.5 | 3.95 | |
C200 | 200*60*10*10 | 5.70 | |
C203 | 203*56*9.5*9.5 | 5.34 | |
C254 | 254*70*12.7*12.7 | 8.90 |
Mechanical & Physical Properties
Performance Table
Property | Direction | Unit | Test method | Profiles | Rods |
Tensile Strength | (LW) | MPa | ASTM D638/GB1447-83 | 210-350 | 500-700 |
(CW) | MPa | 30-60 | |||
Tensile Strength | (LW) | GPa | ASTM D638/GB1447-83 | 15-28 | 32-42 |
(CW) | GPa | 5-7 | |||
Flexural Strength | (LW) | MPa | ASTM D790/GB1449-83 | 210-390 | 600-900 |
(CW) | MPa | 60-100 | |||
Flexural Modulus | (LW) | GPa | ASTM D790/GB1449-83 | 15-24 | 32-42 |
(CW) | GPa | 5-7 | |||
Compressive Strength | (LW) | MPa | ASTM D695/GB1448-83 | 220-350 | 400-450 |
(CW) | MPa | 60-100 | |||
Compressive Modulus | (LW) | GPa | ASTM D695/GB1448-83 | 16-23 | |
(CW) | GPa | 5-10 | |||
Short beam Shearing Strength | (LW) | MPa | ASTM D2344 | 25-35 | |
Breaks Shearing Strength | (PF) | MPa | ASTM D732 | 38-50 | 38-55 |
Impact Strength | (LW) | KJ/mm2 | ASTM D256 | 150-250 | |
Poisson Ratio | (LW) | mm/mm | ASTM D3039 | 0.3-0.4 | |
(CW) | mm/mm | 0.15-0.25 | |||
Barcol Hardness | -- | ASTM D2583 | 40-50 | 50 | |
Relative Density | -- | ASTM D792 | 1.7-1.9 | 1.85-1.95 | |
Coefficient of Thermal expansion | (LW) | 10-6m/m/℃ | ASTM D696/GB2572-82 | 4.5-8 | 3.0 |
Breakdown Strength | (PF) | KV/mm | ASTM D149/GB1408-78 | 7-8 | |
(LW) | KV/mm | 1.4-1.6 |
Project Applications
 |  |  |

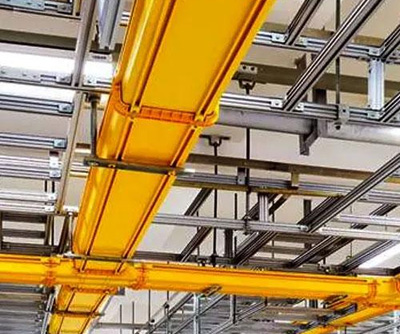

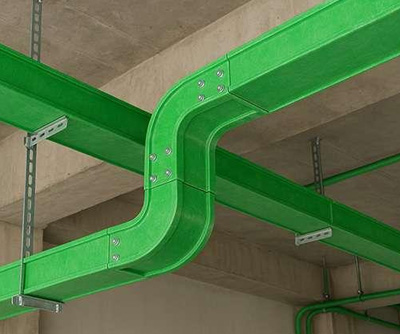

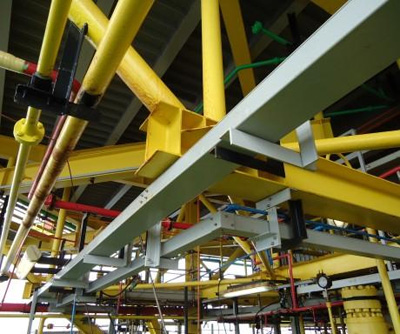

| Cable Tray Support Systems | Cable Tray Support Systems | Cable Tray Support Systems |
 |  |  |

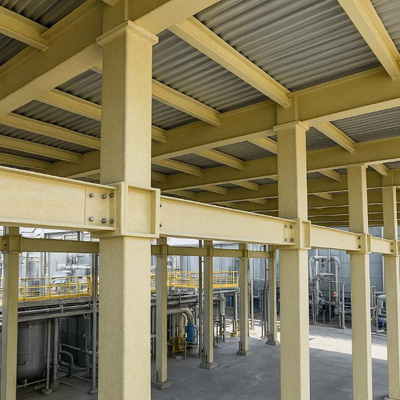

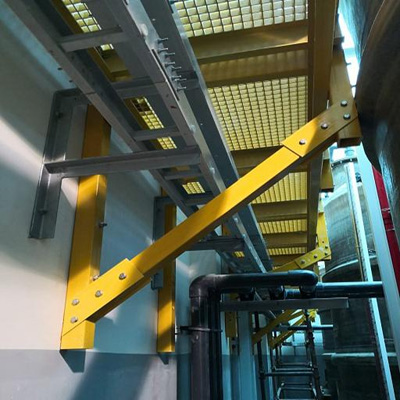

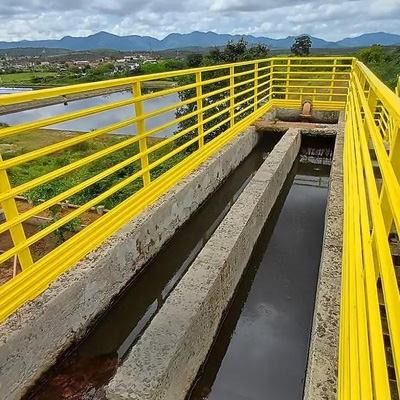

Chemical Plants & Marine Structures | Equipment Frames & Industrial Structure | Walkways & Maintenance Platforms |
