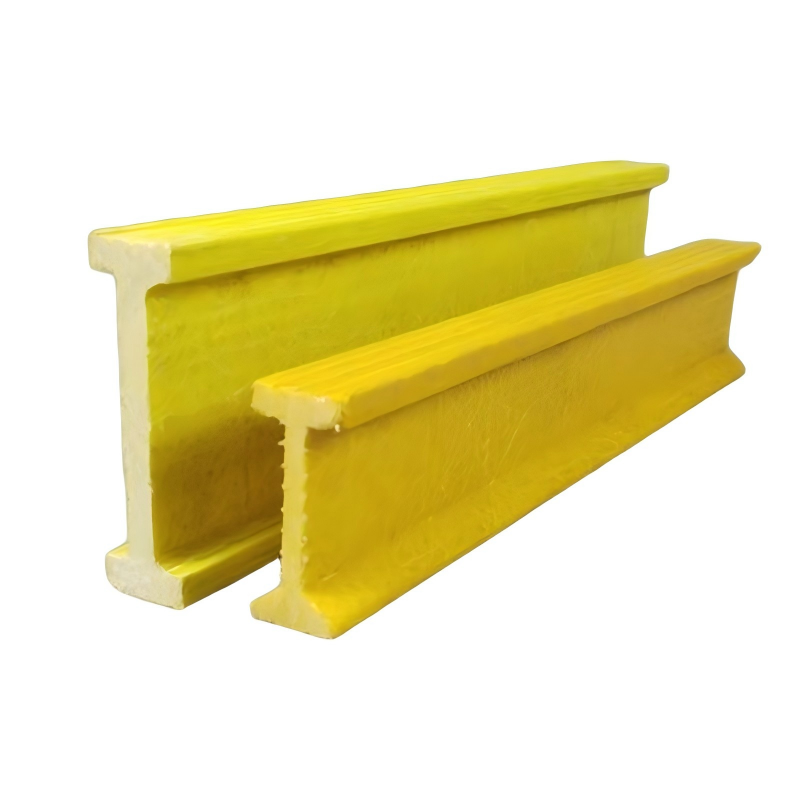

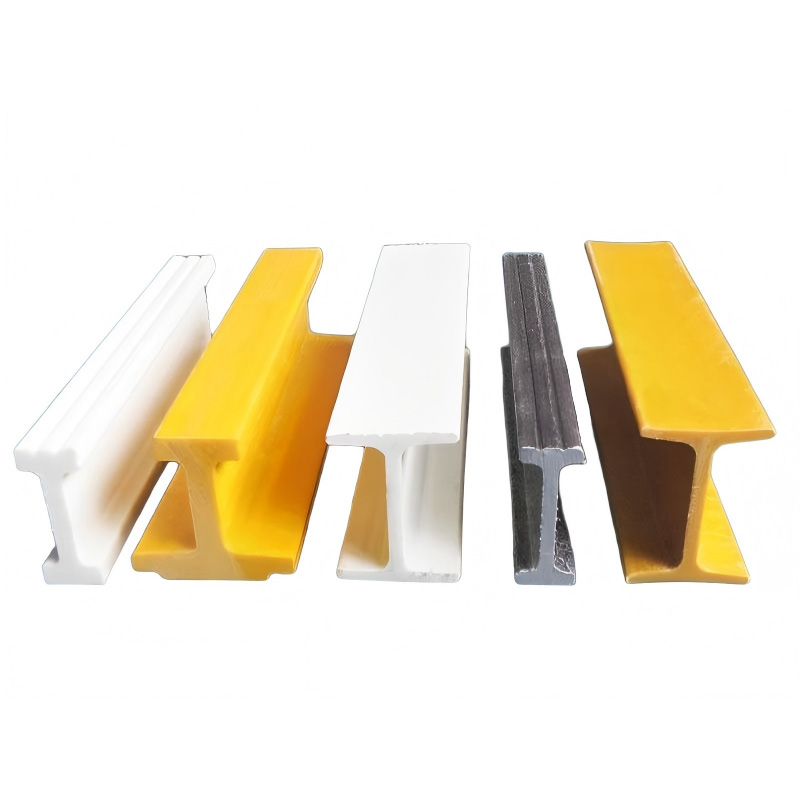

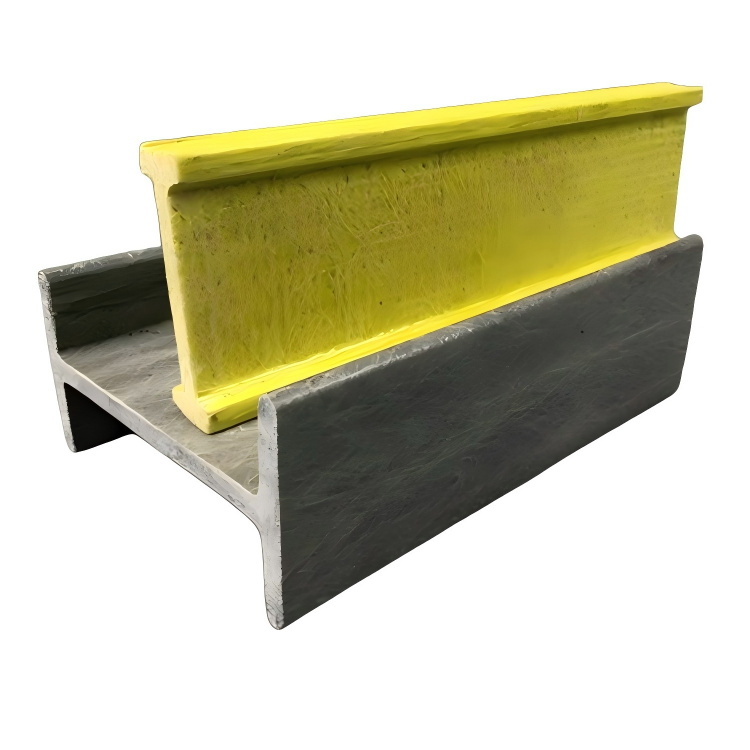

Pultruded FRP I Beams are manufactured by continuously pulling fiberglass reinforcements through a thermosetting resin system and a heated die, producing a precision-engineered I-shaped profile with consistent dimensions and outstanding mechanical properties.
Compared with conventional steel beams, FRP I Beams offer significant weight savings while maintaining excellent structural strength. Their superior resistance to corrosion, chemicals, moisture, and UV exposure makes them ideal for applications in chemical plants, wastewater treatment facilities, marine structures, and other harsh environments where long service life and minimal maintenance are required.
Features & Characteristics
High Strength-to-Weight Ratio
Provides outstanding structural performance while weighing significantly less than steel.
Excellent Corrosion Resistance
Resistant to acids, alkalis, salts, seawater, and aggressive chemicals.
Lightweight & Easy Installation
Easy to transport, fabricate, and install, reducing labor and installation costs.
Excellent Structural Stability
Offers high stiffness and dimensional stability for long-span structural applications.
Electrical & Thermal Insulation
Non-conductive, non-magnetic, and thermally insulating for enhanced operational safety.
Weather & UV Resistance
Performs reliably in outdoor environments with excellent resistance to UV radiation and weathering.
Low Maintenance
No painting, galvanizing, or anti-corrosion treatment required.
Long Service Life
Delivers dependable structural performance with minimal maintenance over an extended service life.
Specifications
Item | Specification |
Technique | Pultrusion Process |
Surface Treatment | Flat Smooth |
Resin Type | Type V(Vinyl Ester), Type I(Isophthalic), Type O(Orthophthalic) |
Surface Material | Polyester mat, Needled mat, Continuous strand mat, Composite mat |
Color | Yellow, grey, green,orange,etc |
Other Fillings | Customized |
Dimensions & Weight

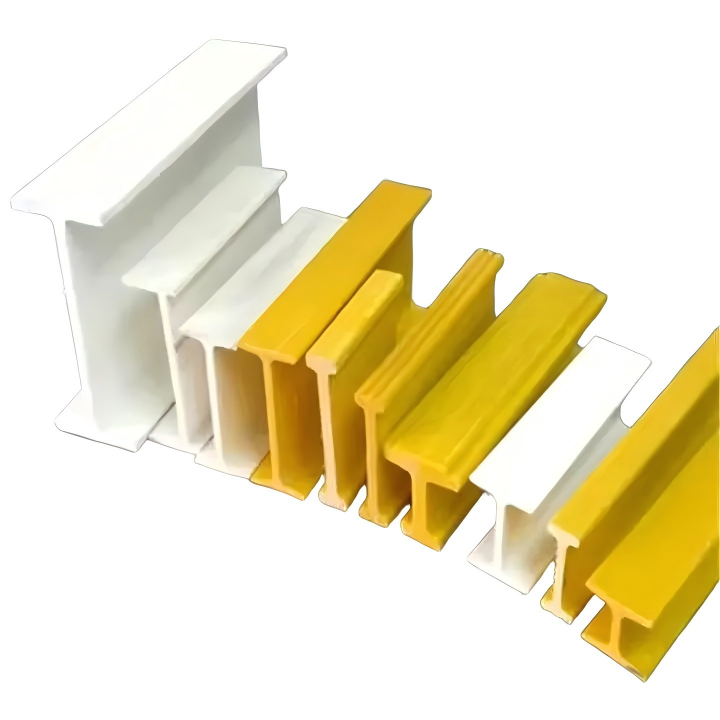

Angle Section | Beam I | Dimension(mm) A*B*T1*T2 | Weight Kg/m |
| HB 100 | 100*100*6.35*6.35 | 3.65 |
HB 140 | 140*140*10*10 | 7.60 | |
HB 152A | 152*152*6.35*6.35 | 5.20 | |
HB 152B | 152*152*9.5*9.5 | 7.82 | |
HB 203 | 203*203*12.7*12.7 | 14.60 | |
HB 254 | 254*254*10*10 | 13.70 |
Project Applications
Fiberglass I beams used for fiberglass reinforced plastic structure support, stairs, walkways, grating components, structural support beams, refrigerated trucks and platform floor support, bridges and so on, with high strength, corrosion resistance, insulation, anti-aging, maintenance-free, good bearing capacity and other excellent features.
 |  |
| Chemical Processing Plants | Cooling Towers & Power Plants |
 |  |
Industrial Platforms & Structural Frames | Wastewater Treatment Facilities |
